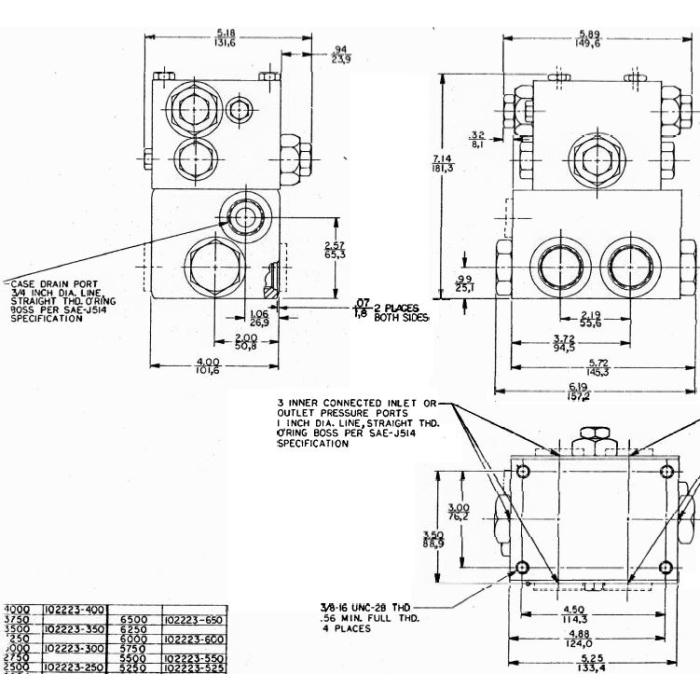

Hydrostatic Hot Oil Shuttle Valves
Description & Features
| Group Description | Eaton hot oil shuttle includes (2) high pressure reliefs, shuttle valve and low pressure relief |
| Flow Rating | up to 88 GPM |
| Maximum Operating Pressure | up to 6500 PSI |
| Recommended Filtration | ISO 4406 Cleanliness Level 18/13 or cleaner |
| System Temperature | 180°F Normal Continous Limit, 220°F Maximum Intermittent |
Products
| Model Number | Ports | High Pressure Reliefs | Low Pressure Relief | Price | Action |
|---|---|---|---|---|---|
0102223-350 Shuttle Valve Block Manifold |
-16 SAE work port, -12 SAE drain |
3500 |
160 |
|
Product Questions & Answers (1)
Question by: Bobby R on Apr 16, 2025, 3:38 PM
Reckon this would work okay in a system where the oil temp spikes to 220 sometimes?
Answer by: Customer Support on Apr 18, 2025, 7:07 AM
These Eaton hot oil shuttle valves are okay for intermittent temps up to 220°F, so you should be good to go. Just keep in mind the normal continuous limit is 180°F.
