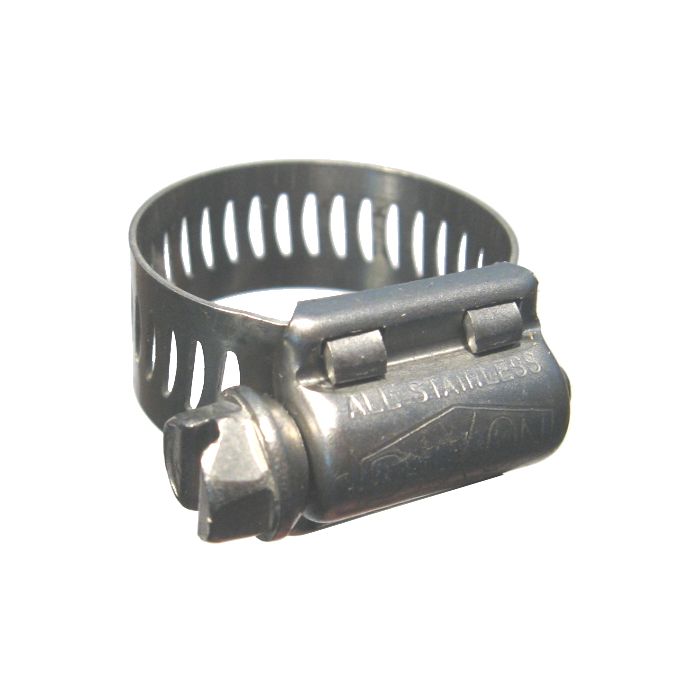

HSS Series Stainless Steel Worm Gear Clamps

Description & Features

Materials	SAE 300 series stainless steel band and housing with SAE 410 series stainless steel screw.
Max. Recommended Torque	30 in. lbs.
Tightening Method	Combination 5/16” hexagon and screwdriver slot.

Model Number	Width (in)	Minimum Diameter	Maximum Diameter
HSS12 HSS Series Worm Gear Clamp	0.50	0.6875	1.25
HSS16 HSS Series Worm Gear Clamp	0.50	0.8125	1.5
HSS20 HSS Series Worm Gear Clamp	0.50	0.8125	1.75
HSS32 HSS Series Worm Gear Clamp	0.50	1.5625	2.5
HSS10 HSS Series Worm Gear Clamp	0.50	0.5625	1.0625
HSS24 HSS Series Worm Gear Clamp	0.50	1.0625	2
HSS28 HSS Series Worm Gear Clamp	0.50	1.3125	2.25
HSS36 HSS Series Worm Gear Clamp	0.50	1.8125	2.75
HSS40 HSS Series Worm Gear Clamp	0.50	2.0625	3
HSS44 HSS Series Worm Gear Clamp	0.50	2.3125	3.25
HSS56 HSS Series Worm Gear Clamp	0.50	3.0625	4
HSS6 HSS Series Worm Gear Clamp	0.50	0.4375	0.7813
HSS72 HSS Series Worm Gear Clamp	0.50	1.875	5
HSS8 HSS Series Worm Gear Clamp	0.50	0.5	0.9063
