RFIK Series Mechanical Hydraulic Tester RFIK120-B-6 | FT10040-03

Ask A Question

Description & Features

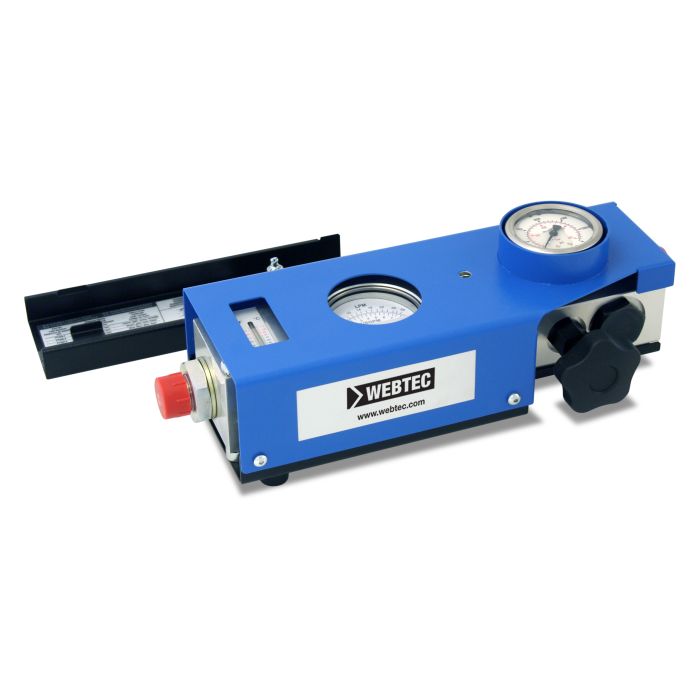

The WEBTEC RFIK Series Mechanical Hydraulic Tester RFIK120-B-6 is a robust solution for servicing and commissioning hydraulic circuits. Designed for precision, it accommodates a maximum flow of 120 L/min and operates efficiently at pressures up to 420 bar. The tester's accuracy is notable, with a flow accuracy of ±4% full scale and a pressure accuracy of ±1.6% full scale, ensuring reliable measurements. Constructed from durable materials such as aluminum, stainless steel, and brass, this tester is built to withstand demanding environments. Its temperature versatility is evident, operating within a fluid temperature range of 20 to 80°C and an ambient temperature range of -10 to 50°C.

The RFIK120-B-6 requires no external power supply, making it highly convenient for field use. Compatible with mineral oils to ISO 11158, it features 1" BSPP porting, enhancing its adaptability in various systems. With a net weight of 6.6 kg, this tester is portable yet sturdy, making it an essential tool for hydraulic maintenance professionals.

SKU: FT10040-03
Supplier Part Number (MPN): RFIK120-B-6

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
FT10040-03
Flow Accuracy
±4% Full Scale
Pressure Accuracy
±1.6% Full Scale
Temperature Accuracy
±2.5°C / ±5°F
Ambient Temperature
-10 to 50°C, 14 to 122°F
Body Materials
Aluminium
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
4 - 32
Flow Range (L/min)
10 - 120
Fluid Temperature Range
20 to 80°C, 68 to 176°F
Gross Weight
7.6 kg, 16.7 lbs
Internal Materials
Stainless Steel, Brass
Maximum Rated Flow
120 L/min, 32 US gpm
Max Rated Pressure
420 bar, 6000 psi
Net Weight
6.6 kg, 14.4 lbs
Porting
1” BSPP
Power Supply
No Power Required
Seals
NBR
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (1)

Question by: Randy A on Jan 16, 2026, 4:56 PM
How does the RFIK Series handle high-pressure environments?
Answer by: Customer Support on Jan 18, 2026, 1:01 PM
For hydraulic systems operating at high pressures, the RFIK120-B-6 is well-suited with its max pressure capacity of 420 bar or 6000 psi. This makes it ideal for demanding applications in industrial settings where reliability under pressure is crucial.
