Pressure Transducers WIKA-A-10 Type WIKA-A-10-016B 4-20MA | FT11319-016

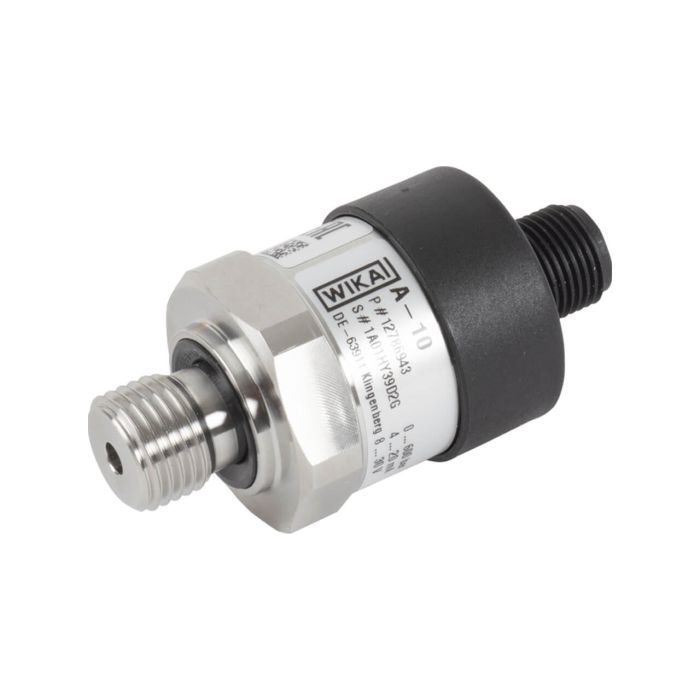

The WEBTEC WIKA-A-10-016B is a robust industrial pressure transducer built for continuous oil pressure monitoring in hydraulic equipment. Rated to a maximum of 16 bar (200 psi) with a measurement accuracy of ±1% full scale, it delivers a reliable 4–20 mA analogue signal over a supply voltage range of 8–30 V DC. Connection is made via an M12 x 1, 4-pin connector, and the 1/4" BSPP port suits common hydraulic circuit configurations.

Constructed from 316L stainless steel with FKM seals, the unit is compatible with mineral oils to ISO 11158 and handles both fluid and ambient temperatures from -40 to 100°C (-40 to 212°F). An IP67 ingress protection rating makes it well suited to demanding industrial environments. At 0.1 kg, the compact, lightweight design adds minimal weight to test or monitoring assemblies.

SKU: FT11319-016
Supplier Part Number (MPN): WIKA-A-10-016B 4-20MA
