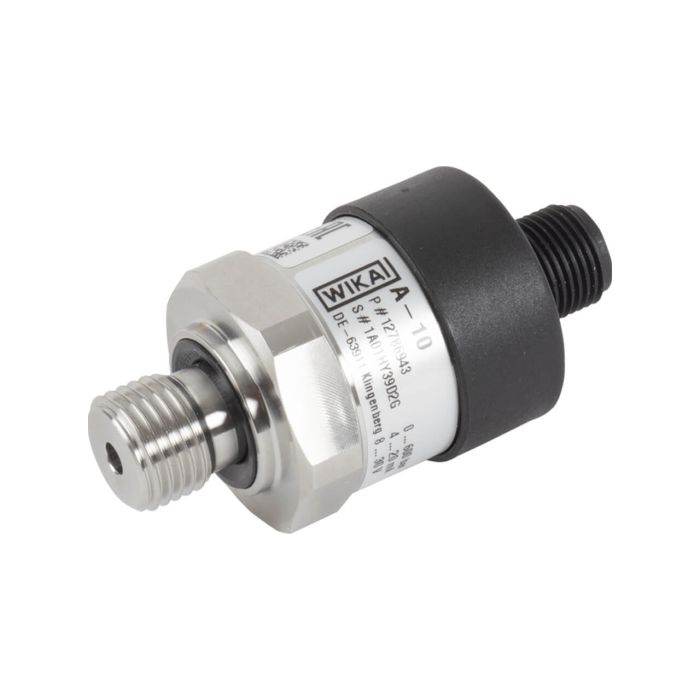

main product photo

Pressure Transducers WIKA-A-10 Type WIKA-A-10-10KP 4-20MA | FT11320-10K0

Ask A Question

Description & Features

The WEBTEC WIKA-A-10 Pressure Transducer, part of WEBTEC's Pressure Test Systems category, is engineered for accurate monitoring of oil pressure in hydraulic applications. It boasts a maximum pressure capability of 700 bar (10,000 psi) and ensures precision with an accuracy of ? ±1% Full Scale. This transducer operates reliably across a broad fluid and ambient temperature range of -40 to 100°C (-40 to 212°F), making it suitable for various demanding environments.

Constructed with durable stainless steel 316L and PH steel, this device is compatible with mineral oils conforming to ISO 11158 standards, with options for other fluids available upon request. The transducer features a 1/2" NPT porting, an M12 x 1, 4-Pin electrical connection, and requires an 8 to 30 V DC power supply. An IP67 rating ensures excellent protection against dust and water ingress, enhancing its durability in harsh conditions.

SKU: FT11320-10K0
Supplier Part Number (MPN): WIKA-A-10-10KP 4-20MA

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
FT11320-10K0
Pressure Accuracy
≤ ±1% Full Scale
Ambient Temperature
-40 to 100 °C, -40 to 212 °F
Body Materials
Stainless Steel 316L, HNBR, PA
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Connection Type
M12 x 1, 4-Pin
Fluid Temperature Range
-40 to 100°C, -40 to 212°F
Gross Weight
0.17 kg, 0.37 lbs
Internal Materials
Stainless steel 316L and PH steel
IP Rating
IP67
Max Rated Pressure
700 bar, 10000 psi
Net Weight
0.1 kg, 0.2 lbs
Porting
1/2” NPT
Power Supply
8 – 30 V DC
Seals
FKM
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Terry N on Apr 17, 2026, 11:56 AM
sensor's rated to 10,000 psi -- does that hold up running continuously or is that just a peak figure?
Answer by: Customer Support on Apr 18, 2026, 4:28 PM
Rated max is 700 bar (10,000 psi), and that's the working pressure ceiling, not a momentary spike rating. Fluid temperature can run anywhere from -40 to 100°C without issue, and ambient temperature covers that same range. For continuous duty in a hydraulic system that stays within those limits, the stainless 316L body and FKM seals are built to handle it. Nothing in the specs restricts it to intermittent use.
Question by: Hank H on Jul 6, 2025, 1:09 PM
How does the WIKA-A-10 pressure transducer handle high-pressure situations?
Answer by: Customer Support on Jul 8, 2025, 7:28 AM
The WIKA-A-10 pressure transducer is built to handle pressures up to 700 bar or 10,000 psi, making it suitable for demanding hydraulic applications. Its robust construction, using materials like Stainless Steel 316L, ensures it performs reliably under these high-pressure conditions.
