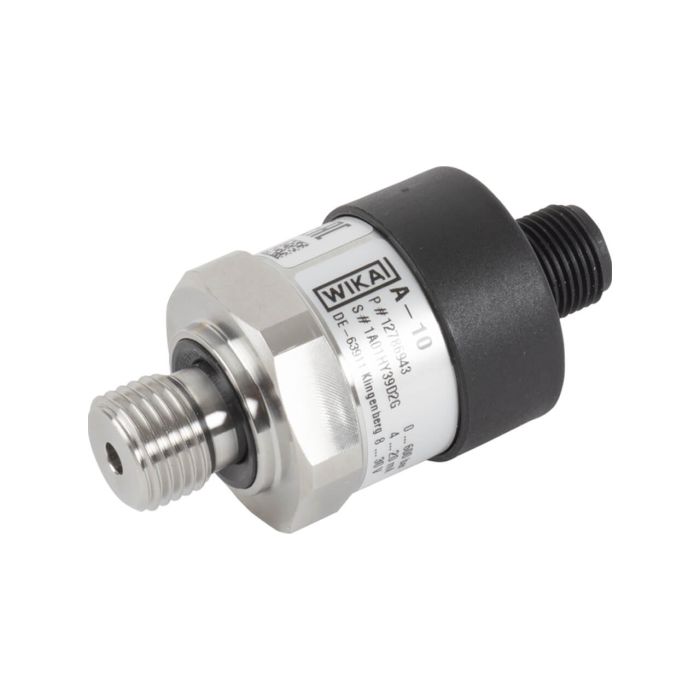

Pressure Transducers WIKA-A-10 Type WIKA-A-10-1K5P 4-20MA | FT11320-1K5

The WIKA-A-10-1K5P by WEBTEC is a compact pressure transducer built for continuous oil pressure monitoring in hydraulic equipment. Rated to 100 bar (1500 psi) with an accuracy of ±1% full scale, it delivers a reliable 4–20 mA analogue signal across a wide power supply range of 8 to 30 V DC.

Constructed from 316L stainless steel with FKM seals, the unit is compatible with mineral oils to ISO 11158 and handles fluid and ambient temperatures from -40 to 100°C (-40 to 212°F). The 7/16"-20UN #4 SAE ORB male port and M12 x 1 4-pin connector make installation straightforward in standard hydraulic circuits. An IP67 ingress protection rating ensures reliable service in demanding industrial environments. Weighing just 0.1 kg, it is well suited to space-constrained installations where consistent pressure measurement is required.

SKU: FT11320-1K5
Supplier Part Number (MPN): WIKA-A-10-1K5P 4-20MA
