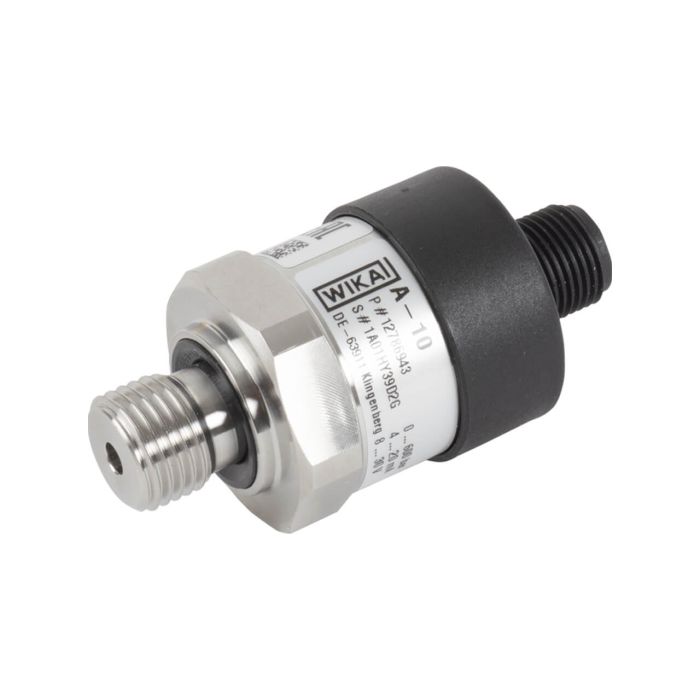

main product photo

Pressure Transducers WIKA-A-10 Type WIKA-A-10-200P 4-20MA | FT11320-200

Ask A Question

Description & Features

Designed for accuracy and durability, the WEBTEC WIKA-A-10 Pressure Transducer is an essential component for monitoring oil pressure in hydraulic systems. With a maximum pressure rating of 16 bar (200 psi) and a pressure accuracy of ? ±1% full scale, this transducer delivers reliable performance in demanding environments. It operates efficiently across a fluid and ambient temperature range of -40 to 100°C (-40 to 212°F), making it suitable for diverse applications.

Constructed from high-quality stainless steel 316L, HNBR, and PA, the transducer is built to withstand harsh conditions. Its IP67 rating ensures excellent protection against dust and water ingress. The device connects via a 7/16"-20UN #4 SAE ORB Male port and an M12 x 1, 4-pin electrical connection, powered by 8-30 V DC. Compatible with mineral oils to ISO 11158 standards, and adaptable for other fluids upon request, the WIKA-A-10 transducer is a versatile solution for hydraulic pressure measurement.

SKU: FT11320-200
Supplier Part Number (MPN): WIKA-A-10-200P 4-20MA

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
FT11320-200
Pressure Accuracy
≤ ±1% Full Scale
Ambient Temperature
-40 to 100 °C, -40 to 212 °F
Body Materials
Stainless Steel 316L, HNBR, PA
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Connection Type
M12 x 1, 4-Pin
Fluid Temperature Range
-40 to 100°C, -40 to 212°F
Gross Weight
0.17 kg, 0.37 lbs
Internal Materials
Stainless steel 316L and PH steel
IP Rating
IP67
Max Rated Pressure
16 bar, 200 psi
Net Weight
0.1 kg, 0.2 lbs
Porting
7/16"-20UN #4 SAE ORB Male
Power Supply
8 – 30 V DC
Seals
FKM
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Warren H on Nov 10, 2025, 8:34 PM
How does the WIKA-A-10-200P pressure transducer perform in high-temperature environments?
Answer by: Customer Support on Nov 12, 2025, 7:35 PM
The WIKA-A-10-200P pressure transducer is built to handle extreme temperatures, operating efficiently between -40 to 100°C (-40 to 212°F). This makes it suitable for use in both high and low-temperature settings, ensuring reliable performance across a broad range of environments.
Question by: Brent E on Aug 11, 2025, 9:47 AM
what's the pressure limit on this transducer, and is 200 psi the top end or is there a higher range available in this model?
Answer by: Customer Support on Aug 13, 2025, 7:07 AM
200 psi is the maximum rated pressure for this specific model. The accuracy holds to within plus or minus 1% of full scale across that range, so you're getting solid resolution right up to the limit. If your system runs higher than 200 psi, you'd be looking at a different model in the series rather than pushing this one past its rating.
