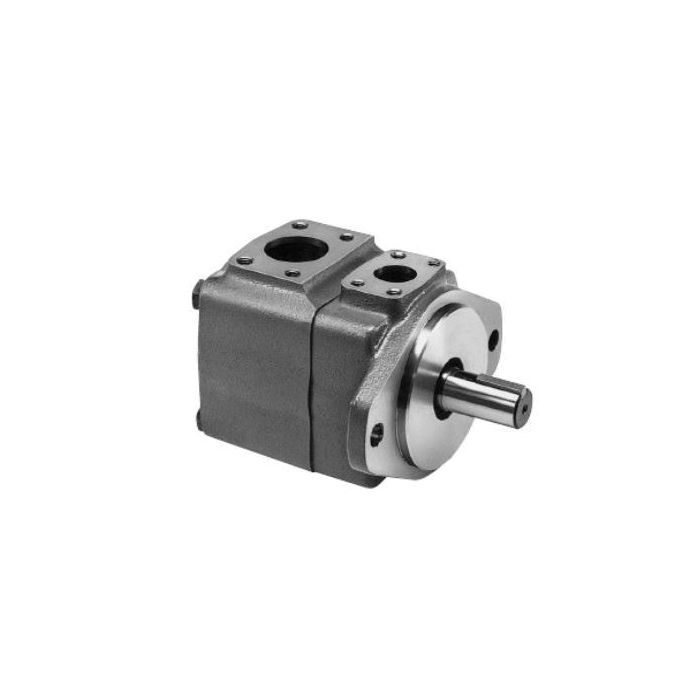

Hydraulic Double Vane Pump, VQH Series Double Pump, 11.80 cu in/rev Front, 1.67 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 3/4 Rear, CW Rotation

Description & Features

This Eaton Vickers hydraulic double vane pump is designed for demanding applications, including plastics machinery, press machines, die casting, and machine tools. Also suitable for test equipment, primary metal, pulp and paper, wood processing, oil and gas, marine, and general industrial uses.

The Hydraulic Double Vane Pump features a 2-Bolt SAE C mounting flange, a 1-1/2 straight keyed shaft, and SAE 4-bolt flange ports with a 3-1/2 inlet, a 1-1/2 front outlet, and a 3/4 rear outlet. This 4520VQ series pump offers a front displacement of 11.80 cu in/rev and a rear displacement of 1.67 cu in/rev and provides clockwise rotation.

SKU: 02-142081-1

Supplier Part Number (MPN): 02-142081-1

Alternate Part Numbers: 4520VQH60A886AA20, C1HH35

Specifications

Brand
Vickers by Danfoss
Cartridge Type
20 Design
Configuration
Double
Dimensions
15.52 in L x 8.38 in W x 6.43 in H
Displacement
11.8 cu-in Shaft, 1.7 cu-in Cover
Drive Shaft Type
Heavy-Duty Straight Keyed
Flow Rate
60 gpm Shaft, 8 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mount io
2-Bolt SAE C
Mounting Type
2-Bolt SAE C
Outlet Size
3/4 in, 1-1/2 in
Port
SAE 4-Bolt Flange, 3-1/2 in Inlet, 1-1/2 Front 3/4 in Rear Front
Rotation Direction
Counterclockwise
Seal Material
Buna-N
Segment Code
C
Series
4520 Series
Shaft Size
1-1/2 in Dia
Vane Type
Fixed Displacement and Balanced

Similar Products

Model Number Displacement Flow Rate Maximum Operating Pressure Speed Rating Mounting Type Drive Shaft Type Shaft Size Rotation Direction Cartridge Type Dimensions Price Action
Hydraulic Double Vane Pump, No. 2 outlet 45° CW from inlet, 4.12 cu in/rev Front, 2.80 cu in/rev Rear, 2-Bolt SAE B Mounting Flange, 13T SAE B Splined Shaft, SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear, CCW Rotation

596631-7 Hydraulic Double Vane Pump

4.1 cu-in Shaft, 2.8 cu-in Cover

21 gpm Shaft/14 gpm Cover

2500 psi

2-Bolt SAE B

13 Tooth SAE B Splined

Anti-Clockwise, Clockwise

20 Design

11.69 in L x 6.88 in W x 5.75 in H

Hydraulic Double Vane Pump, V Series Double Pump, 4.10 cu in/rev Front, 2.80 cu in/rev Rear, 2-Bolt SAE B Mounting Flange, 7/8 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear, CW Rotation

02-137210-2 Hydraulic Double Vane Pump

4.1 cu-in Shaft, 2.8 cu-in Cover

21 gpm Shaft/14 gpm Cover

2500 psi

2-Bolt SAE B

Square Keyed

Clockwise

22 Design

308.864 mm L x 174.752 mm W x 146.05 mm H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 8.54 cu in/rev Front, 6.83 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear, CCW Rotation

714-0066-032 Hydraulic Double Vane Pump

8.54 cu-in Front Section, 6.83 cu-in Rear Section

60 to 115.1 gpm , 70.9 to 112.4 gpm

4000 psi

1800 rpm at 120 deg F, 3000 at 120 deg F

2-Bolt SAE C

Straight Keyed

1-1/2 in Dia

Counterclockwise

32 Design

19.8 in L x 8.39 in W x 8.35 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 6.83 cu in/rev Front, 4.33 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/4 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 3, Outlets 1-1/4 Front 1 Rear, CCW Rotation

712-0157-032 Hydraulic Double Vane Pump

6.83 cu-in Front Section, 4.33 cu-in Rear Section

38.6 to 72.02 gpm , 47.6 to 86.18 gpm

4000 psi

1800 rpm at 120 deg F, 2400 at 120 deg F

2-Bolt SAE C

Straight Keyed

Counterclockwise

32 Design

17.99 in L x 8.39 in W x 7.2 in H

Hydraulic Double Vane Pump, No. 2 outlet 135° CCW from inlet, 4.12 cu in/rev Front, 2.80 cu in/rev Rear, 2-Bolt SAE B Mounting Flange, 13T SAE B Splined Shaft, SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear, CCW Rotation

428649-5 Hydraulic Double Vane Pump

4.1 cu-in Shaft, 2.8 cu-in Cover

21 gpm Shaft/14 gpm Cover

2500 psi

2-Bolt SAE B

13 Tooth SAE B Splined

Anti-Clockwise, Counter Clockwise

20 Design

11.69 in L x 6.88 in W x 5.75 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 2.75 cu in/rev Front, 1.96 cu in/rev Rear, 2-Bolt SAE B Mounting Flange, 15T SAE-BB Splined Shaft, SAE 4-Bolt Flange, Inlet 3, Outlets 1 Front 1 Rear, CW Rotation

711-0251-032 Hydraulic Double Vane Pump

3.8 to 40.65 gpm , 5.6 to 48.57 gpm

4500 psi

1800 rpm at 120 deg F, 3000 at 120 deg F

2-Bolt SAE B

15 Tooth SAE BB Splined

Clockwise

32 Design

14.62 in L x 6.85 in W x 6.22 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 14.65 cu in/rev Front, 4.88 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 1 Rear, CW Rotation

713-0068-032 Hydraulic Double Vane Pump

14.65 cu-in Front Section, 4.88 cu-in Rear Section

60 to 115.1 gpm , 70.9 to 112.4 gpm

4000 psi

1800 rpm at 120 deg F, 3000 at 120 deg F

2-Bolt SAE C

Straight Keyed

1-1/2 in Dia

Clockwise

32 Design

18.54 in L x 8.39 in W x 8.35 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 13.12 cu in/rev Front, 7.63 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear, CCW Rotation

714-0081-032 Hydraulic Double Vane Pump

13.12 cu-in Front Section, 7.63 cu-in Rear Section

60 to 115.1 gpm , 70.9 to 112.4 gpm

4000 psi

1800 rpm at 120 deg F, 3000 at 120 deg F

2-Bolt SAE C

Straight Keyed

1-1/2 in Dia

Counterclockwise

32 Design

19.8 in L x 8.39 in W x 8.35 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 8.54 cu in/rev Front, 6.83 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear, CW Rotation

714-0067-032 Hydraulic Double Vane Pump

8.54 cu-in Front Section, 6.83 cu-in Rear Section

60 to 115.1 gpm , 70.9 to 112.4 gpm

4000 psi

1800 rpm at 120 deg F, 3000 at 120 deg F

2-Bolt SAE C

Straight Keyed

1-1/2 in Dia

Clockwise

32 Design

19.8 in L x 8.39 in W x 8.35 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 13.12 cu in/rev Front, 7.63 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear, CW Rotation

714-0080-032 Hydraulic Double Vane Pump

13.12 cu-in Front Section, 7.63 cu-in Rear Section

60 to 115.1 gpm , 70.9 to 112.4 gpm

4000 psi

1800 rpm at 120 deg F, 3000 at 120 deg F

2-Bolt SAE C

Straight Keyed

1-1/2 in Dia

Clockwise

32 Design

19.8 in L x 8.39 in W x 8.35 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 6.83 cu in/rev Front, 4.33 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/4 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 3, Outlets 1-1/4 Front 1 Rear, CW Rotation

712-0156-032 Hydraulic Double Vane Pump

6.83 cu-in Front Section, 4.33 cu-in Rear Section

38.6 to 72.02 gpm , 47.6 to 86.18 gpm

4000 psi

1800 rpm at 120 deg F, 2400 at 120 deg F

2-Bolt SAE C

Straight Keyed

Clockwise

32 Design

17.99 in L x 8.39 in W x 7.2 in H

Hydraulic Double Vane Pump, VQH Series Double Pump, 11.80 cu in/rev Front, 1.67 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 3/4 Rear, CCW Rotation

02-142081-F Hydraulic Double Vane Pump

11.8 cu-in Shaft, 1.7 cu-in Cover

60 gpm Shaft, 8 gpm Cover

2500 psi

2-Bolt SAE C

Heavy-Duty Straight Keyed

1-1/2 in Dia

Clockwise

20 Design

15.52 in L x 8.38 in W x 6.43 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 14.65 cu in/rev Front, 1.58 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 1 Rear, CW Rotation

713-0091-032 Hydraulic Double Vane Pump

14.65 cu-in Front Section, 1.58 cu-in Rear Section

60 to 115.1 gpm , 70.9 to 112.4 gpm

4000 psi

1800 rpm at 120 deg F, 3000 at 120 deg F

2-Bolt SAE C

Straight Keyed

1-1/2 in Dia

Clockwise

32 Design

18.54 in L x 8.39 in W x 8.35 in H

VICKERS 4520VQH60A8 86AA20

02-142081-5

11.8 cu-in Shaft, 1.7 cu-in Cover

60 gpm Shaft, 8 gpm Cover

2500 psi

4-Bolt Flanged

Heavy-Duty Keyed

Counterclockwise

20 Design

15.52 in L x 8.38 in W x 6.43 in H

VICKERS-4520VQH 60A8 86AD 20

02-142081-C

11.8 cu-in Shaft, 1.7 cu-in Cover

60 gpm Shaft, 8 gpm Cover

2500 psi

4-Bolt Flanged

Heavy-Duty Keyed

Clockwise

20 Design

15.52 in L x 8.38 in W x 7.151 in H

Product Questions & Answers (2)

Question by: Rex M on Aug 25, 2025, 10:01 AM
Reckon this'll bolt right up to a standard SAE C mount?
Answer by: Customer Support on Aug 27, 2025, 6:03 AM
Yes sir, this hydraulic pump features a 2-Bolt SAE C mounting flange, so it should fit your standard application just fine.
Question by: Jerry P on Apr 29, 2025, 4:20 PM
What all can this double vane pump handle? Got a press machine application and trying to figure out if it's the right fit.
Answer by: Customer Support on May 1, 2025, 8:58 AM
Press machine work is actually one of the core applications this pump was built around. It also runs well in plastics machinery, die casting, machine tools, wood processing, pulp and paper, oil and gas, marine setups, and general industrial use. The front section displaces 11.80 cu in/rev and the rear puts out 1.67 cu in/rev, so you've got two independent flow circuits in one unit, which is a common need in press applications where pilot and main circuits run at different demands.
