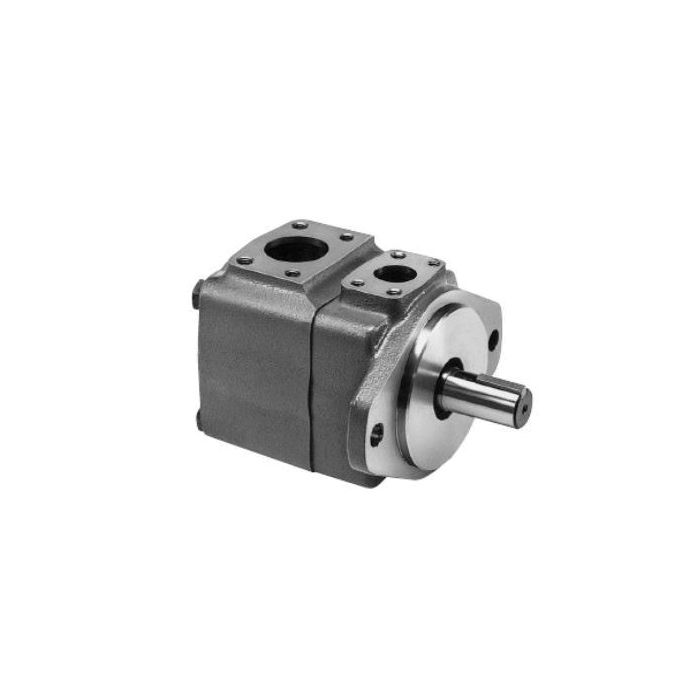

Hydraulic Double Vane Pump, VQH Series Double Pump, 11.80 cu in/rev Front, 1.67 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 3/4 Rear, CCW Rotation

Description & Features

Ideal for demanding high-pressure and high-speed applications, the Eaton Vickers Hydraulic Double Vane Pump from the VQH Series offers exceptional volumetric efficiency and a robust design for extended service life. Featuring a 2-Bolt SAE C mounting flange, this pump is engineered with a 1-1/2 straight keyed shaft and a counter-clockwise rotation for optimized performance.

With a front displacement of 11.80 cu in/rev and a rear displacement of 1.67 cu in/rev, the double vane configuration ensures reliable operation in various industrial settings, including plastics machinery, press machines, and die casting equipment. The SAE 4-Bolt flange accommodates an inlet size of 3-1/2 and outlet sizes of 1-1/2 front and 3/4 rear, making it versatile for multiple applications.

Manufactured by Vickers and branded under Eaton, this pump is a part of the 4520VQ series, featuring a durable Buna-N seal material, which enhances resistance to wear and tear in harsh environments.

SKU: 02-142081-F

Supplier Part Number (MPN): 02-142081-F

Alternate Part Numbers: C1HH36

Specifications

Brand
Vickers by Danfoss
Cartridge Type
20 Design
Configuration
Double
Dimensions
15.52 in L x 8.38 in W x 6.43 in H
Displacement
11.8 cu-in Shaft, 1.7 cu-in Cover
Drive Shaft Type
Heavy-Duty Straight Keyed
Flow Rate
60 gpm Shaft, 8 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mount io
2-Bolt SAE C
Mounting Type
2-Bolt SAE C
Outlet Size
3/4 in, 1-1/2 in
Port
SAE 4-Bolt Flange, 3-1/2 in Inlet, 1-1/2 Front 3/4 in Rear Front
Rotation Direction
Clockwise
Seal Material
Buna-N
Segment Code
C
Series
4520 Series
Shaft Size
1-1/2 in Dia
Vane Type
Fixed Displacement and Balanced

Similar Products

Model Number Displacement Flow Rate Maximum Operating Pressure Speed Rating Mounting Type Drive Shaft Type Shaft Size Rotation Direction Cartridge Type Dimensions Price Action
Hydraulic Double Vane Pump, No. 2 outlet 45° CW from inlet, 4.12 cu in/rev Front, 2.80 cu in/rev Rear, 2-Bolt SAE B Mounting Flange, 13T SAE B Splined Shaft, SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear, CCW Rotation

596631-7 Hydraulic Double Vane Pump

4.1 cu-in Shaft, 2.8 cu-in Cover

21 gpm Shaft/14 gpm Cover

2500 psi

2-Bolt SAE B

13 Tooth SAE B Splined

Anti-Clockwise, Clockwise

20 Design

11.69 in L x 6.88 in W x 5.75 in H

Hydraulic Double Vane Pump, V Series Double Pump, 4.10 cu in/rev Front, 2.80 cu in/rev Rear, 2-Bolt SAE B Mounting Flange, 7/8 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear, CW Rotation

02-137210-2 Hydraulic Double Vane Pump

4.1 cu-in Shaft, 2.8 cu-in Cover

21 gpm Shaft/14 gpm Cover

2500 psi

2-Bolt SAE B

Square Keyed

Clockwise

22 Design

308.864 mm L x 174.752 mm W x 146.05 mm H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 8.54 cu in/rev Front, 6.83 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear, CCW Rotation

714-0066-032 Hydraulic Double Vane Pump

8.54 cu-in Front Section, 6.83 cu-in Rear Section

60 to 115.1 gpm , 70.9 to 112.4 gpm

4000 psi

1800 rpm at 120 deg F, 3000 at 120 deg F

2-Bolt SAE C

Straight Keyed

1-1/2 in Dia

Counterclockwise

32 Design

19.8 in L x 8.39 in W x 8.35 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 6.83 cu in/rev Front, 4.33 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/4 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 3, Outlets 1-1/4 Front 1 Rear, CCW Rotation

712-0157-032 Hydraulic Double Vane Pump

6.83 cu-in Front Section, 4.33 cu-in Rear Section

38.6 to 72.02 gpm , 47.6 to 86.18 gpm

4000 psi

1800 rpm at 120 deg F, 2400 at 120 deg F

2-Bolt SAE C

Straight Keyed

Counterclockwise

32 Design

17.99 in L x 8.39 in W x 7.2 in H

Hydraulic Double Vane Pump, No. 2 outlet 135° CCW from inlet, 4.12 cu in/rev Front, 2.80 cu in/rev Rear, 2-Bolt SAE B Mounting Flange, 13T SAE B Splined Shaft, SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear, CCW Rotation

428649-5 Hydraulic Double Vane Pump

4.1 cu-in Shaft, 2.8 cu-in Cover

21 gpm Shaft/14 gpm Cover

2500 psi

2-Bolt SAE B

13 Tooth SAE B Splined

Anti-Clockwise, Counter Clockwise

20 Design

11.69 in L x 6.88 in W x 5.75 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 2.75 cu in/rev Front, 1.96 cu in/rev Rear, 2-Bolt SAE B Mounting Flange, 15T SAE-BB Splined Shaft, SAE 4-Bolt Flange, Inlet 3, Outlets 1 Front 1 Rear, CW Rotation

711-0251-032 Hydraulic Double Vane Pump

3.8 to 40.65 gpm , 5.6 to 48.57 gpm

4500 psi

1800 rpm at 120 deg F, 3000 at 120 deg F

2-Bolt SAE B

15 Tooth SAE BB Splined

Clockwise

32 Design

14.62 in L x 6.85 in W x 6.22 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 14.65 cu in/rev Front, 4.88 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 1 Rear, CW Rotation

713-0068-032 Hydraulic Double Vane Pump

14.65 cu-in Front Section, 4.88 cu-in Rear Section

60 to 115.1 gpm , 70.9 to 112.4 gpm

4000 psi

1800 rpm at 120 deg F, 3000 at 120 deg F

2-Bolt SAE C

Straight Keyed

1-1/2 in Dia

Clockwise

32 Design

18.54 in L x 8.39 in W x 8.35 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 13.12 cu in/rev Front, 7.63 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear, CCW Rotation

714-0081-032 Hydraulic Double Vane Pump

13.12 cu-in Front Section, 7.63 cu-in Rear Section

60 to 115.1 gpm , 70.9 to 112.4 gpm

4000 psi

1800 rpm at 120 deg F, 3000 at 120 deg F

2-Bolt SAE C

Straight Keyed

1-1/2 in Dia

Counterclockwise

32 Design

19.8 in L x 8.39 in W x 8.35 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 8.54 cu in/rev Front, 6.83 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear, CW Rotation

714-0067-032 Hydraulic Double Vane Pump

8.54 cu-in Front Section, 6.83 cu-in Rear Section

60 to 115.1 gpm , 70.9 to 112.4 gpm

4000 psi

1800 rpm at 120 deg F, 3000 at 120 deg F

2-Bolt SAE C

Straight Keyed

1-1/2 in Dia

Clockwise

32 Design

19.8 in L x 8.39 in W x 8.35 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 13.12 cu in/rev Front, 7.63 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear, CW Rotation

714-0080-032 Hydraulic Double Vane Pump

13.12 cu-in Front Section, 7.63 cu-in Rear Section

60 to 115.1 gpm , 70.9 to 112.4 gpm

4000 psi

1800 rpm at 120 deg F, 3000 at 120 deg F

2-Bolt SAE C

Straight Keyed

1-1/2 in Dia

Clockwise

32 Design

19.8 in L x 8.39 in W x 8.35 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 6.83 cu in/rev Front, 4.33 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/4 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 3, Outlets 1-1/4 Front 1 Rear, CW Rotation

712-0156-032 Hydraulic Double Vane Pump

6.83 cu-in Front Section, 4.33 cu-in Rear Section

38.6 to 72.02 gpm , 47.6 to 86.18 gpm

4000 psi

1800 rpm at 120 deg F, 2400 at 120 deg F

2-Bolt SAE C

Straight Keyed

Clockwise

32 Design

17.99 in L x 8.39 in W x 7.2 in H

Hydraulic Double Vane Pump, VQH Series Double Pump, 11.80 cu in/rev Front, 1.67 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 3/4 Rear, CW Rotation

02-142081-1 Hydraulic Double Vane Pump

11.8 cu-in Shaft, 1.7 cu-in Cover

60 gpm Shaft, 8 gpm Cover

2500 psi

2-Bolt SAE C

Heavy-Duty Straight Keyed

1-1/2 in Dia

Counterclockwise

20 Design

15.52 in L x 8.38 in W x 6.43 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 14.65 cu in/rev Front, 1.58 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 1 Rear, CW Rotation

713-0091-032 Hydraulic Double Vane Pump

14.65 cu-in Front Section, 1.58 cu-in Rear Section

60 to 115.1 gpm , 70.9 to 112.4 gpm

4000 psi

1800 rpm at 120 deg F, 3000 at 120 deg F

2-Bolt SAE C

Straight Keyed

1-1/2 in Dia

Clockwise

32 Design

18.54 in L x 8.39 in W x 8.35 in H

VICKERS 4520VQH60A8 86AA20

02-142081-5

11.8 cu-in Shaft, 1.7 cu-in Cover

60 gpm Shaft, 8 gpm Cover

2500 psi

4-Bolt Flanged

Heavy-Duty Keyed

Counterclockwise

20 Design

15.52 in L x 8.38 in W x 6.43 in H

VICKERS-4520VQH 60A8 86AD 20

02-142081-C

11.8 cu-in Shaft, 1.7 cu-in Cover

60 gpm Shaft, 8 gpm Cover

2500 psi

4-Bolt Flanged

Heavy-Duty Keyed

Clockwise

20 Design

15.52 in L x 8.38 in W x 7.151 in H

Product Questions & Answers (3)

Question by: Ricky A on Apr 4, 2025, 5:25 PM
Running a double vane setup on a press machine and need to confirm the displacement figures before I order. What's the front and rear output on this one?
Answer by: Customer Support on Apr 6, 2025, 5:17 PM
Front section pulls 11.80 cubic inches per revolution, rear section runs 1.67 cubic inches per revolution. That's a pretty significant difference between the two, which makes this configuration well suited for press applications where you need high flow on the primary circuit and a lower-flow auxiliary circuit handled by the same pump. Both sections share a single 1-1/2 straight keyed shaft and mount up with a 2-bolt SAE C flange.
Question by: Ralph B on May 7, 2025, 12:21 PM
Will this double pump work okay for plastics machinery, or is it better suited for something else?
Answer by: Customer Support on May 9, 2025, 8:21 AM
It's definitely suitable. This VQH series double pump is used in plastics machinery applications, along with press machines, die casting, machine tools, and more.
Question by: Debbie R on Jan 7, 2026, 1:47 PM
got a machine that needs a counterclockwise pump. is this one CCW rotation for sure?
Answer by: Customer Support on Jan 8, 2026, 3:43 PM
Rotation is specified as CCW on this VQH series double vane pump, so it is set up for counterclockwise rotation.
