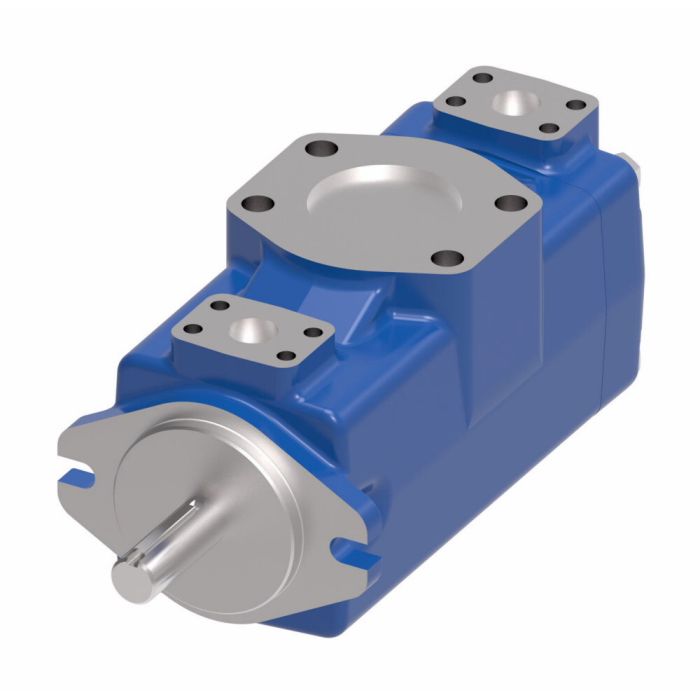

Hydraulic Double Vane Pump, VMQ Series Double Pump, 6.83 cu in/rev Front, 4.33 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/4 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 3, Outlets 1-1/4 Front 1 Rear, CCW Rotation

Description & Features

Built for demanding industrial duty cycles, the Hydraulic Double Vane Pump, VMQ Series Double Pump, 6.83 cu in/rev Front, 4.33 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/4 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 3, Outlets 1-1/4 Front 1 Rear, CCW Rotation is a dual-section vane pump from Eaton Vickers engineered for high-pressure, low-noise performance. The VMQ Series uses a unique wafer plate design that contributes to quieter running compared to conventional vane pump configurations.

Front displacement is 6.83 cu in/rev and rear displacement is 4.33 cu in/rev, with the rear outlet port positioned 45° clockwise relative to the inlet port. The pump mounts via a 2-Bolt SAE C flange and accepts a 1-1/4 straight keyed shaft, with no thru-drive provision. Buna-N seals and a single shaft seal are standard. Suited for metal cutting, plastic injection molding, dump truck, wheel loader, and oil and gas applications, this pump is a versatile choice across mobile and industrial hydraulic circuits.

SKU: 712-0157-032

Supplier Part Number (MPN): 712-0157-032

Alternate Part Numbers: C1KK72

Specifications

Brand
Vickers by Danfoss
Cartridge Type
32 Design
Configuration
Double
Dimensions
17.99 in L x 8.39 in W x 7.2 in H
Displacement
6.83 cu-in Front Section, 4.33 cu-in Rear Section
Drive Shaft Type
Straight Keyed
Flow Rate
38.6 to 72.02 gpm , 47.6 to 86.18 gpm
Frame Size
35 Front, 25 Rear
Housing Material
Iron
Maximum Operating Pressure
4000 psi
Mount io
2-Bolt SAE C
Mounting Type
2-Bolt SAE C
Number of Shaft Seal
1
Port
SAE 4-Bolt Flange, 3 in Inlet, 1-1/4 in Outlet, 1 in Rear Front
Port io
SAE 4-Bolt Flange, 3 in Inlet, 1-1/4 in Outlet, 1 in Rear Front
Rotation Direction
Counterclockwise
Seal Material
Buna-N
Segment Code
C
Series
VMQ2 Series
Shaft Seal
Single
Speed Rating
1800 rpm at 120 deg F, 2400 at 120 deg F
Vane Function Type
Pump

Similar Products

Model Number Displacement Flow Rate Maximum Operating Pressure Speed Rating Mounting Type Drive Shaft Type Shaft Size Rotation Direction Cartridge Type Dimensions Price Action
Hydraulic Double Vane Pump, No. 2 outlet 45° CW from inlet, 4.12 cu in/rev Front, 2.80 cu in/rev Rear, 2-Bolt SAE B Mounting Flange, 13T SAE B Splined Shaft, SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear, CCW Rotation

596631-7 Hydraulic Double Vane Pump

4.1 cu-in Shaft, 2.8 cu-in Cover

21 gpm Shaft/14 gpm Cover

2500 psi

2-Bolt SAE B

13 Tooth SAE B Splined

Anti-Clockwise, Clockwise

20 Design

11.69 in L x 6.88 in W x 5.75 in H

Hydraulic Double Vane Pump, V Series Double Pump, 4.10 cu in/rev Front, 2.80 cu in/rev Rear, 2-Bolt SAE B Mounting Flange, 7/8 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear, CW Rotation

02-137210-2 Hydraulic Double Vane Pump

4.1 cu-in Shaft, 2.8 cu-in Cover

21 gpm Shaft/14 gpm Cover

2500 psi

2-Bolt SAE B

Square Keyed

Clockwise

22 Design

308.864 mm L x 174.752 mm W x 146.05 mm H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 8.54 cu in/rev Front, 6.83 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear, CCW Rotation

714-0066-032 Hydraulic Double Vane Pump

8.54 cu-in Front Section, 6.83 cu-in Rear Section

60 to 115.1 gpm , 70.9 to 112.4 gpm

4000 psi

1800 rpm at 120 deg F, 3000 at 120 deg F

2-Bolt SAE C

Straight Keyed

1-1/2 in Dia

Counterclockwise

32 Design

19.8 in L x 8.39 in W x 8.35 in H

Hydraulic Double Vane Pump, No. 2 outlet 135° CCW from inlet, 4.12 cu in/rev Front, 2.80 cu in/rev Rear, 2-Bolt SAE B Mounting Flange, 13T SAE B Splined Shaft, SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear, CCW Rotation

428649-5 Hydraulic Double Vane Pump

4.1 cu-in Shaft, 2.8 cu-in Cover

21 gpm Shaft/14 gpm Cover

2500 psi

2-Bolt SAE B

13 Tooth SAE B Splined

Anti-Clockwise, Counter Clockwise

20 Design

11.69 in L x 6.88 in W x 5.75 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 2.75 cu in/rev Front, 1.96 cu in/rev Rear, 2-Bolt SAE B Mounting Flange, 15T SAE-BB Splined Shaft, SAE 4-Bolt Flange, Inlet 3, Outlets 1 Front 1 Rear, CW Rotation

711-0251-032 Hydraulic Double Vane Pump

3.8 to 40.65 gpm , 5.6 to 48.57 gpm

4500 psi

1800 rpm at 120 deg F, 3000 at 120 deg F

2-Bolt SAE B

15 Tooth SAE BB Splined

Clockwise

32 Design

14.62 in L x 6.85 in W x 6.22 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 14.65 cu in/rev Front, 4.88 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 1 Rear, CW Rotation

713-0068-032 Hydraulic Double Vane Pump

14.65 cu-in Front Section, 4.88 cu-in Rear Section

60 to 115.1 gpm , 70.9 to 112.4 gpm

4000 psi

1800 rpm at 120 deg F, 3000 at 120 deg F

2-Bolt SAE C

Straight Keyed

1-1/2 in Dia

Clockwise

32 Design

18.54 in L x 8.39 in W x 8.35 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 13.12 cu in/rev Front, 7.63 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear, CCW Rotation

714-0081-032 Hydraulic Double Vane Pump

13.12 cu-in Front Section, 7.63 cu-in Rear Section

60 to 115.1 gpm , 70.9 to 112.4 gpm

4000 psi

1800 rpm at 120 deg F, 3000 at 120 deg F

2-Bolt SAE C

Straight Keyed

1-1/2 in Dia

Counterclockwise

32 Design

19.8 in L x 8.39 in W x 8.35 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 8.54 cu in/rev Front, 6.83 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear, CW Rotation

714-0067-032 Hydraulic Double Vane Pump

8.54 cu-in Front Section, 6.83 cu-in Rear Section

60 to 115.1 gpm , 70.9 to 112.4 gpm

4000 psi

1800 rpm at 120 deg F, 3000 at 120 deg F

2-Bolt SAE C

Straight Keyed

1-1/2 in Dia

Clockwise

32 Design

19.8 in L x 8.39 in W x 8.35 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 13.12 cu in/rev Front, 7.63 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear, CW Rotation

714-0080-032 Hydraulic Double Vane Pump

13.12 cu-in Front Section, 7.63 cu-in Rear Section

60 to 115.1 gpm , 70.9 to 112.4 gpm

4000 psi

1800 rpm at 120 deg F, 3000 at 120 deg F

2-Bolt SAE C

Straight Keyed

1-1/2 in Dia

Clockwise

32 Design

19.8 in L x 8.39 in W x 8.35 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 6.83 cu in/rev Front, 4.33 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/4 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 3, Outlets 1-1/4 Front 1 Rear, CW Rotation

712-0156-032 Hydraulic Double Vane Pump

6.83 cu-in Front Section, 4.33 cu-in Rear Section

38.6 to 72.02 gpm , 47.6 to 86.18 gpm

4000 psi

1800 rpm at 120 deg F, 2400 at 120 deg F

2-Bolt SAE C

Straight Keyed

Clockwise

32 Design

17.99 in L x 8.39 in W x 7.2 in H

Hydraulic Double Vane Pump, VQH Series Double Pump, 11.80 cu in/rev Front, 1.67 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 3/4 Rear, CCW Rotation

02-142081-F Hydraulic Double Vane Pump

11.8 cu-in Shaft, 1.7 cu-in Cover

60 gpm Shaft, 8 gpm Cover

2500 psi

2-Bolt SAE C

Heavy-Duty Straight Keyed

1-1/2 in Dia

Clockwise

20 Design

15.52 in L x 8.38 in W x 6.43 in H

Hydraulic Double Vane Pump, VQH Series Double Pump, 11.80 cu in/rev Front, 1.67 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 3/4 Rear, CW Rotation

02-142081-1 Hydraulic Double Vane Pump

11.8 cu-in Shaft, 1.7 cu-in Cover

60 gpm Shaft, 8 gpm Cover

2500 psi

2-Bolt SAE C

Heavy-Duty Straight Keyed

1-1/2 in Dia

Counterclockwise

20 Design

15.52 in L x 8.38 in W x 6.43 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 14.65 cu in/rev Front, 1.58 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 1 Rear, CW Rotation

713-0091-032 Hydraulic Double Vane Pump

14.65 cu-in Front Section, 1.58 cu-in Rear Section

60 to 115.1 gpm , 70.9 to 112.4 gpm

4000 psi

1800 rpm at 120 deg F, 3000 at 120 deg F

2-Bolt SAE C

Straight Keyed

1-1/2 in Dia

Clockwise

32 Design

18.54 in L x 8.39 in W x 8.35 in H

VICKERS 4520VQH60A8 86AA20

02-142081-5

11.8 cu-in Shaft, 1.7 cu-in Cover

60 gpm Shaft, 8 gpm Cover

2500 psi

4-Bolt Flanged

Heavy-Duty Keyed

Counterclockwise

20 Design

15.52 in L x 8.38 in W x 6.43 in H

VICKERS-4520VQH 60A8 86AD 20

02-142081-C

11.8 cu-in Shaft, 1.7 cu-in Cover

60 gpm Shaft, 8 gpm Cover

2500 psi

4-Bolt Flanged

Heavy-Duty Keyed

Clockwise

20 Design

15.52 in L x 8.38 in W x 7.151 in H

Product Questions & Answers (1)

Question by: Merle R on Jul 25, 2025, 3:47 PM
both sections on this pump turning CCW, or just one of em? trying to make sure it'll work with my setup before i order
Answer by: Customer Support on Jul 27, 2025, 10:25 AM
Both the front and rear sections run counterclockwise on this pump. The whole unit is rated for CCW rotation, so if your drive shaft spins that direction, the pump will work with your existing setup without any modifications.
