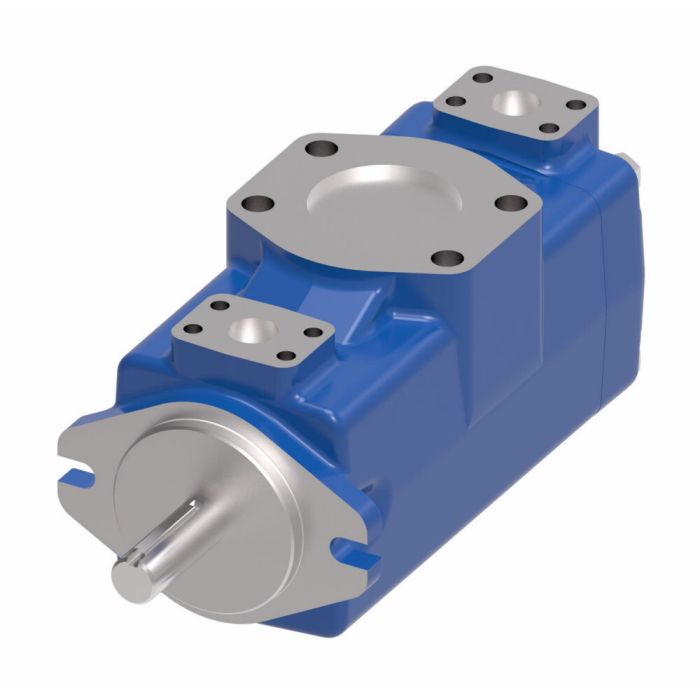

Hydraulic Double Vane Pump, VMQ Series Double Pump, 14.65 cu in/rev Front, 4.88 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 1 Rear, CW Rotation

Description & Features

Designed for demanding applications, the Eaton Vickers VMQ Series Hydraulic Double Vane Pump delivers high performance with its unique wafer plate design. It offers a front displacement of 14.65 cu in/rev and a rear displacement of 4.88 cu in/rev, suitable for sectors like oil and gas, metal cutting, and plastic injection molding. The pump features a 2-Bolt SAE C Mounting Flange and a 1-1/2 Straight Keyed Shaft, ensuring reliable attachment and operation.

This robust pump is engineered to handle the highest pressures while maintaining low noise levels, making it an excellent choice for use in dump trucks and wheel loaders. Its clockwise rotation and SAE 4-Bolt Flange ports provide easy integration into existing systems, with an inlet of 3-1/2 and outlets measuring 1-1/2 at the front and 1 at the rear.

SKU: 713-0068-032

Supplier Part Number (MPN): 713-0068-032

Alternate Part Numbers: C1KK73

Specifications

Brand
Vickers by Danfoss
Cartridge Type
32 Design
Configuration
Double
Dimensions
18.54 in L x 8.39 in W x 8.35 in H
Displacement
14.65 cu-in Front Section, 4.88 cu-in Rear Section
Drive Shaft Type
Straight Keyed
Flow Rate
60 to 115.1 gpm , 70.9 to 112.4 gpm
Frame Size
45 Front, 25 Rear
Housing Material
Iron
Maximum Operating Pressure
4000 psi
Mount io
2-Bolt SAE C
Mounting Type
2-Bolt SAE C
Number of Shaft Seal
1
Port
SAE 4-Bolt Flange, 3-1/2 in Inlet, 1-1/2 in Outlet, 1 in Rear Front
Port io
SAE 4-Bolt Flange, 3-1/2 in Inlet, 1-1/2 in Outlet, 1 in Rear Front
Rotation Direction
Clockwise
Seal Material
Buna-N
Segment Code
A
Series
VMQ2 Series
Shaft Seal
Single
Shaft Size
1-1/2 in Dia
Speed Rating
1800 rpm at 120 deg F, 3000 at 120 deg F
Vane Function Type
Pump

Similar Products

Model Number Displacement Flow Rate Maximum Operating Pressure Speed Rating Mounting Type Drive Shaft Type Shaft Size Rotation Direction Cartridge Type Dimensions Price Action
Hydraulic Double Vane Pump, No. 2 outlet 45° CW from inlet, 4.12 cu in/rev Front, 2.80 cu in/rev Rear, 2-Bolt SAE B Mounting Flange, 13T SAE B Splined Shaft, SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear, CCW Rotation

596631-7 Hydraulic Double Vane Pump

4.1 cu-in Shaft, 2.8 cu-in Cover

21 gpm Shaft/14 gpm Cover

2500 psi

2-Bolt SAE B

13 Tooth SAE B Splined

Anti-Clockwise, Clockwise

20 Design

11.69 in L x 6.88 in W x 5.75 in H

Hydraulic Double Vane Pump, V Series Double Pump, 4.10 cu in/rev Front, 2.80 cu in/rev Rear, 2-Bolt SAE B Mounting Flange, 7/8 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear, CW Rotation

02-137210-2 Hydraulic Double Vane Pump

4.1 cu-in Shaft, 2.8 cu-in Cover

21 gpm Shaft/14 gpm Cover

2500 psi

2-Bolt SAE B

Square Keyed

Clockwise

22 Design

308.864 mm L x 174.752 mm W x 146.05 mm H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 8.54 cu in/rev Front, 6.83 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear, CCW Rotation

714-0066-032 Hydraulic Double Vane Pump

8.54 cu-in Front Section, 6.83 cu-in Rear Section

60 to 115.1 gpm , 70.9 to 112.4 gpm

4000 psi

1800 rpm at 120 deg F, 3000 at 120 deg F

2-Bolt SAE C

Straight Keyed

1-1/2 in Dia

Counterclockwise

32 Design

19.8 in L x 8.39 in W x 8.35 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 6.83 cu in/rev Front, 4.33 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/4 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 3, Outlets 1-1/4 Front 1 Rear, CCW Rotation

712-0157-032 Hydraulic Double Vane Pump

6.83 cu-in Front Section, 4.33 cu-in Rear Section

38.6 to 72.02 gpm , 47.6 to 86.18 gpm

4000 psi

1800 rpm at 120 deg F, 2400 at 120 deg F

2-Bolt SAE C

Straight Keyed

Counterclockwise

32 Design

17.99 in L x 8.39 in W x 7.2 in H

Hydraulic Double Vane Pump, No. 2 outlet 135° CCW from inlet, 4.12 cu in/rev Front, 2.80 cu in/rev Rear, 2-Bolt SAE B Mounting Flange, 13T SAE B Splined Shaft, SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear, CCW Rotation

428649-5 Hydraulic Double Vane Pump

4.1 cu-in Shaft, 2.8 cu-in Cover

21 gpm Shaft/14 gpm Cover

2500 psi

2-Bolt SAE B

13 Tooth SAE B Splined

Anti-Clockwise, Counter Clockwise

20 Design

11.69 in L x 6.88 in W x 5.75 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 2.75 cu in/rev Front, 1.96 cu in/rev Rear, 2-Bolt SAE B Mounting Flange, 15T SAE-BB Splined Shaft, SAE 4-Bolt Flange, Inlet 3, Outlets 1 Front 1 Rear, CW Rotation

711-0251-032 Hydraulic Double Vane Pump

3.8 to 40.65 gpm , 5.6 to 48.57 gpm

4500 psi

1800 rpm at 120 deg F, 3000 at 120 deg F

2-Bolt SAE B

15 Tooth SAE BB Splined

Clockwise

32 Design

14.62 in L x 6.85 in W x 6.22 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 13.12 cu in/rev Front, 7.63 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear, CCW Rotation

714-0081-032 Hydraulic Double Vane Pump

13.12 cu-in Front Section, 7.63 cu-in Rear Section

60 to 115.1 gpm , 70.9 to 112.4 gpm

4000 psi

1800 rpm at 120 deg F, 3000 at 120 deg F

2-Bolt SAE C

Straight Keyed

1-1/2 in Dia

Counterclockwise

32 Design

19.8 in L x 8.39 in W x 8.35 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 8.54 cu in/rev Front, 6.83 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear, CW Rotation

714-0067-032 Hydraulic Double Vane Pump

8.54 cu-in Front Section, 6.83 cu-in Rear Section

60 to 115.1 gpm , 70.9 to 112.4 gpm

4000 psi

1800 rpm at 120 deg F, 3000 at 120 deg F

2-Bolt SAE C

Straight Keyed

1-1/2 in Dia

Clockwise

32 Design

19.8 in L x 8.39 in W x 8.35 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 13.12 cu in/rev Front, 7.63 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear, CW Rotation

714-0080-032 Hydraulic Double Vane Pump

13.12 cu-in Front Section, 7.63 cu-in Rear Section

60 to 115.1 gpm , 70.9 to 112.4 gpm

4000 psi

1800 rpm at 120 deg F, 3000 at 120 deg F

2-Bolt SAE C

Straight Keyed

1-1/2 in Dia

Clockwise

32 Design

19.8 in L x 8.39 in W x 8.35 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 6.83 cu in/rev Front, 4.33 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/4 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 3, Outlets 1-1/4 Front 1 Rear, CW Rotation

712-0156-032 Hydraulic Double Vane Pump

6.83 cu-in Front Section, 4.33 cu-in Rear Section

38.6 to 72.02 gpm , 47.6 to 86.18 gpm

4000 psi

1800 rpm at 120 deg F, 2400 at 120 deg F

2-Bolt SAE C

Straight Keyed

Clockwise

32 Design

17.99 in L x 8.39 in W x 7.2 in H

Hydraulic Double Vane Pump, VQH Series Double Pump, 11.80 cu in/rev Front, 1.67 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 3/4 Rear, CCW Rotation

02-142081-F Hydraulic Double Vane Pump

11.8 cu-in Shaft, 1.7 cu-in Cover

60 gpm Shaft, 8 gpm Cover

2500 psi

2-Bolt SAE C

Heavy-Duty Straight Keyed

1-1/2 in Dia

Clockwise

20 Design

15.52 in L x 8.38 in W x 6.43 in H

Hydraulic Double Vane Pump, VQH Series Double Pump, 11.80 cu in/rev Front, 1.67 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 3/4 Rear, CW Rotation

02-142081-1 Hydraulic Double Vane Pump

11.8 cu-in Shaft, 1.7 cu-in Cover

60 gpm Shaft, 8 gpm Cover

2500 psi

2-Bolt SAE C

Heavy-Duty Straight Keyed

1-1/2 in Dia

Counterclockwise

20 Design

15.52 in L x 8.38 in W x 6.43 in H

Hydraulic Double Vane Pump, VMQ Series Double Pump, 14.65 cu in/rev Front, 1.58 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 1 Rear, CW Rotation

713-0091-032 Hydraulic Double Vane Pump

14.65 cu-in Front Section, 1.58 cu-in Rear Section

60 to 115.1 gpm , 70.9 to 112.4 gpm

4000 psi

1800 rpm at 120 deg F, 3000 at 120 deg F

2-Bolt SAE C

Straight Keyed

1-1/2 in Dia

Clockwise

32 Design

18.54 in L x 8.39 in W x 8.35 in H

VICKERS 4520VQH60A8 86AA20

02-142081-5

11.8 cu-in Shaft, 1.7 cu-in Cover

60 gpm Shaft, 8 gpm Cover

2500 psi

4-Bolt Flanged

Heavy-Duty Keyed

Counterclockwise

20 Design

15.52 in L x 8.38 in W x 6.43 in H

VICKERS-4520VQH 60A8 86AD 20

02-142081-C

11.8 cu-in Shaft, 1.7 cu-in Cover

60 gpm Shaft, 8 gpm Cover

2500 psi

4-Bolt Flanged

Heavy-Duty Keyed

Clockwise

20 Design

15.52 in L x 8.38 in W x 7.151 in H

Product Questions & Answers (1)

Question by: Rick B on Jan 24, 2026, 1:10 PM
Will this double pump bolt right up to a standard SAE C mount?
Answer by: Customer Support on Jan 25, 2026, 4:47 PM
this vane pump is made with a 2-Bolt SAE C mounting flange.
