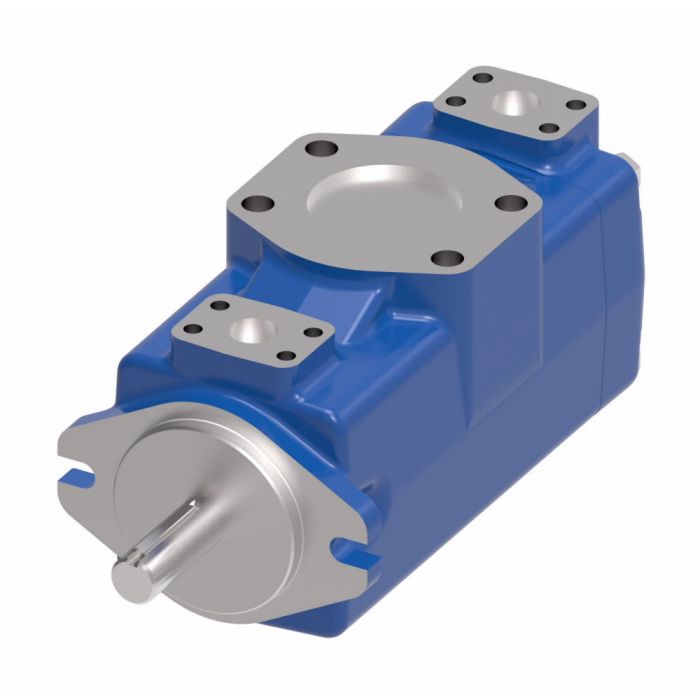

main product photo

Hydraulic Double Vane Pump, VMQ Series Double Pump, 8.54 cu in/rev Front, 6.83 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear, CW Rotation

Ask A Question

Description & Features

Designed for demanding industrial circuits, the Eaton Vickers VMQ Series delivers dual-circuit output from a single compact unit. This Hydraulic Double Vane Pump, VMQ Series Double Pump, 8.54 cu in/rev Front, 6.83 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear, CW Rotation features a unique wafer plate design that supports high-pressure performance with reduced noise output. The double configuration provides a front displacement of 8.54 cu in/rev and a rear displacement of 6.83 cu in/rev, with clockwise rotation and a 1-1/2 straight keyed shaft.

Port connections follow SAE 4-bolt flange standards, with a 4-inch inlet and separate 1-1/2 and 1-1/4 outlets for the front and rear sections. Rear outlet connectors are oriented 45° CCW relative to the inlet port. Buna-N seals and a single shaft seal are standard. Suitable for metal cutting, plastic injection molding, dump truck, wheel loader, and oil and gas applications. No thru-drive capability is included in this configuration.

SKU: 714-0067-032

Supplier Part Number (MPN): 714-0067-032

Alternate Part Numbers: C1JD62

Specifications

Brand
Vickers by Danfoss
Cartridge Type
32 Design
Configuration
Double
Dimensions
19.8 in L x 8.39 in W x 8.35 in H
Displacement
8.54 cu-in Front Section, 6.83 cu-in Rear Section
Drive Shaft Type
Straight Keyed
Flow Rate
60 to 115.1 gpm , 70.9 to 112.4 gpm
Frame Size
45 Front, 35 Rear
Housing Material
Iron
Maximum Operating Pressure
4000 psi
Mount io
2-Bolt SAE C
Mounting Type
2-Bolt SAE C
Number of Shaft Seal
1
Port
SAE 4-Bolt Flange, 4 in Inlet, 1-1/2 in Outlet, 1-1/4 in Rear Front
Port io
SAE 4-Bolt Flange, 4 in Inlet, 1-1/2 in Outlet, 1-1/4 in Rear Front
Rotation Direction
Clockwise
Seal Material
Buna-N
Segment Code
C
Series
VMQ2 Series
Shaft Seal
Single
Shaft Size
1-1/2 in Dia
Speed Rating
1800 rpm at 120 deg F, 3000 at 120 deg F
Vane Function Type
Pump

Similar Products

Part Number Displacement Mount Shaft Ports Rotation Features Rear Displacement Front Displacement Price Action

02-137210-2

2-Bolt SAE B

7/8 Straight Keyed

SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear

CW

Innovative intra-vane cartridge design|Reduces noise|Excellent volumetric efficiency

2.8

4.1

02-142081-F

2-Bolt SAE C

1-1/2 Straight Keyed

SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 3/4 Rear

CCW

Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications

1.67

11.8

428649-5

2-Bolt SAE B

13T SAE B Splined

SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear

CCW

Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications

2.8

4.12

596631-7

2-Bolt SAE B

13T SAE B Splined

SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear

CCW

Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications

2.8

4.12

711-0251-032

2-Bolt SAE B

15T SAE-BB Splined

SAE 4-Bolt Flange, Inlet 3, Outlets 1 Front 1 Rear

CW

Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump

1.96

2.75

712-0156-032

2-Bolt SAE C

1-1/4 Straight Keyed

SAE 4-Bolt Flange, Inlet 3, Outlets 1-1/4 Front 1 Rear

CW

Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump

4.33

6.83

712-0157-032

2-Bolt SAE C

1-1/4 Straight Keyed

SAE 4-Bolt Flange, Inlet 3, Outlets 1-1/4 Front 1 Rear

CCW

Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump

4.33

6.83

713-0068-032

2-Bolt SAE C

1-1/2 Straight Keyed

SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 1 Rear

CW

Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump

4.88

14.65

713-0091-032

2-Bolt SAE C

1-1/2 Straight Keyed

SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 1 Rear

CW

Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump

1.58

14.65

714-0066-032

2-Bolt SAE C

1-1/2 Straight Keyed

SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear

CCW

Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump

6.83

8.54

714-0080-032

2-Bolt SAE C

1-1/2 Straight Keyed

SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear

CW

Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump

7.63

13.12

714-0081-032

2-Bolt SAE C

1-1/2 Straight Keyed

SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear

CCW

Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump

7.63

13.12

02-142081-1

2-Bolt SAE C

1-1/2 Straight Keyed

SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 3/4 Rear

CW

Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications

1.67

11.8

Product Questions & Answers (1)

Question by: Brett O on Aug 20, 2025, 9:03 PM
both front and rear sections running off the same shaft on this thing, or are they independent units bolted together?
Answer by: Customer Support on Aug 22, 2025, 8:15 AM
Both pump sections share a single drive shaft and operate together as one combined unit. The front section displaces 8.54 cubic inches per revolution and the rear displaces 6.83 cubic inches per revolution. Each section has its own outlet port, a 1-1/2 inch for the front and a 1-1/4 inch for the rear, so you can feed two separate hydraulic circuits from one pump while only taking up one PTO or drive connection.
