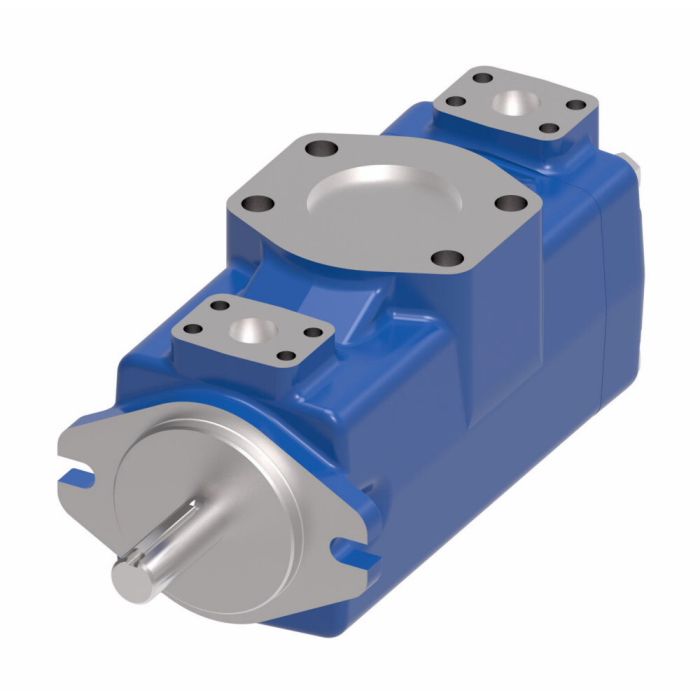

Hydraulic Double Vane Pump, VMQ Series Double Pump, 13.12 cu in/rev Front, 7.63 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear, CW Rotation

Ask A Question

Description & Features

This Eaton Vickers VMQ Series double vane pump is suitable for demanding applications such as oil and gas, metal cutting, dump trucks, wheel loaders, and plastic injection molding.

This hydraulic double vane pump features a 2-bolt SAE C mounting flange, a 1-1/2 straight keyed shaft, and SAE 4-bolt flange ports. It has a front displacement of 13.12 cu in/rev and a rear displacement of 7.63 cu in/rev, with clockwise rotation. Ports include a 4" inlet, a 1-1/2" front outlet, and a 1-1/4" rear outlet.

SKU: 714-0080-032

Supplier Part Number (MPN): 714-0080-032

Alternate Part Numbers: C1JM65

Specifications

Brand
Vickers by Danfoss
Cartridge Type
32 Design
Configuration
Double
Dimensions
19.8 in L x 8.39 in W x 8.35 in H
Displacement
13.12 cu-in Front Section, 7.63 cu-in Rear Section
Drive Shaft Type
Straight Keyed
Flow Rate
60 to 115.1 gpm , 70.9 to 112.4 gpm
Frame Size
45 Front, 35 Rear
Housing Material
Iron
Maximum Operating Pressure
4000 psi
Mount io
2-Bolt SAE C
Mounting Type
2-Bolt SAE C
Number of Shaft Seal
1
Port
SAE 4-Bolt Flange, 4 in Inlet, 1-1/2 in Outlet, 1-1/4 in Rear Front
Port io
SAE 4-Bolt Flange, 4 in Inlet, 1-1/2 in Outlet, 1-1/4 in Rear Front
Rotation Direction
Clockwise
Seal Material
Buna-N
Segment Code
C
Series
VMQ2 Series
Shaft Seal
Single
Shaft Size
1-1/2 in Dia
Speed Rating
1800 rpm at 120 deg F, 3000 at 120 deg F
Vane Function Type
Pump

Similar Products

Part Number Displacement Mount Shaft Ports Rotation Features Rear Displacement Front Displacement Price Action

02-137210-2

2-Bolt SAE B

7/8 Straight Keyed

SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear

CW

Innovative intra-vane cartridge design|Reduces noise|Excellent volumetric efficiency

2.8

4.1

02-142081-F

2-Bolt SAE C

1-1/2 Straight Keyed

SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 3/4 Rear

CCW

Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications

1.67

11.8

428649-5

2-Bolt SAE B

13T SAE B Splined

SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear

CCW

Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications

2.8

4.12

596631-7

2-Bolt SAE B

13T SAE B Splined

SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear

CCW

Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications

2.8

4.12

711-0251-032

2-Bolt SAE B

15T SAE-BB Splined

SAE 4-Bolt Flange, Inlet 3, Outlets 1 Front 1 Rear

CW

Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump

1.96

2.75

712-0156-032

2-Bolt SAE C

1-1/4 Straight Keyed

SAE 4-Bolt Flange, Inlet 3, Outlets 1-1/4 Front 1 Rear

CW

Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump

4.33

6.83

712-0157-032

2-Bolt SAE C

1-1/4 Straight Keyed

SAE 4-Bolt Flange, Inlet 3, Outlets 1-1/4 Front 1 Rear

CCW

Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump

4.33

6.83

713-0068-032

2-Bolt SAE C

1-1/2 Straight Keyed

SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 1 Rear

CW

Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump

4.88

14.65

713-0091-032

2-Bolt SAE C

1-1/2 Straight Keyed

SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 1 Rear

CW

Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump

1.58

14.65

714-0066-032

2-Bolt SAE C

1-1/2 Straight Keyed

SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear

CCW

Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump

6.83

8.54

714-0067-032

2-Bolt SAE C

1-1/2 Straight Keyed

SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear

CW

Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump

6.83

8.54

714-0081-032

2-Bolt SAE C

1-1/2 Straight Keyed

SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear

CCW

Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump

7.63

13.12

02-142081-1

2-Bolt SAE C

1-1/2 Straight Keyed

SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 3/4 Rear

CW

Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications

1.67

11.8

Product Questions & Answers (1)

Question by: Chad F on Nov 29, 2025, 9:28 AM
both sections on this pump turning clockwise, or just the front?
Answer by: Customer Support on Nov 30, 2025, 1:53 PM
Both sections rotate clockwise. The VMQ Series double pump runs CW on a single shared shaft, so the front and rear sections turn the same direction together. That 1-1/2 straight keyed shaft drives them both, no independent rotation involved.
