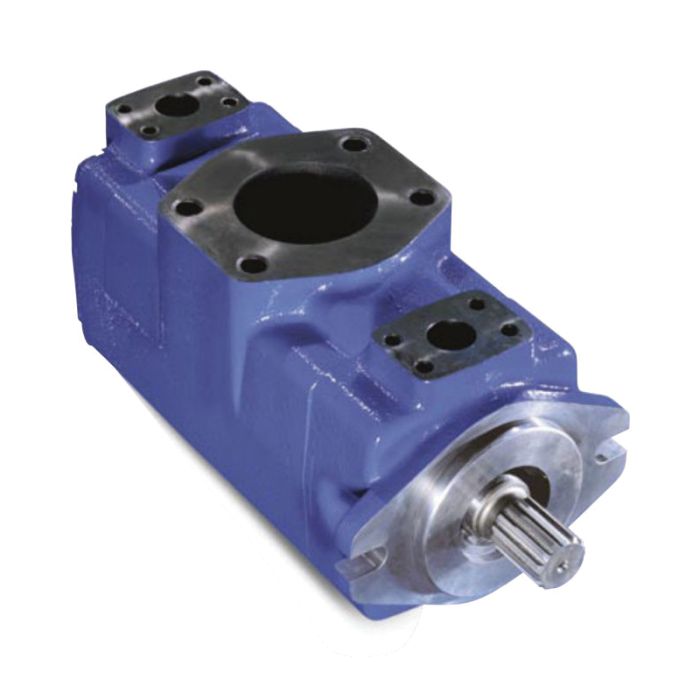

main product photo

Hydraulic Double Vane Pump, VMQ Series Double Pump, 13.12 cu in/rev Front, 7.63 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear, CCW Rotation

Ask A Question

Description & Features

Designed for high-pressure industrial circuits requiring dual-flow output, the Hydraulic Double Vane Pump, VMQ Series Double Pump delivers 13.12 cu in/rev from the front section and 7.63 cu in/rev from the rear. Built on Eaton Vickers' VMQ Series platform, this double-configuration pump features a 2-Bolt SAE C mounting flange and a 1-1/2 straight keyed shaft with counter-clockwise rotation.

Port connections follow SAE 4-bolt flange standards, with a 4-inch inlet and separate front and rear outlets sized at 1-1/2 and 1-1/4 respectively. The rear outlet connectors are oriented 45° clockwise from the inlet port. Buna-N seals are fitted as standard, and the pump uses a single shaft seal with no thru-drive provision.

Typical applications include metal cutting machinery, plastic injection molding, dump trucks, wheel loaders, and oil and gas equipment. The VMQ Series' wafer plate design supports low-noise output at elevated pressures, making it well suited to demanding mobile and industrial duty cycles.

SKU: 714-0081-032

Supplier Part Number (MPN): 714-0081-032

Alternate Part Numbers: C1JM66

Specifications

Adapter Mount Orientation
None
Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Configuration
33
Design Code
32
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump
Front Displacement
13.12
Front Flange Orientation
None
Front Outlet Port Type
None
Geometric Displacement
125
Identification
None
Inlet Connectors
45 DEG. CW FROM INLET PORT
Mfg. Name
Vickers
Mount
2-Bolt SAE C
Mount
2-Bolt SAE C
Output Shaft Coupling
None
Ports
SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear
Ports
SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear
Rear Displacement
7.63
Rear Outlet Port Connections
45° CW To Inlet Port
Rotation
CCW
Seal Material
Buna-N
Series
VMQ
Shaft
1-1/2 Straight Keyed
Shaft
1-1/2 Straight Keyed
Shaft Seals
Single
Special Features
None
Supplier Part Number
714-0081-032
Thru Drive
No
Vane Function Type
Pump
Alternate Part Numbers
Alternate Part Number C1JM66
Product Weight
175.00 lbs

Related Documents

Similar Products

Part Number Displacement Mount Shaft Ports Rotation Features Rear Displacement Front Displacement Price Action

02-137210-2

2-Bolt SAE B

7/8 Straight Keyed

SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear

CW

Innovative intra-vane cartridge design|Reduces noise|Excellent volumetric efficiency

2.8

4.1

02-142081-F

2-Bolt SAE C

1-1/2 Straight Keyed

SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 3/4 Rear

CCW

Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications

1.67

11.8

428649-5

2-Bolt SAE B

13T SAE B Splined

SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear

CCW

Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications

2.8

4.12

596631-7

2-Bolt SAE B

13T SAE B Splined

SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear

CCW

Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications

2.8

4.12

711-0251-032

2-Bolt SAE B

15T SAE-BB Splined

SAE 4-Bolt Flange, Inlet 3, Outlets 1 Front 1 Rear

CW

Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump

1.96

2.75

712-0156-032

2-Bolt SAE C

1-1/4 Straight Keyed

SAE 4-Bolt Flange, Inlet 3, Outlets 1-1/4 Front 1 Rear

CW

Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump

4.33

6.83

712-0157-032

2-Bolt SAE C

1-1/4 Straight Keyed

SAE 4-Bolt Flange, Inlet 3, Outlets 1-1/4 Front 1 Rear

CCW

Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump

4.33

6.83

713-0068-032

2-Bolt SAE C

1-1/2 Straight Keyed

SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 1 Rear

CW

Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump

4.88

14.65

713-0091-032

2-Bolt SAE C

1-1/2 Straight Keyed

SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 1 Rear

CW

Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump

1.58

14.65

714-0066-032

2-Bolt SAE C

1-1/2 Straight Keyed

SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear

CCW

Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump

6.83

8.54

714-0067-032

2-Bolt SAE C

1-1/2 Straight Keyed

SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear

CW

Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump

6.83

8.54

714-0080-032

2-Bolt SAE C

1-1/2 Straight Keyed

SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear

CW

Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump

7.63

13.12

714-0081-032

2-Bolt SAE C

1-1/2 Straight Keyed

SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear

CCW

Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump

7.63

13.12

02-142081-1

2-Bolt SAE C

1-1/2 Straight Keyed

SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 3/4 Rear

CW

Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications

1.67

11.8

Product Questions & Answers (1)

Question by: Norm W on Dec 19, 2025, 6:20 AM
Will this double vane pump work for a dump truck application?
Answer by: Customer Support on Dec 20, 2025, 4:32 PM
Yes, this VMQ series double pump is listed as suitable for dump truck applications, along with oil and gas, metal cutting, wheel loaders and plastic injection molding.
