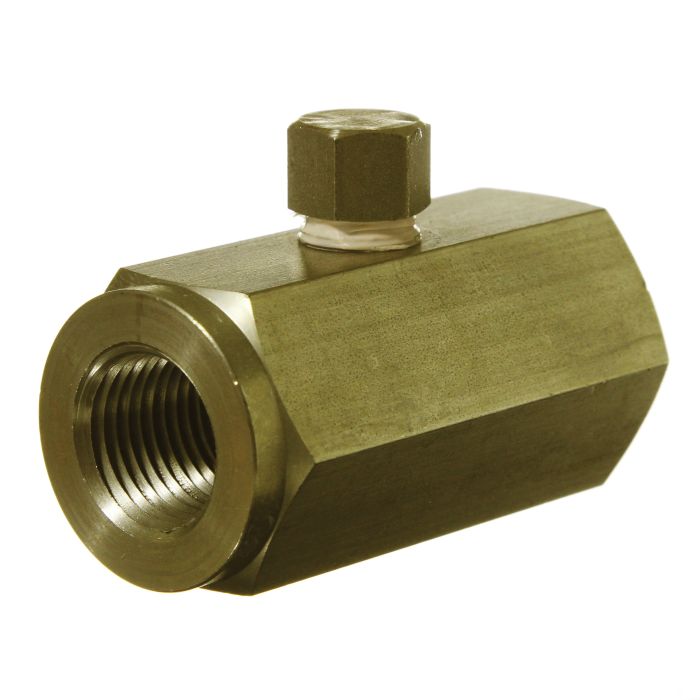

Brass Inline Hydraulic Check Valve, Female 1/2-14 NPT Ports, PSI Cracking Pressure, Up to 8.00 GPM & 2000.00 PSI

Description & Features

This Brass Inline Hydraulic Check Valve from Deltrol Fluid Products allows free flow in the direction of the arrow and provides a positive check in the opposite direction. With 1/2-14 NPT female ports, this valve is designed for use in pneumatic and lower pressure hydraulic systems.

This check valve features a low pressure differential required to open and close, with a cracking pressure between 1 and 2.5 PSI. It can handle a maximum operating pressure of 2000 PSI and a rated flow of up to 8.00 GPM.

SKU: C30B

Supplier Part Number (MPN): 10001-30

Alternate Part Numbers: C1CM36

Specifications

Brand Deltrol Fluid Products	a Dimensions 1.31 in	Ball Material Stainless Steel	Body Material Brass	c Dimensions 0.47 in	Configuration In-Line	Connection Type FNPT	Disc Material Stainless Steel	End Type Female	Lead-Free/Contains Lead Contains Lead	Nominal Size 1/2 in	Port Type NPTF	Seat Material Stainless Steel	Series PneuTrol Series
