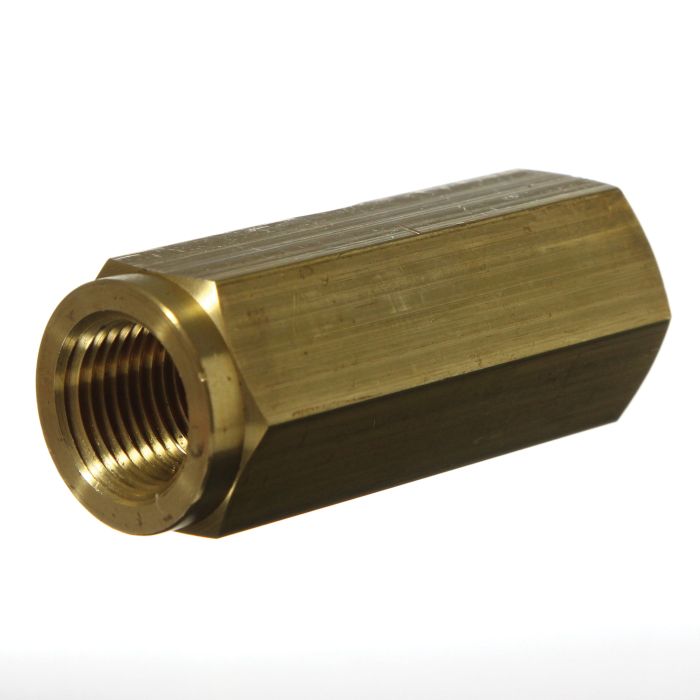

Brass Inline Hydraulic Check Valve, Female 1/8-27 NPT Ports, PSI Cracking Pressure, Up to 3.00 GPM & 2000.00 PSI

Description & Features

The DELTROL 1/8 brass check valve is engineered for optimal performance in pneumatic systems and low-pressure hydraulic systems. Constructed from durable brass it features female 1/8-27 NPT ports ensuring a secure and reliable connection.

Designed with a PSI cracking pressure ranging between 1 to 2.5 PSI this valve supports a rated flow of up to 3.00 GPM at a maximum operating pressure of 2000 PSI. The high flow rating is achieved with minimal pressure differential needed to open and close the valve enhancing system efficiency.

Featuring a stainless steel ball and spring Delrin ball follower and stainless steel retainer the valve offers robust and long-lasting performance. Its maximum operating temperature is 200F making it suitable for a variety of industrial applications.

Free flow is permitted in the direction of the arrow while a positive check is maintained in the opposite direction. This ensures operational integrity and system safety.

MPN: C1CN88

Supplier Part Number: EC10B

Specifications

Cracking Pressure (psi) 1 to 2.5	CV Factor 0.75	E 0.63	Brand Deltrol Fluid Products	Brand Deltrol Fluid Products	Pack Size 1.00	UOM EA	F 1.69	Materials Brass	Maximum Operating Pressure 2000	Rated Flow 3	Rated Flow 3	Size 1/8	Supplier Part Number EC10B	Thread 1 1/8-27 NPT	Alternate Part Numbers Alternate Part Number C1CN88, Alternate Part Number MI-00279230, Alternate Part Number MINO-00223F25523	Product Weight 0.15 lbs

Similar Products

Model Number	Size	Thread 1	Materials	Maximum Operating Pressure	Rated Flow	CV Factor	Cracking Pressure (psi)	E	F
EC20S Hydraulic/Pneumatic Check Valve	1/4	1/4-18 NPT	Steel	5000	6	1.4700	1 to 2.5	0.75	2
EDC25B Hydraulic/Pneumatic Check Valve	3/8	3/8-18 NPT	Brass	2000	10	3.3000	1 to 2.5	1	2.5
EDC25S Hydraulic/Pneumatic Check Valve	3/8	3/8-18 NPT	Steel	5000	10	3.3000	1 to 2.5	1	2.5
EDC30B Hydraulic/Pneumatic Check Valve	1/2	1/2-14 NPT	Brass	2000	12	3.6000	1 to 2.5	1.13	2.88
EDC30S Hydraulic/Pneumatic Check Valve	1/2	1/2-14 NPT	Steel	5000	12	3.6000	1 to 2.5	1.13	2.88
EDC35S Hydraulic/Pneumatic Check Valve	3/4	3/4-14 NPT	Steel	5000	20	5.4100	1 to 2.5	1.38	3.25
EC10B Hydraulic/Pneumatic Check Valve	1/8	1/8-27 NPT	Brass	2000	3	0.7500	1 to 2.5	0.63	1.69
EC20B Hydraulic/Pneumatic Check Valve	1/4	1/4-18 NPT	Brass	2000	6	1.4700	1 to 2.5	0.75	2
EC40S Hydraulic/Pneumatic Check Valve	1	1-11-1/2 NPT	Steel	5000	55	9.6000	3 to 5	1.75	4.5
EDC35B Hydraulic/Pneumatic Check Valve	3/4	3/4-14 NPT	Brass	2000	20	5.4100	1 to 2.5	1.38	3.25
