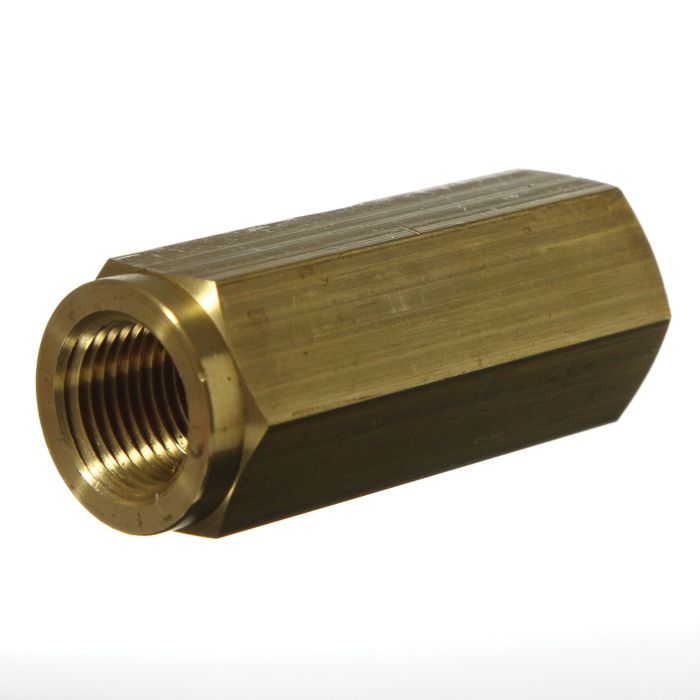

Brass Inline Hydraulic Check Valve, Female 3/4-14 NPT Ports, PSI Cracking Pressure, Up to 20.00 GPM & 2000.00 PSI

Description & Features

This high-quality hydraulic check valve from Deltrol Fluid Products ensures reliable performance in various systems. Fabricated from durable brass this valve features female 3/4-14 NPT ports making it ideal for both pneumatic and lower pressure hydraulic applications.

Its low pressure differential opens and closes efficiently coupled with a high flow rating of up to 20.00 GPM and a maximum operating pressure of 2000 PSI. The stainless steel ball and spring along with the Delrin ball follower enhance the durability and functionality of this valve.

Designed for free flow in the direction indicated by the arrow this brass inline hydraulic check valve includes a cracking pressure ranging from 1 to 2.5 PSI. With a maximum operating temperature of 200F it is suitable for various industrial uses ensuring positive check in reverse flow.

MPN: EDC35B

Supplier Part Number: EDC35B

Specifications

Cracking Pressure (psi) 1 to 2.5	CV Factor 5.41	E 1.38	Brand Deltrol Fluid Products	Brand Deltrol Fluid Products	Pack Size 1.00	UOM EA	F 3.25	Materials Brass	Maximum Operating Pressure 2000	Rated Flow 20	Rated Flow 20	Size 3/4	Supplier Part Number EDC35B	Thread 1 3/4-14 NPT	Alternate Part Numbers Alternate Part Number C1CN97, Alternate Part Number MI-00276040, Alternate Part Number MINO-00223F21788	Product Weight 0.98 lbs

Similar Products

Model Number	Size	Thread 1	Materials	Maximum Operating Pressure	Rated Flow	CV Factor	Cracking Pressure (psi)	E	F
EC20S Hydraulic/Pneumatic Check Valve	1/4	1/4-18 NPT	Steel	5000	6	1.4700	1 to 2.5	0.75	2
EDC25B Hydraulic/Pneumatic Check Valve	3/8	3/8-18 NPT	Brass	2000	10	3.3000	1 to 2.5	1	2.5
EDC25S Hydraulic/Pneumatic Check Valve	3/8	3/8-18 NPT	Steel	5000	10	3.3000	1 to 2.5	1	2.5
EDC30B Hydraulic/Pneumatic Check Valve	1/2	1/2-14 NPT	Brass	2000	12	3.6000	1 to 2.5	1.13	2.88
EDC30S Hydraulic/Pneumatic Check Valve	1/2	1/2-14 NPT	Steel	5000	12	3.6000	1 to 2.5	1.13	2.88
EDC35S Hydraulic/Pneumatic Check Valve	3/4	3/4-14 NPT	Steel	5000	20	5.4100	1 to 2.5	1.38	3.25
EC10B Hydraulic/Pneumatic Check Valve	1/8	1/8-27 NPT	Brass	2000	3	0.7500	1 to 2.5	0.63	1.69
EC20B Hydraulic/Pneumatic Check Valve	1/4	1/4-18 NPT	Brass	2000	6	1.4700	1 to 2.5	0.75	2
EC40S Hydraulic/Pneumatic Check Valve	1	1-11-1/2 NPT	Steel	5000	55	9.6000	3 to 5	1.75	4.5
EDC35B Hydraulic/Pneumatic Check Valve	3/4	3/4-14 NPT	Brass	2000	20	5.4100	1 to 2.5	1.38	3.25
