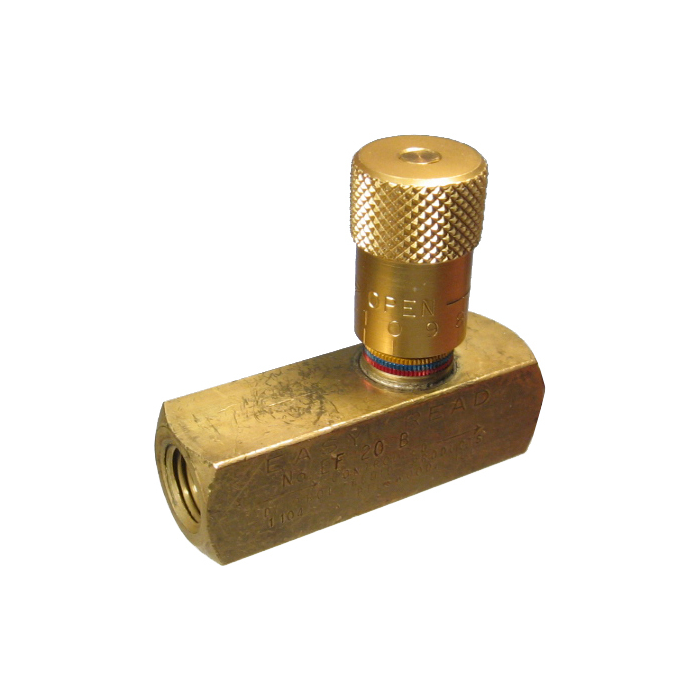

Brass Inline Easy Read Flow Control Valve, Female 3/4-14 NPT Ports, Up to 20.00 GPM & 2000.00 PSI

Description & Features

Designed for controlled unidirectional flow with free flow in the reverse direction, the Brass Inline Easy Read Flow Control Valve, Female 3/4-14 NPT Ports, Up to 20.00 GPM & 2000.00 PSI is well suited for pneumatic systems and lower-pressure hydraulic applications. The brass body construction with a brass needle and Viton® O-ring seal supports a working range of -15°F to 200°F at pressures up to 2000 PSI non-shock.

Color coding and a numerical readout on the metal knob allow precise, repeatable flow adjustments, each full turn corresponds to one color band, enabling fine-tuned control within a fraction of a turn. A set screw allows the adjustment to be locked once the desired flow rate is set. The Teflon® washer seal, stainless steel ball and spring, and Delrin ball follower round out the internal construction. Flow adjustment can be made under pressure without removing the valve from service.

SKU: EF35B

Supplier Part Number (MPN): 10120-55

Alternate Part Numbers: C1CP17, MI-00278642, MINO-00223F25044

Specifications

A 2.19	Adjustment No	B 1.38	C 3.75	Check Valve No	CV Factor 1.43	Brand Deltrol Fluid Products	Brand Deltrol Fluid Products	Pack Size 1.00	UOM EA	Materials Brass	Maximum Operating Pressure 2000	Rated Flow 20	Rated Flow 20	Size 3/4	Supplier Part Number EF35B	Thread 1 3/4-14 NPT	Alternate Part Numbers Alternate Part Number C1CP17, Alternate Part Number MI-00278642, Alternate Part Number MINO-00223F25044	Product Weight 1.86 lbs

Similar Products

Model Number	Size	Thread 1	Materials	Maximum Operating Pressure	Rated Flow	CV Factor	A	B	C
EF25B Hydraulic/Pneumatic Flow Control	3/8	3/8-18 NPT	Brass	2000	10	0.7600	1.63	1	2.88
EF25S Hydraulic/Pneumatic Flow Control	3/8	3/8-18 NPT	Steel	5000	10	0.7600	1.63	1	2.88
EF30S Hydraulic/Pneumatic Flow Control	1/2	1/2-14 NPT	Steel	5000	12	0.9300	1.97	1.63	3.44
EF10B Hydraulic/Pneumatic Flow Control	1/8	1/8-27 NPT	Brass	2000	3	0.2800	1.28	0.63	1.94
EF10S Hydraulic/Pneumatic Flow Control	1/8	1/8-27 NPT	Steel	5000	3	0.2800	1.28	0.63	1.94
EF20B Hydraulic/Pneumatic Flow Control	1/4	1/4-18 NPT	Brass	2000	6	0.5300	1.41	0.75	2.41
EF20S Hydraulic/Pneumatic Flow Control	1/4	1/4-18 NPT	Steel	5000	6	0.5300	1.41	0.75	2.41
EF30B Hydraulic/Pneumatic Flow Control	1/2	1/2-14 NPT	Brass	2000	12	0.9300	1.97	1.63	3.44
EF35B Hydraulic/Pneumatic Flow Control	3/4	3/4-14 NPT	Brass	2000	20	1.4300	2.19	1.38	3.75
EF35S Hydraulic/Pneumatic Flow Control	3/4	3/4-14 NPT	Steel	5000	20	1.4300	2.19	1.38	3.75

Product Questions & Answers (2)

Question by: Janet R on Oct 18, 2025, 7:42 AM

got a cylinder that needs to slow down one way but return quick, is that what this valve does?

Answer by: Customer Support on Oct 19, 2025, 7:29 PM

For a setup like that, it is meant to meter flow in one direction and allow free flow the other way. That gives you controlled speed one way, with an easier return in the reverse direction.

Question by: Jimmy E on Apr 15, 2025, 6:51 PM

What size wrench do I need to adjust the flow on this thing? Seems like it'd be easier than fiddling with that little knob.

Answer by: Customer Support on Apr 17, 2025, 2:44 PM

This valve is designed so you can adjust the flow under pressure just using the metal knob. The color coding and numerical readout on it let you make pretty precise adjustments. Once you get it where you want it, there's a set screw to lock it in place.
