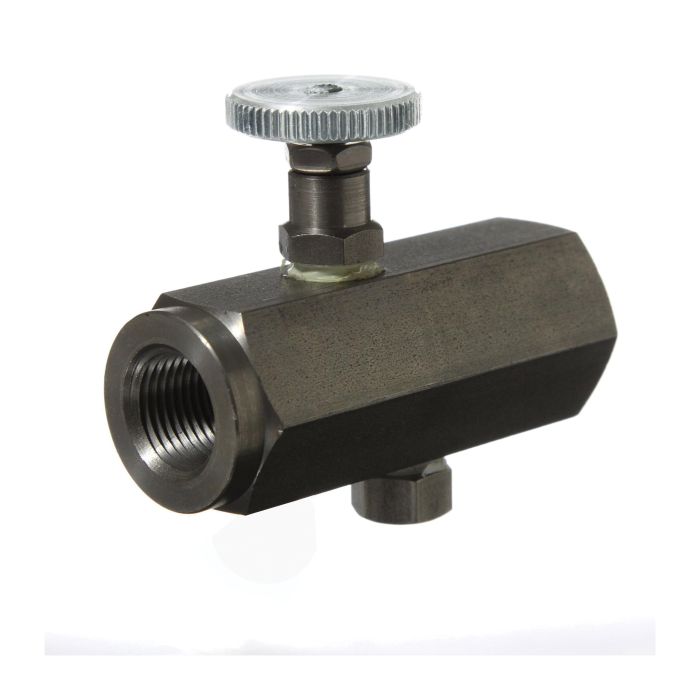

Steel Inline Flow Control Valve, Female 3/8-18 NPT Ports, Up to 5.00 GPM & 5000.00 PSI

Description & Features

Engineered for precision the steel inline flow control valve ensures controlled flow in one direction and free flow in the reverse. Its robust construction from carbon steel offers durability for hydraulic systems. Steel valves are ideally designed to handle up to 5000 PSI and a rated flow of up to 5.00 GPM.

Maintaining optimal performance in temperatures ranging from -15F to 200F the valve features a tamperproof adjustment key and an optional knurled knob. The locknut setting allows secure flow adjustments under pressure enhancing stability in various industrial applications.

The body is crafted from brass carbon steel or stainless steel with a needle made of 416 stainless steel for steel and stainless steel valves. Backup washers are made from Teflon and the tamperproof key is cadmium plated steel ensuring reliability in demanding conditions.

The steel inline flow control valve is equipped with Female 3/8-18 NPT ports making it suitable for precise hydraulic flow control. The inclusion of stainless-steel retainer and ball components increases longevity and operational efficiency.

Supplier Part Number: F25S

Specifications

A 1.06	Adjustment No	B 1.81	C 0.34	Check Valve No	CV Factor 0.78	D 2.75	Brand Deltrol Fluid Products	Brand Deltrol Fluid Products	Pack Size 1.00	UOM EA	Materials Steel	Maximum Operating Pressure 5000	Rated Flow 5	Rated Flow 5	Size 3/8	Supplier Part Number F25S	Thread 1 3/8-18 NPT	Alternate Part Numbers Alternate Part Number C1CP47, Alternate Part Number MI-00275497, Alternate Part Number MINO-00223F21208	Product Weight 0.67 lbs

Similar Products

Model Number	Size	Thread 1	Materials	Maximum Operating Pressure	Rated Flow	CV Factor	A	B	C	D
F10B Hydraulic/Pneumatic Flow Control	1/8	1/8-27 NPT	Brass	2000	1.5	0.2000	0.69	0.88	0.2	1.75
F20B Hydraulic/Pneumatic Flow Control	1/4	1/4-18 NPT	Brass	2000	3	0.4300	0.88	1	0.36	2.38
F20S Hydraulic/Pneumatic Flow Control	1/4	1/4-18 NPT	Steel	5000	3	0.4300	0.88	1	0.36	2.38
F25B Hydraulic/Pneumatic Flow Control	3/8	3/8-18 NPT	Brass	2000	5	0.7800	1.06	1.81	0.34	2.75
F25S Hydraulic/Pneumatic Flow Control	3/8	3/8-18 NPT	Steel	5000	5	0.7800	1.06	1.81	0.34	2.75
F30S Hydraulic/Pneumatic Flow Control	1/2	1/2-14 NPT	Steel	5000	8	1.2400	1.31	1.44	0.47	0.19

Product Questions & Answers (1)

Question by: Warren E on Oct 18, 2025, 9:34 AM

need to choke down flow one way but still let it come back free, is that what this valve does?

Answer by: Customer Support on Oct 19, 2025, 3:20 PM

For circuits where you want metered flow in one direction and a free return the other way, this inline flow control is built for that. It uses a needle adjustment to control the restricted direction, and it allows free flow in reverse.
