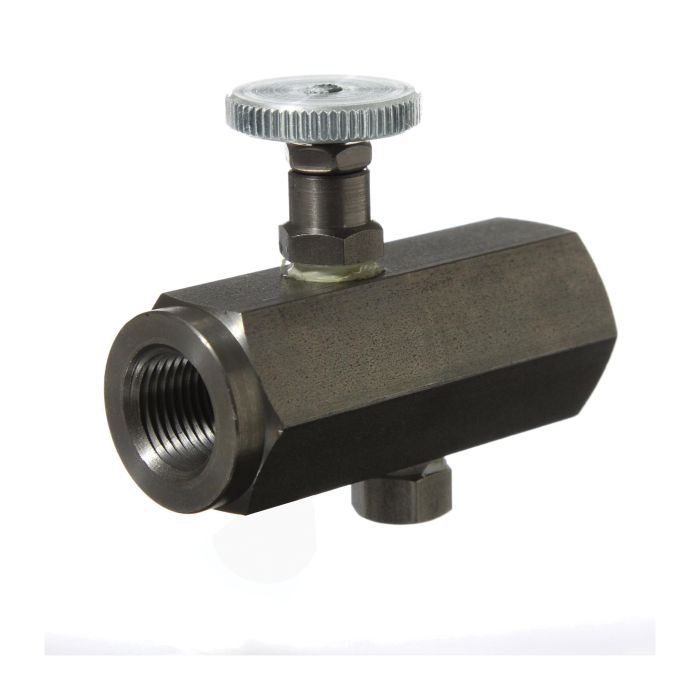

Steel Inline Flow Control Valve, Female 1/2-14 NPT Ports, Up to 8.00 GPM & 5000.00 PSI

Description & Features

This steel inline flow control valve from Deltrol Fluid Products features female 1/2-14 NPT ports and is rated for a maximum operating pressure of 5000 PSI. It precisely controls flow in one direction while allowing free flow in the opposite direction, with flow adjustment possible under pressure.

A tamperproof adjustment key and locknut are standard. This Hydraulic Flow Control Valve is suitable for use in hydraulic systems.

SKU: F30S

Supplier Part Number (MPN): 10000-23

Alternate Part Numbers: C1CP50, MI-00275500, MINO-00223F21210

Specifications

Brand Deltrol Fluid Products	a Dimensions 1.31 in	Actuator Type Knob	Adjustment Without Adjustment	b Dimensions 1.44 in	Body Material Steel	c Dimensions 0.47 in	Check Valve Without Check Valve	Connection Type FNPTF	d Dimensions 0.19 in	Dimensions 3-3/16 in L x 1-5/16 in W	Disc Material 440 Stainless Steel	Handle Material Aluminum	Knob Knurled	Mounting Type In-Line	Nominal Size 1/2 in	Number of Handles 1	Number of Ports/Ways 2	Operator Type Knob	Packing Material PTFE	Seal Material FKM	Seat Material FKM	Series F Flow Control Series	Softgoods Material FKM	Stem Material 416 Stainless Steel	Tamperproof Key Steel	Thread 1/2-14 NPT

Similar Products

Model Number	Size	Thread 1	Materials	Maximum Operating Pressure	Rated Flow	CV Factor	a Dimensions	b Dimensions	c Dimensions	d Dimensions
F10B Hydraulic/Pneumatic Flow Control	1/8	1/8-27 NPT	Brass	2000	1.5	0.2000	0.69 in	0.88 in	0.2 in	1-3/4 in
F20B Hydraulic/Pneumatic Flow Control	1/4	1/4-18 NPT	Brass	2000	3	0.4300	0.88 in	1 in	0.36 in	2.38 in
F20S Hydraulic/Pneumatic Flow Control	1/4	1/4-18 NPT	Steel	5000	3	0.4300	0.88 in	1 in	0.36 in	2.38 in
F25B Hydraulic/Pneumatic Flow Control	3/8	3/8-18 NPT	Brass	2000	5	0.7800	1.06 in	1.81 in	0.34 in	2-3/4 in
F25S Hydraulic/Pneumatic Flow Control	3/8	3/8-18 NPT	Steel	5000	5	0.7800	1.06 in	1.81 in	0.34 in	2-3/4 in

Product Questions & Answers (3)

Question by: Sheila F on Mar 8, 2026, 12:02 PM

flow adjustment on this thing, can you actually make changes while the system's still under pressure, or do you got to shut everything down first?

Answer by: Customer Support on Mar 9, 2026, 5:46 PM

You can adjust the flow while the system is under pressure. No need to shut down or depressurize before making changes. Once you've got it dialed in where you want it, the locknut lets you lock that setting in place so it doesn't drift on you.

Question by: Marvin H on Apr 29, 2025, 11:23 AM

got a cylinder that needs to slow down one way but return fast, is that what this valve does?

Answer by: Customer Support on May 1, 2025, 6:02 AM

For that kind of motion control, it meters flow in one direction so you can slow the actuator, and it lets flow go back free in the opposite direction through the check. The adjustment can be made while the system is under pressure, and you can lock the setting with the locknut.

Question by: Vince F on Oct 9, 2025, 6:27 PM

Reckon this'll work alright in my hydraulic setup? I'm pushin' about 7 GPM through it.

Answer by: Customer Support on Oct 10, 2025, 8:21 PM

With a rated flow of 8 GPM, it should be a good fit for your system running at 7 GPM. This valve is designed for hydraulic systems like yours.
