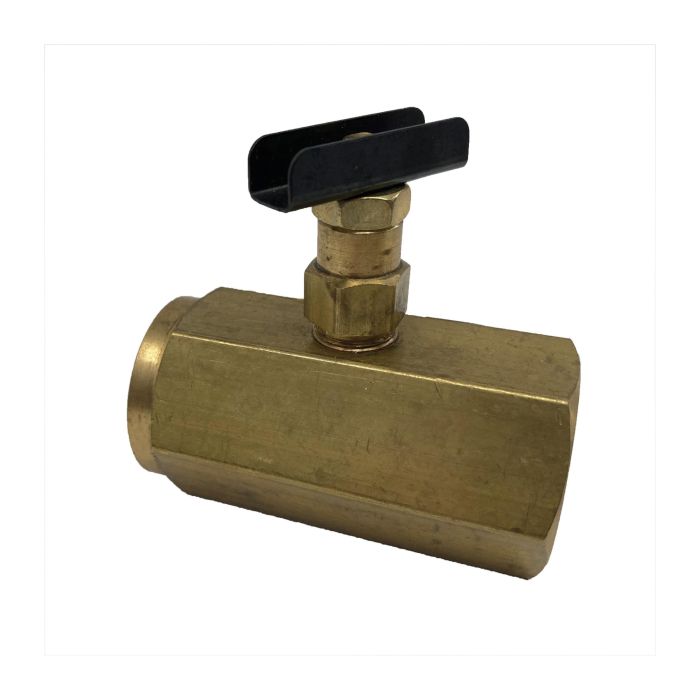

main product photo

Brass Inline Needle Valve, Female 1/4-18 NPT Ports, Up to 7.00 GPM & 2000.00 PSI

Ask A Question

Description & Features

This brass inline needle valve provides controlled flow in both directions. Flow adjustment can be made under pressure, and the setting can be locked with the locknut. The valve is suitable for pneumatic systems and lower-pressure hydraulic systems. This Brass Inline Needle Valve, Female 1/4-18 NPT Ports, Up to 7.00 GPM & 2000.00 PSI features a wide adjustment range due to its fine thread. A tamperproof adjustment key is standard, and a knurled knob is optional.

This needle valve has 1/4-18 NPT female ports, a rated flow of 7 GPM, and a maximum operating pressure of 2000 PSI. The body is constructed of brass, and the needle is brass. Viton O-ring packing and a Teflon backup washer provide reliable sealing. It is suitable for use in temperatures ranging from -15°F to 400°F.

SKU: N20B

Supplier Part Number (MPN): 10000-78

Alternate Part Numbers: C1DF59

Specifications

Brand
Deltrol Fluid Products
a Dimensions
0.88 in
Actuator Type
Manual
b Dimensions
1 in
Back-Up Washer
PTFE
Body Material
Brass
Connection Type
FNPT
Dimensions
2 in L x 1-15/16 in H
Disc Material
Brass
e Dimensions
2 in
Handle Material
Aluminum
Housing
Brass, Steel, 303 Stainless Steel
Knob
Aluminum
Lock Nut
Brass, Steel, Stainless Steel 303
Needle
Brass (Brass Valves), Stainless Steel 416 (Steel and Stainless Steel Valves)
Nominal Size
1/4 in
Number of Handles
1
Number of Ports/Ways
2-Way
O-Ring Material
FKM
Packing Material
PTFE
Seal Material
FKM/PTFE
Softgoods Material
FKM
Tamperproof Key
Steel
Thread 1
1/4-18 NPT
Trim Material
Brass

Similar Products

Model Number Size Thread 1 Materials Maximum Operating Pressure Rated Flow CV Factor a Dimensions b Dimensions e Dimensions Price Action
Brass Inline Needle Valve, Female 3/8-18 NPT Ports, Up to 13.50 GPM & 2000.00 PSI

N25B Hydraulic/Pneumatic Needle Valve

3/8

3/8-18 NPT

Brass

2000

13.5

0.7800

1.06 in

1.81 in

2-1/4 in

Product Questions & Answers (1)

Question by: Dustin H on Jun 11, 2025, 6:20 AM
got a pneumatic line running 1/4 NPT fittings and need to throttle flow without shutting things down completely, this valve work for that kind of adjustment under live pressure?
Answer by: Customer Support on Jun 12, 2025, 8:53 PM
flow adjustment on this one can be made while the system is still pressurized, so you don't have to kill the line every time you want to dial it in. The fine thread gives you a wide range of control, and once you've got the setting where you want it, the locknut holds it there so it doesn't drift on you. For a 1/4-18 NPT pneumatic setup, it's a solid fit.
