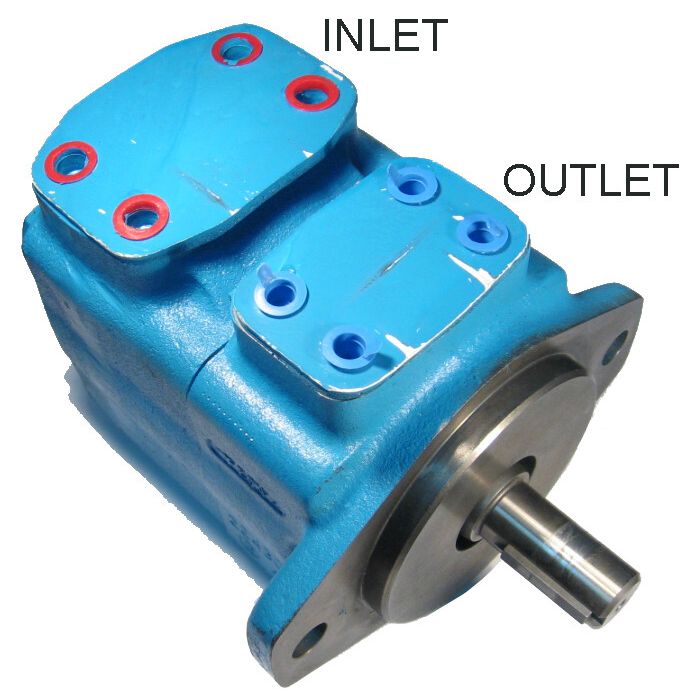

main product photo

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

Ask A Question

Description & Features

Designed for high-pressure, high-speed hydraulic applications, the Eaton Vickers 25VQ Series Vane Pump delivers a rated flow of 21.5 GPM at up to 2,700 RPM, with a maximum operating pressure of 3,000 PSI. Built around a size 14 ring and a 13-tooth SAE B splined shaft, it mounts via a 2-bolt SAE B flange and uses SAE 4-bolt flange ports sized at 1-1/2" inlet and 1" outlet.

This unit runs counterclockwise rotation, with the inlet port positioned 90 degrees CCW from the outlet. A displacement of 2.77 in³/rev and the series' focus on volumetric efficiency make it a practical choice for demanding industrial circuits. Typical applications include metal cutting machinery, plastic injection molding, dump trucks, wheel loaders, and oil and gas equipment. The 25VQ14A-11D20-L is cataloged under Eaton Vickers part number C1MF24 and is also marketed under the Danfoss Power Solutions brand.

SKU: 421472-8

Supplier Part Number (MPN): 421472-8

Alternate Part Numbers: 25VQ14A 11D20L, C1MZ35

Specifications

Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Displacement
2.77
Displacement
2.77
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications
Maximum Pressure
3000
Maximum Pressure
3000
Port Location
90 deg CCW from Outlet
Rated Flow
21.50
Rated Flow
21.5
Ring Size
14
Ring Size
14
Rotation
CCW
Seal Material
None
Series
25VQ
Shaft
13 Tooth SAE B Splined
Shaft
13 Tooth SAE B Splined
Special Features
None
Speed Rating
2700 RPM
Speed Rating
2700 RPM
Supplier Part Number
421472-8
Alternate Part Numbers
Alternate Part Number 25VQ14A 11D20L, Alternate Part Number C1MZ35
Product Weight
32.00 lbs
