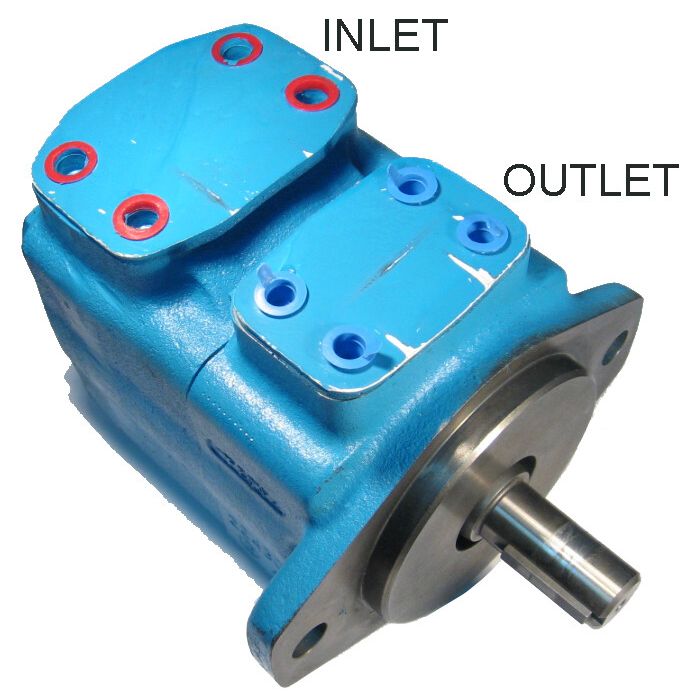

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

Description & Features

Designed for high-pressure, high-speed hydraulic circuits, the 25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation is a single vane pump from Eaton Vickers rated to 3000 PSI with a displacement of 4.12 and a speed rating of 2500 RPM. Rated flow is 31.5, and the inlet port is positioned 90 degrees clockwise from the outlet, a configuration that suits tight installation envelopes where port orientation is a constraint.

Mounting is via a 2-bolt SAE B flange, with SAE 4-bolt flange ports sized at 1-1/2" inlet and 1" outlet. The 13-tooth SAE B splined shaft provides a standard drive interface across compatible power units. Built to handle demanding duty cycles, this pump is suited for plastics machinery, press machines, die casting equipment, machine tools, test equipment, primary metal processing, pulp and paper, wood processing, oil and gas, marine, and general industrial applications. Longer service life and consistent volumetric efficiency are key design characteristics of the 25VQ series.

SKU: 421477-6

Supplier Part Number (MPN): 421477-6

Specifications

Application Plastics Machinery, Press Machine, Die Casting, Machine Tools, Test Equipment, Primary Metal, Pulp & Paper, Wood Processing, Oil & Gas, Marine, and General Industrial	Displacement 4.12	Displacement 4.12	Brand DANFOSS POWER SOLUTIONS II LLC (VICKERS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Longer operating life\|Oustanding volumetric efficiency\|Built for high-pressure, high-speed applications	Maximum Pressure 3000	Maximum Pressure 3000	Port Location 90 deg CW from Outlet	Rated Flow 31.50	Rated Flow 31.5	Ring Size 21	Ring Size 21	Rotation CCW	Seal Material None	Series 25VQ	Shaft 13 Tooth SAE B Splined	Shaft 13 Tooth SAE B Splined	Special Features None	Speed Rating 2500 RPM	Speed Rating 2500 RPM	Supplier Part Number 421477-6	Product Weight 32.00 lbs

Similar Products

Model Number	Part Number	Shaft	Displacement	Ring Size	Rated Flow	Port Location	Rotation	Maximum Pressure	Speed Rating
25VQ21A-1B20 25VQ Series Vane Pump	416457-2	7/8 Straight Keyed	4.12	21	31.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ21A-1C20 25VQ Series Vane Pump	416457-3	7/8 Straight Keyed	4.12	21	31.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ21A-1D20 25VQ Series Vane Pump	416457-4	7/8 Straight Keyed	4.12	21	31.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ21A-1A20 25VQ Series Vane Pump	416457-5	7/8 Straight Keyed	4.12	21	31.5	Opposite Outlet	CW	3000	2500 RPM
25VQ21A-1B20-L 25VQ Series Vane Pump	416457-6	7/8 Straight Keyed	4.12	21	31.5	90 deg CW from Outlet	CCW	3000	2500 RPM
25VQ21A-1C20-L 25VQ Series Vane Pump	416457-7	7/8 Straight Keyed	4.12	21	31.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ21A-1D20-L 25VQ Series Vane Pump	416457-8	7/8 Straight Keyed	4.12	21	31.5	90 deg CCW from Outlet	CCW	3000	2500 RPM
25VQ17A-1B20 25VQ Series Vane Pump	417992-2	7/8 Straight Keyed	3.37	17	25.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ17A-1C20 25VQ Series Vane Pump	417992-3	7/8 Straight Keyed	3.37	17	25.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ17A-1D20- 25VQ Series Vane Pump	417992-4	7/8 Straight Keyed	3.37	17	25.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ17A-1A20-L 25VQ Series Vane Pump	417992-5	7/8 Straight Keyed	3.37	17	25.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ17A-1B20-L 25VQ Series Vane Pump	417992-6	7/8 Straight Keyed	3.37	17	25.5	90 deg CW from Outlet	CCW	3000	2500 RPM
25VQ17A-1C20-L 25VQ Series Vane Pump	417992-7	7/8 Straight Keyed	3.37	17	25.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ17A-1D20-L 25VQ Series Vane Pump	417992-8	7/8 Straight Keyed	3.37	17	25.5	90 deg CCW from Outlet	CCW	3000	2500 RPM
25VQ14A-1B20 25VQ Series Vane Pump	417993-2	7/8 Straight Keyed	2.77	14	21.5	90 deg CW from Outlet	CW	3000	2700 RPM
25VQ14A-1C20 25VQ Series Vane Pump	417993-3	7/8 Straight Keyed	2.77	14	21.5	in-Line with Outlet	CW	3000	2700 RPM
25VQ14A-1D20 25VQ Series Vane Pump	417993-4	7/8 Straight Keyed	2.77	14	21.5	90 deg CCW from Outlet	CW	3000	2700 RPM
25VQ14A-1A20-L 25VQ Series Vane Pump	417993-5	7/8 Straight Keyed	2.77	14	21.5	Opposite Outlet	CCW	3000	2700 RPM
25VQ14A-1C20-L 25VQ Series Vane Pump	417993-7	7/8 Straight Keyed	2.77	14	21.5	in-Line with Outlet	CCW	3000	2700 RPM
25VQ12A-1B20 25VQ Series Vane Pump	417994-2	7/8 Straight Keyed	2.45	12	18	90 deg CW from Outlet	CW	3000	2700 RPM
25VQ12A-1C20 25VQ Series Vane Pump	417994-3	7/8 Straight Keyed	2.45	12	18	in-Line with Outlet	CW	3000	2700 RPM
25VQ12A-1D20 25VQ Series Vane Pump	417994-4	7/8 Straight Keyed	2.45	12	18	90 deg CCW from Outlet	CW	3000	2700 RPM
25VQ12A-1A20-L 25VQ Series Vane Pump	417994-5	7/8 Straight Keyed	2.45	12	18	Opposite Outlet	CCW	3000	2700 RPM
25VQ12A-1C20-L 25VQ Series Vane Pump	417994-7	7/8 Straight Keyed	2.45	12	18	in-Line with Outlet	CCW	3000	2700 RPM
25VQ14A-11B20 25VQ Series Vane Pump	421472-2	13 Tooth SAE B Splined	2.77	14	21.5	90 deg CW from Outlet	CW	3000	2700 RPM
25VQ14A-11C20 25VQ Series Vane Pump	421472-3	13 Tooth SAE B Splined	2.77	14	21.5	in-Line with Outlet	CW	3000	2700 RPM
25VQ14A-11D20 25VQ Series Vane Pump	421472-4	13 Tooth SAE B Splined	2.77	14	21.5	90 deg CCW from Outlet	CW	3000	2700 RPM
25VQ14A-11A20-L 25VQ Series Vane Pump	421472-5	13 Tooth SAE B Splined	2.77	14	21.5	Opposite Outlet	CCW	3000	2700 RPM
25VQ14A-11B20-L 25VQ Series Vane Pump	421472-6	13 Tooth SAE B Splined	2.77	14	21.5	90 deg CW from Outlet	CCW	3000	2700 RPM
25VQ14A-11C20-L 25VQ Series Vane Pump	421472-7	13 Tooth SAE B Splined	2.77	14	21.5	in-Line with Outlet	CCW	3000	2700 RPM
25VQ14A-11D20-L 25VQ Series Vane Pump	421472-8	13 Tooth SAE B Splined	2.77	14	21.5	90 deg CCW from Outlet	CCW	3000	2700 RPM
25VQ17A-11B20 25VQ Series Vane Pump	421475-2	13 Tooth SAE B Splined	3.37	17	25.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ17A-11C20 25VQ Series Vane Pump	421475-3	13 Tooth SAE B Splined	3.37	17	25.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ17A-11D20 25VQ Series Vane Pump	421475-4	13 Tooth SAE B Splined	3.37	17	25.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ17A-11A20-L 25VQ Series Vane Pump	421475-5	13 Tooth SAE B Splined	3.37	17	25.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ17A-11B20-L 25VQ Series Vane Pump	421475-6	13 Tooth SAE B Splined	3.37	17	25.5	90 deg CW from Outlet	CCW	3000	2500 RPM
25VQ17A-11C20-L 25VQ Series Vane Pump	421475-7	13 Tooth SAE B Splined	3.37	17	25.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ17A-11D20-L 25VQ Series Vane Pump	421475-8	13 Tooth SAE B Splined	3.37	17	25.5	90 deg CCW from Outlet	CCW	3000	2500 RPM
25VQ21A-11B20 25VQ Series Vane Pump	421477-2	13 Tooth SAE B Splined	4.12	21	31.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ21A-11C20 25VQ Series Vane Pump	421477-3	13 Tooth SAE B Splined	4.12	21	31.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ21A-11D20 25VQ Series Vane Pump	421477-4	13 Tooth SAE B Splined	4.12	21	31.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ21A-11A20-L 25VQ Series Vane Pump	421477-5	13 Tooth SAE B Splined	4.12	21	31.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ21A-11B20-L 25VQ Series Vane Pump	421477-6	13 Tooth SAE B Splined	4.12	21	31.5	90 deg CW from Outlet	CCW	3000	2500 RPM
25VQ21A-11C20-L 25VQ Series Vane Pump	421477-7	13 Tooth SAE B Splined	4.12	21	31.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ21A-11D20-L 25VQ Series Vane Pump	421477-8	13 Tooth SAE B Splined	4.12	21	31.5	90 deg CCW from Outlet	CCW	3000	2500 RPM
25VQ12A-11B20 25VQ Series Vane Pump	429946-2	13 Tooth SAE B Splined	2.45	12	18	90 deg CW from Outlet	CW	3000	2700 RPM
25VQ12A-11C20 25VQ Series Vane Pump	429946-3	13 Tooth SAE B Splined	2.45	12	18	in-Line with Outlet	CW	3000	2700 RPM
25VQ12A-11D20 25VQ Series Vane Pump	429946-4	13 Tooth SAE B Splined	2.45	12	18	90 deg CCW from Outlet	CW	3000	2700 RPM
25VQ12A-11A20-L 25VQ Series Vane Pump	429946-5	13 Tooth SAE B Splined	2.45	12	18	Opposite Outlet	CCW	3000	2700 RPM
25VQ12A-11B20-L 25VQ Series Vane Pump	429946-6	13 Tooth SAE B Splined	2.45	12	18	90 deg CW from Outlet	CCW	3000	2700 RPM
25VQ12A-11C20-L 25VQ Series Vane Pump	429946-7	13 Tooth SAE B Splined	2.45	12	18	in-Line with Outlet	CCW	3000	2700 RPM
25VQ12A-11D20-L 25VQ Series Vane Pump	429946-8	13 Tooth SAE B Splined	2.45	12	18	90 deg CCW from Outlet	CCW	3000	2700 RPM
25VQ19A-1B20 25VQ Series Vane Pump	578308-2	7/8 Straight Keyed	3.74	19	28.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ19A-1C20 25VQ Series Vane Pump	578308-3	7/8 Straight Keyed	3.74	19	28.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ19A-1D20 25VQ Series Vane Pump	578308-4	7/8 Straight Keyed	3.74	19	28.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ19A-1A20-L 25VQ Series Vane Pump	578308-5	7/8 Straight Keyed	3.74	19	28.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ19A-1C20 -L 25VQ Series Vane Pump	578308-7	7/8 Straight Keyed	3.74	19	28.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ19A-11B20 25VQ Series Vane Pump	629379-2	13 Tooth SAE B Splined	3.74	19	28.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ19A-11C20 25VQ Series Vane Pump	629379-3	13 Tooth SAE B Splined	3.74	19	28.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ19A-11D20 25VQ Series Vane Pump	629379-4	13 Tooth SAE B Splined	3.74	19	28.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ19A-11A20-L 25VQ Series Vane Pump	629379-5	13 Tooth SAE B Splined	3.74	19	28.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ19A-11C20-L 25VQ Series Vane Pump	629379-7	13 Tooth SAE B Splined	3.74	19	28.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ21A-1A20-L 25VQ Series Vane Pump	416457-1	7/8 Straight Keyed	4.12	21	31.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ17A-1A20 25VQ Series Vane Pump	417992-1	7/8 Straight Keyed	3.37	17	25.5	Opposite Outlet	CW	3000	2500 RPM
25VQ14A-1A20 25VQ Series Vane Pump	417993-1	7/8 Straight Keyed	2.77	14	21.5	Opposite Outlet	CW	3000	2700 RPM
25VQ12A-1A20 25VQ Series Vane Pump	417994-1	7/8 Straight Keyed	2.45	12	18	Opposite Outlet	CW	3000	2700 RPM
25VQ14A-11A20 25VQ Series Vane Pump	421472-1	13 Tooth SAE B Splined	2.77	14	21.5	Opposite Outlet	CW	3000	2700 RPM
25VQ17A-11A20 25VQ Series Vane Pump	421475-1	13 Tooth SAE B Splined	3.37	17	25.5	Opposite Outlet	CW	3000	2500 RPM
25VQ21A-11A20 25VQ Series Vane Pump	421477-1	13 Tooth SAE B Splined	4.12	21	31.5	Opposite Outlet	CW	3000	2500 RPM
25VQ12A-11A20 25VQ Series Vane Pump	429946-1	13 Tooth SAE B Splined	2.45	12	18	Opposite Outlet	CW	3000	2700 RPM
25VQ19A-1A20 25VQ Series Vane Pump	578308-1	7/8 Straight Keyed	3.74	19	28.5	Opposite Outlet	CW	3000	2500 RPM
25VQ19A-11A20 25VQ Series Vane Pump	629379-1	13 Tooth SAE B Splined	3.74	19	28.5	Opposite Outlet	CW	3000	2500 RPM

Product Questions & Answers (2)

Question by: Joyce M on Jan 27, 2026, 7:03 PM

got a 25VQ21A-11B20-L pump in here now, is this the same one with the CCW rotation and the SAE B splined shaft?

Answer by: Customer Support on Jan 29, 2026, 8:18 AM

Match-up wise, it lines up with model number 25VQ21A-11B20-L, CCW rotation, and a 13 tooth SAE B splined shaft in the 25VQ series with the 21 ring size.

Question by: Travis W on Sep 12, 2025, 10:16 AM

pump puts out 31.5 GPM at what speed, and is that at full 3000 PSI or just rated flow conditions?

Answer by: Customer Support on Sep 13, 2025, 7:16 PM

Rated flow of 31.5 GPM is at the 2500 RPM speed rating for this pump. The maximum pressure is 3000 PSI, so that flow figure and that pressure ceiling are both part of the same operating spec. Running it right at the pressure limit continuously is a different conversation than hitting peak flow, but both numbers come from the same design envelope on this unit.
