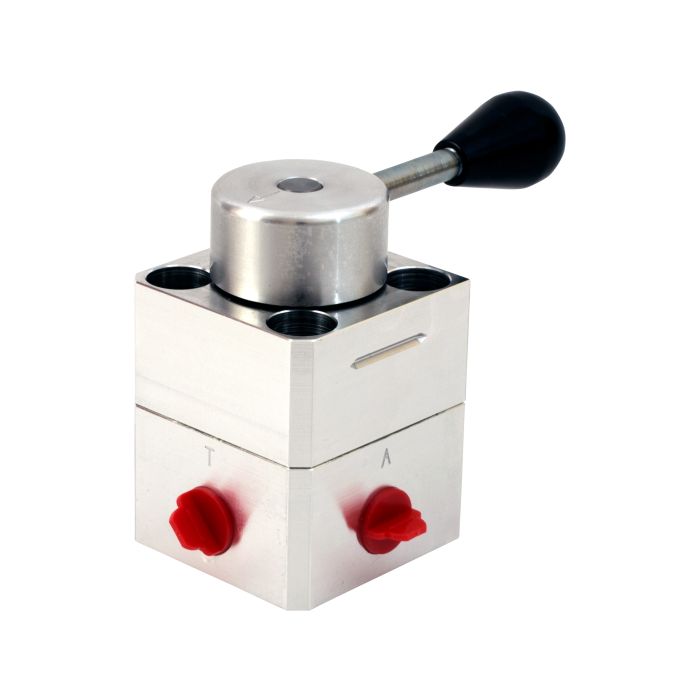

main product photo

180 Series Rotary Shear Directional Control Valve 182-E0F | TSK6333-AG10

Ask A Question

Description & Features

The 182-E0F is a rotary shear directional control valve from Webtec's 180 Series, designed for high-pressure hydraulic circuits where tight leakage control is essential. Rated to 700 bar (10,000 psi) with a maximum flow of 15 L/min (4 US gpm), it suits demanding low-flow applications where pressure integrity cannot be compromised.

Ported at 3/8" NPTF, the valve is constructed with an aluminium and black phenolic thermoset plastic body, carbon steel internals, and NBR seals, giving it a compact and durable form at 1.3 kg. It handles fluid temperatures from -30 to 120°C (-22 to 248°F) and is suited for ambient conditions between -20 and 50°C (-4 to 122°F). Compatible with mineral oils to ISO 11158 as standard, with alternative fluids available on request.

SKU: TSK6333-AG10

Supplier Part Number (MPN): 182-E0F

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
TSK6333-AG10
Ambient Temperature
-20 to 50°C, -4 to 122°F
Body Materials
Aluminium, Black Phenolic Thermoset Plastic
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Flow Range (US gpm)
4
Flow Range (L/min)
15
Fluid Temperature Range
-30 to 120°C, -22 to 248°F
Gross Weight
1.4 kg, 3.1 lbs
Internal Materials
Carbon Steel
Maximum Rated Flow
15 L/min, 4 US gpm
Max Rated Pressure
700 bar, 10000 psi
Net Weight
1.3 kg, 2.9 lbs
Porting
3/8” NPTF
Seals
NBR
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (2)

Question by: Hank P on Jun 24, 2025, 7:24 PM
How much pressure can the 182-E0F valve handle?
Answer by: Customer Support on Jun 26, 2025, 7:32 AM
The 182-E0F valve is built to withstand a maximum pressure of 700 bar or 10,000 psi, making it suitable for high-pressure systems.
Question by: Ross S on Jun 26, 2025, 7:07 AM
what's the max pressure this valve is rated for? trying to figure out if it'll hold up on a high-pressure test circuit we're putting together
Answer by: Customer Support on Jun 27, 2025, 11:11 AM
Rated to 700 bar (10,000 psi), so it's built for serious pressure applications. The rotary shear design keeps leakage near zero even at those levels, which makes it a solid fit for high-pressure test circuits where even small leaks cause problems. Flow is capped at 15 L/min (4 US gpm), so just make sure your circuit stays within that range.
