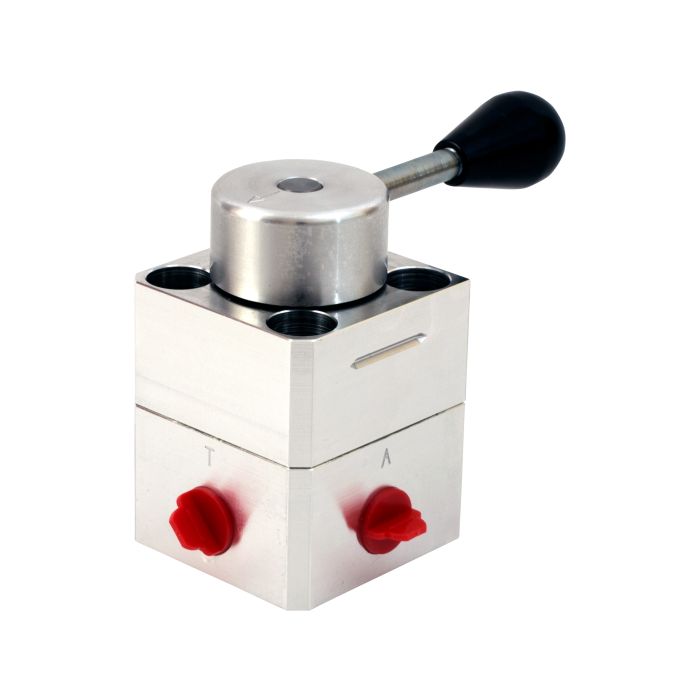

180 Series Rotary Shear Directional Control Valve 182-E2F-B | TSK6333-BJ10

The 180 Series Rotary Shear Directional Control Valve, model 182-E2F-B, is expertly designed for precise hydraulic flow management, ensuring high-pressure applications achieve near-zero leakage. This robust valve accommodates a maximum flow of 38 L/min (10 US gpm) and can withstand pressures up to 207 bar (3000 psi). Its versatile fluid temperature range of -30 to 120°C (-22 to 248°F) makes it suitable for diverse environments, while the ambient temperature tolerance of -20 to 50°C (-4 to 122°F) enhances its adaptability.

Constructed with durable materials such as aluminum and black phenolic thermoset plastic, the valve's body is complemented by carbon steel internals and NBR seals for enhanced durability. Compatible with mineral oils in line with ISO 11158, this valve features a 3/8” NPTF porting, providing seamless integration into existing systems. Weighing a net 1.3 kg (2.9 lbs), this directional control valve is both lightweight and efficient, embodying Webtec's commitment to quality and performance in hydraulic measurement.

SKU: TSK6333-BJ10

Supplier Part Number (MPN): 182-E2F-B
