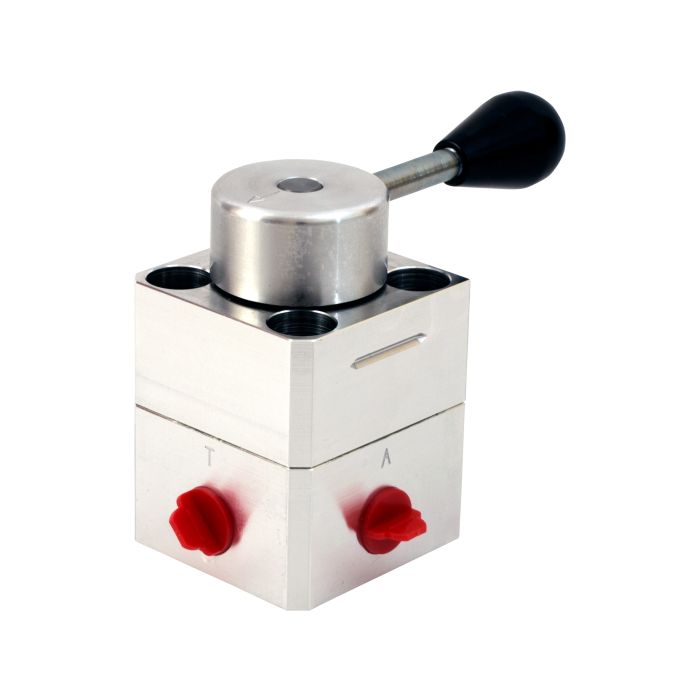

180 Series Rotary Shear Directional Control Valve 183-E2E | TSK6333-0M01

Part of the WEBTEC 180 Series, the 183-E2E rotary shear directional control valve is built for reliable flow path selection in hydraulic systems where leakage must be kept to an absolute minimum. Rated to 207 bar (3000 psi) with a maximum flow capacity of 38 L/min (10 US gpm), it handles the demands of a wide range of industrial hydraulic circuits. The 3/8" NPTF porting suits common circuit configurations, while the aluminium body and phenolic resin knob keep the overall weight to just 1.3 kg (2.9 lbs).

Carbon steel internals and NBR seals provide durable performance across a fluid temperature range of -30 to 120°C (-22 to 248°F). The valve is compatible with mineral oils to ISO 11158 as standard, with other fluids available on request. Ambient service conditions are rated from -20 to 50°C (-4 to 122°F).

SKU: TSK6333-0M01

Supplier Part Number (MPN): 183-E2E
