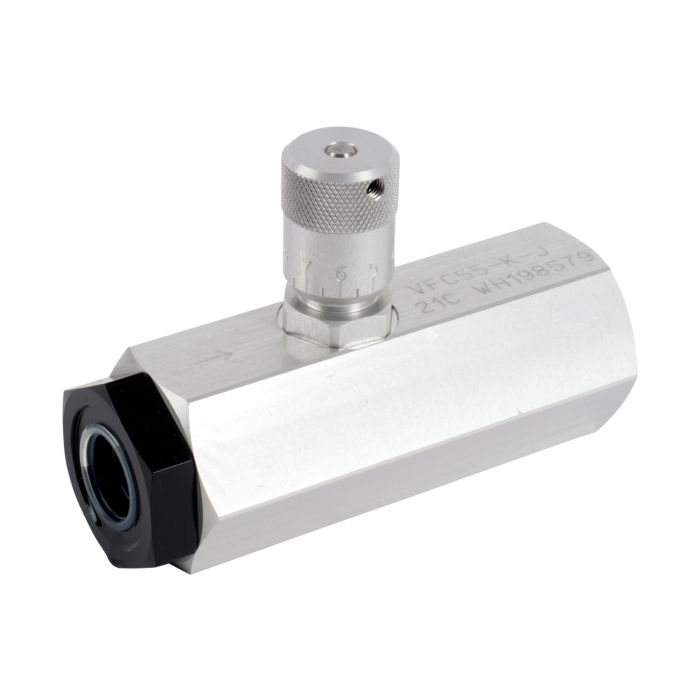

VFC Series Variable Flow Pressure Compensated Control Valve VFC55-K-G | TSK3018-10

Ask A Question

Description & Features

The VFC Series Variable Flow Pressure Compensated Control Valve, model VFC55-K-G, is expertly designed to manage hydraulic flow with precision and reliability. This two-port valve ensures consistent performance across a flow range of 2 to 55 L/min (0.5 to 15 US gpm) and is capable of handling pressures up to 210 bar (3000 psi). Its robust construction features an aluminum body with carbon steel internals, ensuring durability and long-lasting service in demanding environments.

Compatible with mineral oils conforming to ISO 11158, this valve operates efficiently in a wide fluid temperature range of -30 to 120 °C (-22 to 248 °F). The VFC55-K-G integrates seamlessly into your system with its 3/4” -16UN #8 SAE ORB porting, and its NBR/PTFE seals provide a reliable barrier against leaks. With a net weight of just 0.5 kg, it offers a lightweight yet robust solution for hydraulic flow control.

SKU: TSK3018-10

Supplier Part Number (MPN): VFC55-K-G

Specifications

Brand
Webtec
Pack Size
1.00
UOM
EA
Ambient Temperature
-30 to 50 °C, -22 to 122 °F
Body Materials
Aluminium
Compatible Fluid
Mineral oils to ISO 11158
Flow Range (US gpm)
0.5 - 15
Flow Range (L/min)
2 - 55
Fluid Temperature Range
-30 to 120 °C, -22 to 248 °F
Gross Weight
0.5 kg, 1.1 lbs
Internal Materials
Carbon Steel
Maximum Rated Flow
55 L/min, 15 US gpm
Max Rated Pressure
210 bar, 3000 psi
Net Weight
0.5 kg, 1.1 lbs
Porting
3/4” -16UN #8 SAE ORB
Seals
NBR / PTFE
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (1)

Question by: Kurt B on Mar 3, 2026, 11:40 AM
How does the VFC55-K-G handle different flow rates?
Answer by: Customer Support on Mar 4, 2026, 6:23 PM
The VFC55-K-G is a versatile flow control valve that manages flow rates efficiently within a range of 2 to 55 L/min or 0.5 to 15 US gpm. This makes it suitable for various applications where precise flow adjustments are needed.
