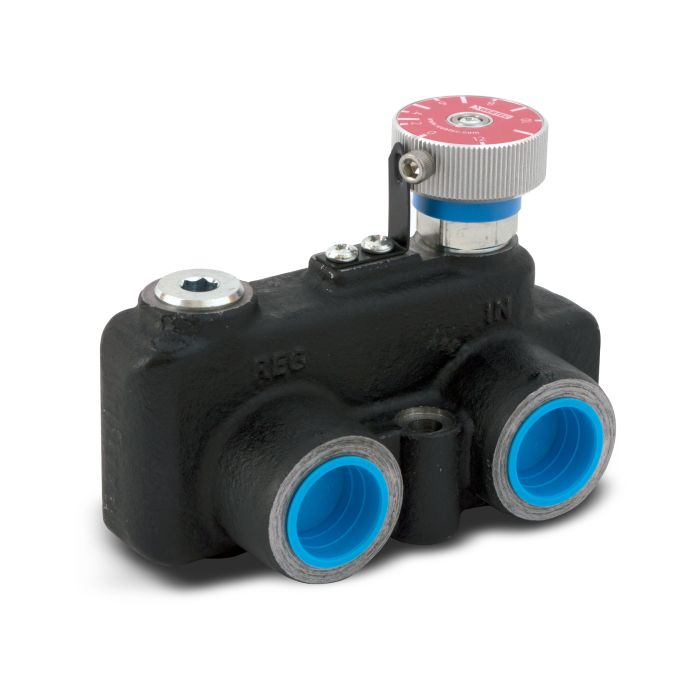

main product photo

VFD120 Series Variable Priority Flow Dividers VFD120RD160A SINGLE PACK | TSK6602-235

Ask A Question

Description & Features

The WEBTEC VFD120 Series Variable Priority Flow Dividers are engineered to deliver precise control over hydraulic actuator speeds by adjusting the flow rate. With a maximum flow capacity of 60 L/min (16 US gpm) and maximum pressure handling of 420 bar (6000 psi), these flow dividers are robust solutions for demanding industrial applications. They operate efficiently across a fluid temperature range of -30 to 120 °C and are compatible with mineral oils conforming to ISO 11158 standards. The durable construction includes steel components housed in a cast SG Iron body, complemented by an aluminum knob for easy adjustments.

Designed for versatility, this model features 3/4” NPTF porting, ensuring compatibility with a wide range of hydraulic systems. Its construction incorporates hardened steel and high carbon spring steel for internal components, while NBR and PTFE seals ensure reliable performance under varying conditions. With a net weight of 2 kg, the VFD120RD160A model is both compact and efficient, making it ideal for diverse applications.

SKU: TSK6602-235

Supplier Part Number (MPN): VFD120RD160A

Specifications

Brand
Webtec
Pack Size
1.00
UOM
EA
Ambient Temperature
-30 to 50 °C, -22 to 122 °F
Body Materials
Steel components in cast SG Iron body. Aluminium knob.
Compatible Fluid
Mineral oils to ISO 11158
Flow Range (US gpm)
0 - 16
Flow Range (L/min)
0 - 60
Fluid Temperature Range
-30 to 120 °C, -22 to 248 °F
Gross Weight
2 kg, 4.4 lbs
Internal Materials
Hardened steel & high carbon spring stee
Maximum Rated Flow
60 L/min, 16 US gpm
Max Rated Pressure
420 bar, 6000 psi
Net Weight
2 kg, 4.4 lbs
Porting
3/4” NPTF
Seals
NBR / PTFE
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (1)

Question by: Steve B on Jan 4, 2026, 11:18 AM
what's the max pressure this thing can handle? running a pretty demanding hydraulic circuit and need to know if it'll hold up
Answer by: Customer Support on Jan 5, 2026, 6:24 PM
Rated to 420 bar (6000 psi), so it's built for high-demand circuits without issue. The body is cast SG iron with hardened steel internals and high carbon spring steel, which keeps it solid under sustained pressure loads. NBR and PTFE seals are in there as well, so the construction is pretty robust all around.
