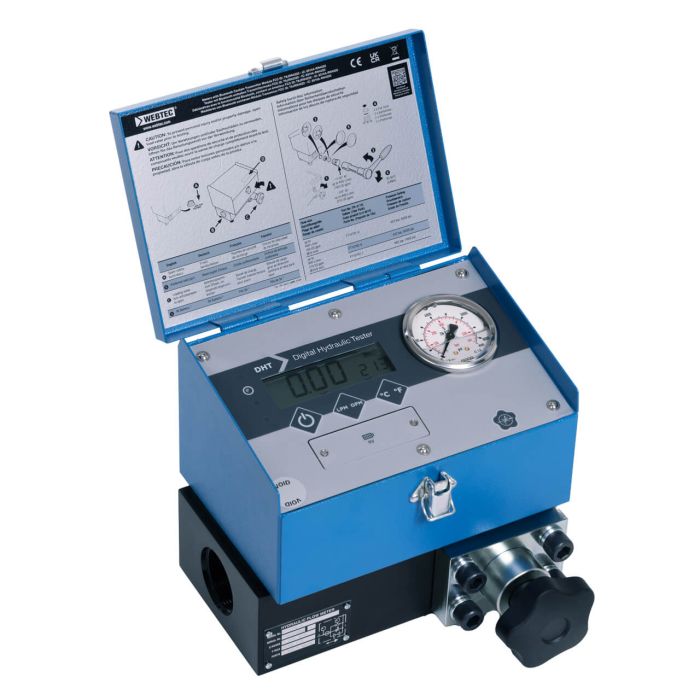

DHT Series THIRD GENERATION - Digital Hydraulic Tester DHT08-S | FT11514-31

The DHT Series Third Generation digital hydraulic tester is a self-contained instrument designed for diagnosing hydraulic systems in the field or workshop. The DHT08-S handles flow from 20 to 800 L/min (5 to 210 US gpm) and withstands pressures up to 480 bar (7000 psi), with measurement accuracies of ±1% full scale for flow and ±1.6% full scale for pressure. Temperature is measured to ±1°C across a fluid range of -10 to 125°C (14 to 257°F).

Porting is 1-7/8" -12UN #24 SAE ORB, and seals are FKM for compatibility with mineral oils to ISO 11158. The unit is rated IP65 and powered by a standard 9V alkaline battery with approximately 240 hours of service life, making it practical for extended use away from a power source. The painted mild steel and high tensile aluminium body weighs 10 kg (22 lbs).

SKU: FT11514-31

Supplier Part Number (MPN): DHT08-S
