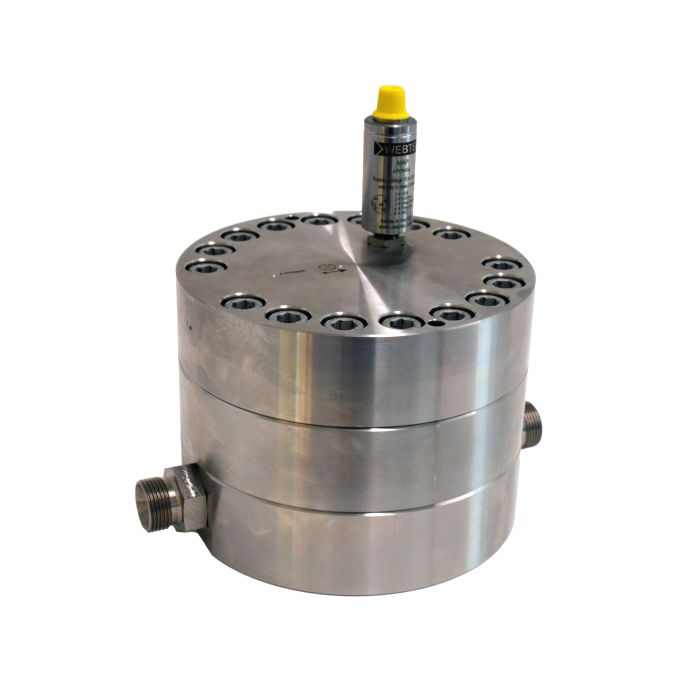

main product photo

GF Series Positive Displacement Flow Meters with Conditioned Output GF150-MAP-S-6 | FT10890-07

Ask A Question

Description & Features

The WEBTEC GF Series Positive Displacement Flow Meters are expertly designed to deliver accurate flow measurement in demanding hydraulic applications. This model, GF150-MAP-S-6, handles flow rates from 1 to 150 L/min (0.26 to 40 US gpm) with a remarkable accuracy of ±0.5% within its optimal operating range. Built with robust stainless steel, it withstands pressures up to 420 bar (6000 psi) and operates efficiently in fluid temperatures from -40 to 120°C (-40 to 284°F). The meter is compatible with mineral oils adhering to ISO 11158 standards, ensuring versatility in various industrial settings.

Equipped with a 1-1/16" -16UN JIC male port and an M12 5-pin electrical connection, it integrates seamlessly into existing systems. Rated at IP65, the unit is resistant to dust and water ingress, making it suitable for harsh environments. With a power supply range of 15–30 V DC, it offers reliable performance. Weighing 23.6 kg, the flow meter is a robust yet manageable addition to any hydraulic system.

SKU: FT10890-07
Supplier Part Number (MPN): GF150-MAP-S-6

Specifications

Brand
WEBTEC
Brand
Webtec
Pack Size
1.00
UOM
EA
Supplier Part Number
FT10890-07
Flow Accuracy
±0.5% of Reading (15–100% range)
Ambient Temperature
5 to 40° C, 41 to 104 °F
Body Materials
Stainless Steel
Compatible Fluid
Mineral oils to ISO 11158 (other fluids on request)
Connection Type
M12 5-Pin
Flow Range (US gpm)
0.26 - 40
Flow Range (L/min)
1 - 150
Fluid Temperature Range
-40 to 120°C, -40 to 284°F
Gross Weight
24.5 kg, 54 lbs
Internal Materials
Stainless Steel
IP Rating
IP65
Maximum Rated Flow
150 L/min, 40 US gpm
Max Rated Pressure
420 bar, 6000 psi
Net Weight
23.6 kg, 52 lbs
Porting
1-1/16” -16UN JIC Male
Power Supply
15 – 30 V DC
Seals
NBR
Product Weight
0.99 lbs

Related Documents

Product Questions & Answers (1)

Question by: Sherry W on May 14, 2026, 4:40 PM
accuracy on this thing, is it consistent across the full 1 to 150 liter range or does it get sketchy at the low end?
Answer by: Customer Support on May 16, 2026, 10:23 AM
At the lower end of the range, below about 15% of max flow, the published accuracy spec doesn't apply. From 15% up to 100% of the rated range, meaning roughly 22.5 to 150 L/min, you're looking at plus or minus 0.5% of reading. Below that threshold the meter is still operating but Webtec doesn't back that figure, so if your process regularly runs under 22 or 23 L/min you'd want to account for that in how you interpret the data.
