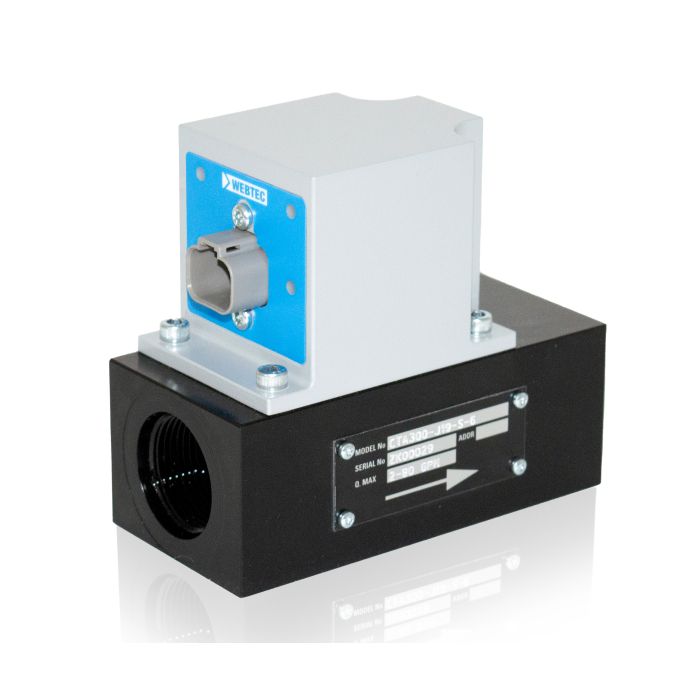

CTA Series Heavy Duty Hydraulic System Flow Monitor CTA150-J19-S-6 | FT11429-01

Description & Features

The CTA Series Heavy Duty Hydraulic System Flow Monitor by WEBTEC is engineered for robust performance in industrial settings, providing accurate flow and temperature monitoring for hydraulic systems. It features a maximum flow capacity of 150 L/min (40 US gpm) and can withstand pressures up to 420 bar (6000 psi). The device operates reliably across a wide fluid temperature range of -40 to 85 °C (-40 to 185 °F), making it suitable for various environmental conditions.

Constructed from durable aluminum, steel, and stainless steel, this flow monitor is designed to handle mineral oils per ISO 11158, with other fluid options available on request. The CTA150-J19-S-6 model is equipped with a 1-1/16"-12UN #12 SAE ORB porting and an M12 5-Pin Code A electrical connection, ensuring seamless integration into existing systems. With an IP6K9K rating, it offers excellent protection against dust and high-pressure water. Its lightweight design, weighing only 1.1 kg (2.4 lbs), simplifies installation without compromising on durability.

SKU: FT11429-01
Supplier Part Number (MPN): CTA150-J19-S-6

Specifications

Brand WEBTEC	Brand Webtec	Pack Size 1.00	UOM EA	Supplier Part Number FT11429-01	Flow Accuracy ≤ ±1% Full Scale	Body Materials Aluminium	Compatible Fluid Mineral oils to ISO 11158 (other fluids on request)	Connection Type M12 5-Pin Code A	Flow Range (US gpm) 1.3 - 40	Flow Range (L/min) 5 - 150	Fluid Temperature Range -40 to 85 °C, -40 to 185 °F	Gross Weight 1.5 kg, 3.3 lbs	Internal Materials Aluminium, Steel, Stainless Steel	IP Rating IP6K9K	Maximum Rated Flow 150 L/min, 40 US gpm	Max Rated Pressure 420 bar, 6000 psi	Net Weight 1.1 kg, 2.4 lbs	Porting 1-1/16"-12UN #12 SAE ORB	Power Supply 9 – 28 V DC	Seals FKM / EPDM	Product Weight 0.99 lbs

Product Questions & Answers (2)

Question by: Nancy R on Nov 26, 2025, 11:18 AM

How do I connect the CTA150-J19-S-6 to my existing hydraulic system?

Answer by: Customer Support on Nov 28, 2025, 7:36 AM

You can integrate the CTA150-J19-S-6 into your hydraulic setup using its 1-1/16"-12UN #12 SAE ORB porting. Ensure that your system supports these connections for a seamless fit.

Question by: Chad S on Apr 13, 2026, 9:24 PM

flow range on this one goes down to 5 L/min yeah? trying to figure out if it'll read accurately at the low end of what we're running through it

Answer by: Customer Support on Apr 15, 2026, 9:06 AM

Reads from 5 L/min up to 150 L/min, so low-end operation is within spec. Accuracy across that range is rated at plus or minus 1% of full scale, which means at the low end you're working with a tighter absolute margin than at mid-range flows. If your system spends most of its time near that 5 L/min floor, keep that in mind when evaluating whether the accuracy suits your application.
