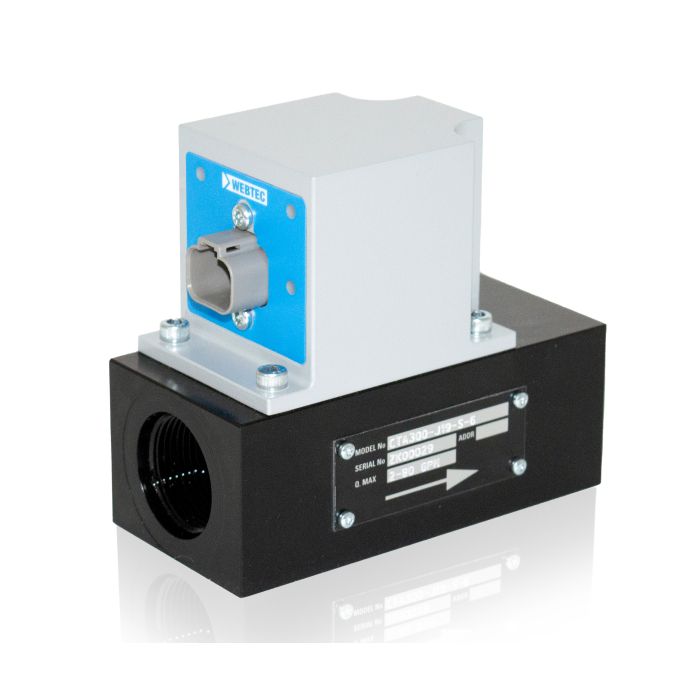

CTA Series Heavy Duty Hydraulic System Flow Monitor CTA150-J19-B-6 | FT11429-02

The WEBTEC CTA Series Heavy Duty Hydraulic System Flow Monitor, model CTA150-J19-B-6, is engineered for accurate flow and temperature monitoring in demanding industrial applications. With a flow range from 5 to 150 L/min (1.3 to 40 US gpm) and a maximum pressure capacity of 420 bar (6000 psi), it is well-suited for a variety of machinery environments. The device features a high flow accuracy of less than or equal to ±1% full scale, ensuring reliable performance.

Designed to withstand extreme conditions, this flow monitor operates effectively in fluid temperatures ranging from -40 to 85 °C (-40 to 185 °F). Its robust construction includes an aluminum body, with internal components made of aluminum, steel, and stainless steel, and is sealed with FKM/EPDM materials. The unit's 3/4" BSPP porting and M12 5-Pin Code A electrical connection offer ease of integration. It supports a power supply of 9 to 28 V DC and boasts an IP6K9K rating for superior protection against dust and water ingress.

SKU: FT11429-02
Supplier Part Number (MPN): CTA150-J19-B-6
