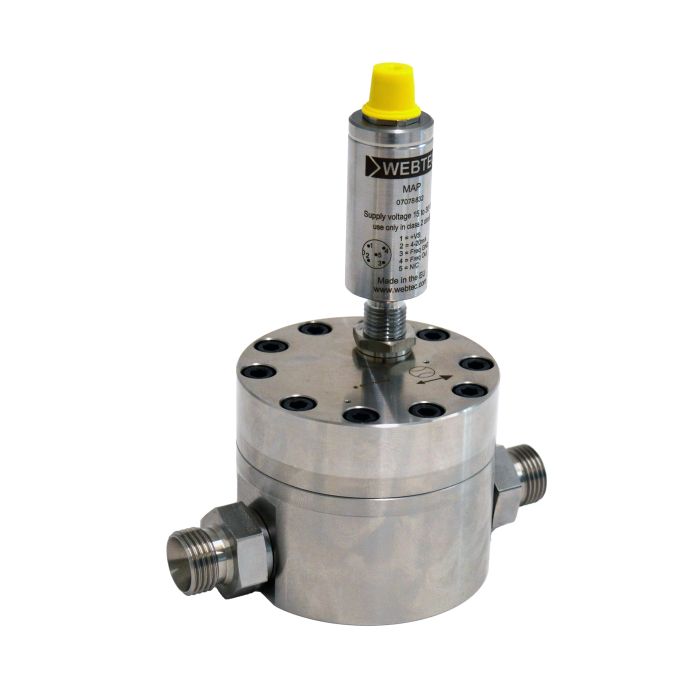

GF Series Positive Displacement Flow Meters with Conditioned Output GF025-MAP-S-6-FKM | FT11544-07

The WEBTEC GF Series positive displacement flow meter is designed for accurate flow measurement in demanding hydraulic systems. Built entirely from stainless steel, body, internals, and wetted components, and fitted with FKM seals, the GF025-MAP-S-6-FKM is well suited to applications requiring robust material compatibility with mineral oils conforming to ISO 11158.

Covering a flow range of 0.1 to 25 L/min (0.03 to 7 US gpm) with an accuracy of ±0.5% of reading across 15 to 100% of range, this meter handles system pressures up to 420 bar (6,000 psi). The conditioned output connects via an M12 5-pin electrical connector, powered by 15 to 30 V DC, and the unit carries an IP65 rating for protection in workshop and field environments. Fluid temperatures from -40 to 120°C (-40 to 284°F) are supported, with 3/4"-16UN JIC Male porting for straightforward circuit integration.

SKU: FT11544-07
Supplier Part Number (MPN): GF025-MAP-S-6-FKM
