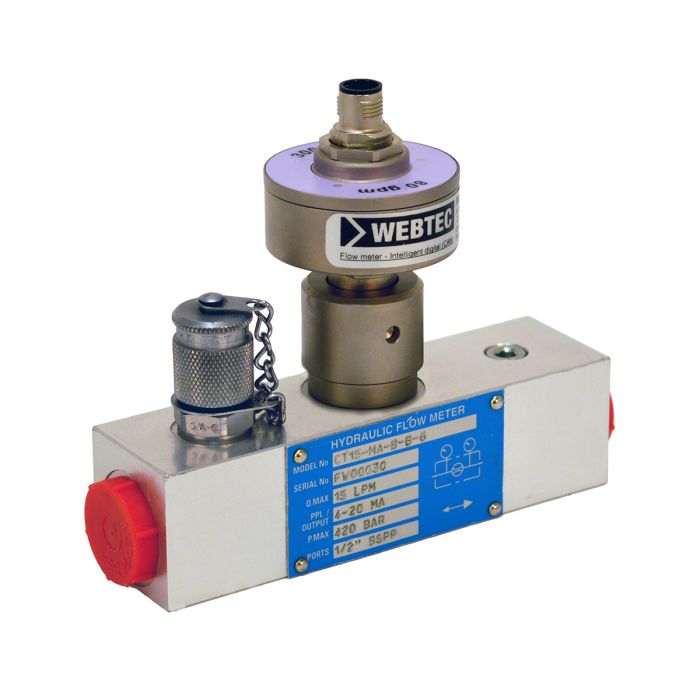

CT Series Turbine Flow Meters with Conditioned Output CT15-MA-S-S-6 | FT9500-05

Description & Features

The CT Series Turbine Flow Meters by WEBTEC, featuring the CT15-MA-S-S-6 model, are engineered for accurate flow measurement in demanding hydraulic applications. These meters operate efficiently within a flow range of 1 to 15 L/min (0.25 to 4 US gpm) and withstand pressures up to 420 bar (6000 psi), making them suitable for a variety of industrial settings. The device offers a flow accuracy of ±1% full scale, ensuring reliability in performance.

Designed with robust aluminium and stainless steel materials, the flow meters are compatible with mineral oils per ISO 11158 standards and can accommodate other fluids upon request. The unit's electrical connection is facilitated through an M12 5-Pin interface, powered by a 12 – 32 V DC supply. With an IP66 rating, these meters are protected against dust and water ingress, ensuring durability in harsh environments.

SKU: FT9500-05
Supplier Part Number (MPN): CT15-MA-S-S-6

Specifications

Brand WEBTEC	Brand Webtec	Pack Size 1.00	UOM EA	Supplier Part Number FT9500-05	Flow Accuracy ±1% Full Scale	Ambient Temperature 6 to 40°C, 41 to 104°F	Body Materials Aluminium	Compatible Fluid Mineral oils to ISO 11158 (other fluids on request)	Connection Type M12 5-Pin	Flow Range (US gpm) 0.25 - 4	Flow Range (L/min) 1 - 15	Fluid Temperature Range 5 to 90°C, 41 to 194°F	Gross Weight 1 kg, 2.2 lbs	Internal Materials Aluminium, Steel, Stainless Steel	IP Rating IP66	Maximum Rated Flow 15 L/min, 4 US gpm	Max Rated Pressure 420 bar, 6000 psi	Net Weight 0.7 kg, 1.5 lbs	Porting Main 3/4” -16UN #8 SAE ORB. Top 7/16” -20UN #4 SAE ORB	Power Supply 12 – 32 V DC	Seals FKM / EPDM	Product Weight 0.99 lbs

Product Questions & Answers (2)

Question by: Dan J on May 11, 2026, 12:03 PM

How does this CT Series Flow Meter handle high-pressure situations in my hydraulic system?

Answer by: Customer Support on May 12, 2026, 9:44 PM

The CT Series Turbine Flow Meter is built to withstand high-pressure environments, with a maximum pressure rating of 420 bar or 6000 psi. This makes it suitable for demanding hydraulic applications that require reliable pressure management.

Question by: Bobby R on Jun 22, 2025, 7:37 PM

flow range on this one goes down to 1 L/min -- is that low end accurate or does it get sketchy below maybe 3 or 4?

Answer by: Customer Support on Jun 24, 2025, 9:06 AM

Accuracy is rated at ±1% of full scale across the entire 1 to 15 L/min range, so the meter doesn't have a separate "reliable" floor carved out above that lower limit. Full scale on this unit is 15 L/min, which means ±1% works out to roughly ±0.15 L/min of possible error at any point in the range. At the low end near 1 L/min that error margin represents a larger percentage of the actual reading, which is worth keeping in mind if you're trying to resolve very small flow differences down there. For most hydraulic test and monitoring work though, 1 L/min is a usable lower bound.
