CT Series Turbine Flow Meters with Conditioned Output CT60-MA-S-S-6 | FT9501-07

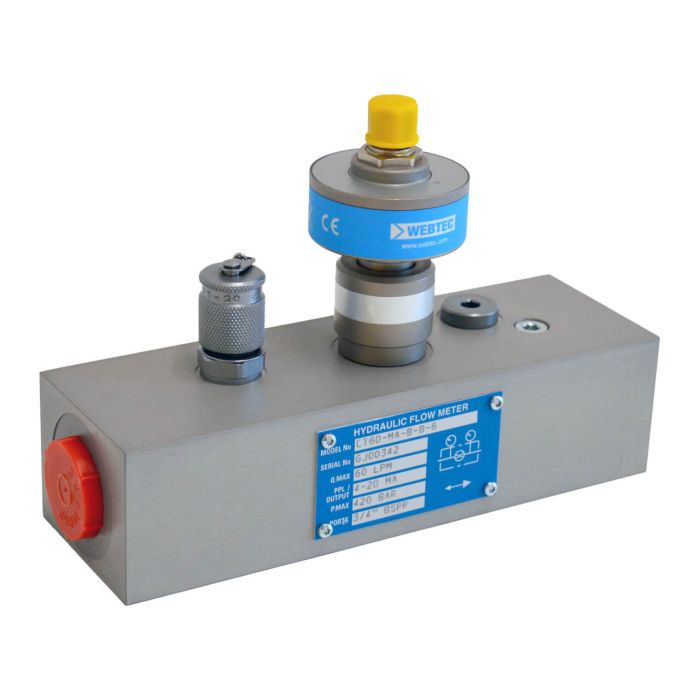

The CT Series Turbine Flow Meters by WEBTEC, specifically the CT60-MA-S-S-6 model, are designed for accurate flow measurement in hydraulic systems, handling flow rates from 3 to 60 L/min (0.8 to 16 US gpm) with a full-scale accuracy of ±1%. These meters are robustly built to accommodate maximum pressures of 420 bar (6000 psi) and operate efficiently within a fluid temperature range of 5 to 90°C (41 to 194°F). The device is compatible with mineral oils as per ISO 11158 standards, ensuring versatility and reliability in various applications.

Equipped with an M12 5-Pin electrical connection and powered by a 12 to 32 V DC supply, the CT60-MA-S-S-6 ensures seamless integration into existing systems. Its IP66 rating provides excellent protection against dust and water ingress, suitable for demanding environments. The meter is constructed from durable materials, including aluminum, steel, and stainless steel, with FKM/EPDM seals to ensure longevity. The flow meter's main and top porting options further enhance its adaptability for diverse hydraulic setups.

SKU: FT9501-07
Supplier Part Number (MPN): CT60-MA-S-S-6
