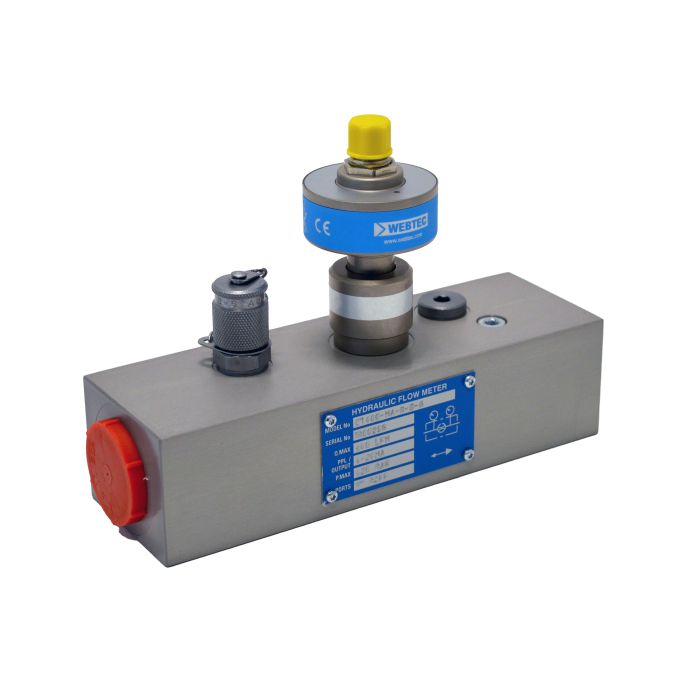

CT Series Turbine Flow Meters with Conditioned Output CT400-MA-S-S-6 | FT9504-07

Description & Features

Part of WEBTEC's CT Series, the CT400-MA-S-S-6 turbine flow meter is designed for accurate hydraulic flow measurement in demanding industrial service. It covers a working range of 10 to 400 L/min (2.5 to 100 US gpm) with a flow accuracy of plus or minus 1% full scale, and is rated to a maximum pressure of 420 bar (6,000 psi).

The conditioned signal output is provided via an M12 5-pin connector, powered from a 12 to 32 V DC supply, making integration with monitoring or control systems straightforward. An IP66 enclosure rating gives reliable protection in wet or contaminated environments. Porting is via a 1-5/16 inch -12UN SAE ORB main port, with an additional SAE ORB top port for supplementary connections. The aluminium body with steel and stainless steel internals, FKM/EPDM seals, and compatibility with mineral oils to ISO 11158 suit a broad range of hydraulic circuit configurations. Fluid temperatures from 5 to 90 degrees C (41 to 194 degrees F) are supported.

SKU: FT9504-07
Supplier Part Number (MPN): CT400-MA-S-S-6

Specifications

Brand WEBTEC	Brand Webtec	Pack Size 1.00	UOM EA	Supplier Part Number FT9504-07	Flow Accuracy ±1% Full Scale	Ambient Temperature 5 to 40°C, 41 to 104°F	Body Materials Aluminium	Compatible Fluid Mineral oils to ISO 11158 (other fluids on request)	Connection Type M12 5-Pin	Flow Range (US gpm) 2.5 - 100	Flow Range (L/min) 10 - 400	Fluid Temperature Range 5 to 90°C, 41 to 194°F	Gross Weight 2 kg, 4.4 lbs	Internal Materials Aluminium, Steel, Stainless Steel	IP Rating IP66	Maximum Rated Flow 400 L/min, 100 US gpm	Max Rated Pressure 420 bar, 6000 psi	Net Weight 1.7 kg, 3.7 lbs	Porting Main 1-5/16” -12UN #16 SAE ORB, Top 7/16” -20UN #4 SAE ORB	Power Supply 12 – 32 V DC	Seals FKM / EPDM	Product Weight 0.99 lbs

Product Questions & Answers (2)

Question by: Lee M on Oct 28, 2025, 5:57 PM

porting on this thing, is it SAE ORB or something else? trying to figure out if it'll drop into our existing test stand without reworking all the fittings

Answer by: Customer Support on Oct 30, 2025, 2:45 PM

Main port is 1-5/16" -12UN #16 SAE ORB, and the top port is 7/16" -20UN #4 SAE ORB. If your test stand is already plumbed for SAE ORB fittings in those sizes, you should be able to swap it in without rerouting lines. Worth double-checking the top port especially, since that one catches people off guard if they're only thinking about the main flow path.

Question by: Kirk C on Dec 9, 2025, 8:23 PM

Is the CT Series Turbine Flow Meter suitable for use in systems with high pressure?

Answer by: Customer Support on Dec 11, 2025, 7:20 AM

On hydraulic systems requiring high pressure, the CT Series Turbine Flow Meter is a solid choice. It handles up to 420 bar or 6000 psi, ensuring it can operate under demanding conditions.
