CTR Series Turbine Flow Meters with Conditioned Output CT750R-CAN-S-S-7 | FT9510-25

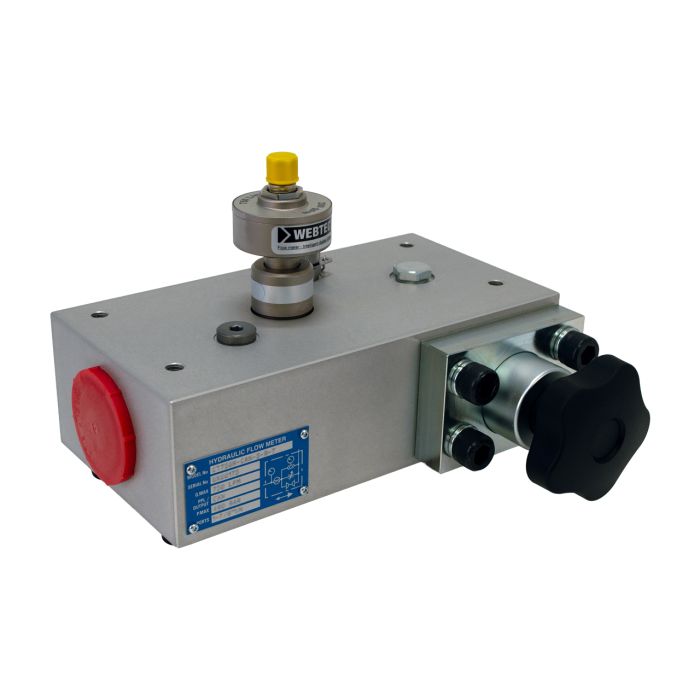

The WEBTEC CTR Series turbine flow meter model CT750R-CAN-S-S-7 is designed for hydraulic flow measurement across a working range of 20 to 750 L/min (5 to 200 US gpm), with a maximum system pressure rating of 480 bar (7000 psi). Flow accuracy is held to within ±1% of full scale, while an integrated temperature measurement function achieves ±2°C (±4°F) accuracy across a fluid temperature range of 5 to 90°C (41 to 194°F).

The unit outputs a conditioned CAN signal via an M12 5-pin connector and accepts a power supply of 12 to 32 V DC. Porting is 1-7/16" -20UN #4 SAE ORB. The aluminium body carries an IP66 ingress protection rating, with internal components in aluminium, steel, and stainless steel, and FKM/EPDM seals for compatibility with mineral oils to ISO 11158. Net weight is 7.5 kg (16.5 lbs).

SKU: FT9510-25
Supplier Part Number (MPN): CT750R-CAN-S-S-7
