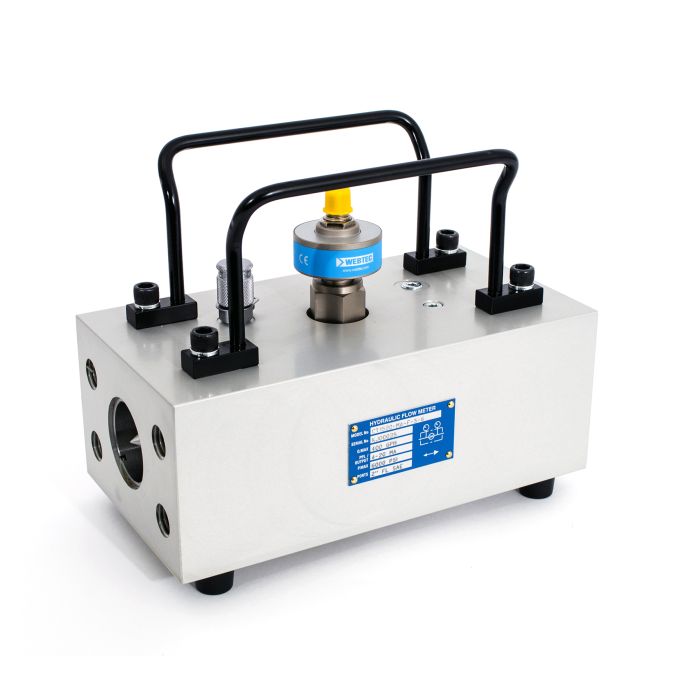

CT Series Turbine Flow Meters with Conditioned Output CT1500-MA-F-S-6 | FT9677-07

Description & Features

Designed for demanding hydraulic measurement applications, the CT Series turbine flow meter WEBTEC CT1500-MA-F-S-6 handles flow rates from 50 to 1500 L/min (13.5 to 400 US gpm) at working pressures up to 420 bar (6000 psi). Flow accuracy is held to ±1% of full scale, with a fluid temperature range of 5 to 90°C (41 to 194°F) and temperature measurement accuracy of ±2°C. The main port is a 2" #32 SAE Code 62 4-bolt flange, with a 7/16" -20UN #4 SAE ORB top port, making it straightforward to integrate into existing hydraulic circuits.

An M12 5-pin connector provides the conditioned output signal, powered from a 12 to 32 V DC supply. The aluminium body with steel and stainless steel internals is sealed to IP66, with FKM/EPDM seals suitable for use with mineral oils to ISO 11158. At 10 kg, the unit is substantial but well-suited to high-flow industrial hydraulic test and monitoring service.

SKU: FT9677-07
Supplier Part Number (MPN): CT1500-MA-F-S-6

Specifications

Brand WEBTEC	Brand Webtec	Pack Size 1.00	UOM EA	Supplier Part Number FT9677-07	Flow Accuracy ±1% Full Scale	Temperature Accuracy ±2°C / ±4°F	Ambient Temperature 5 to 40°C, 41 to 104°F	Body Materials Aluminium	Compatible Fluid Mineral oils to ISO 11158 (other fluids on request)	Connection Type M12 5-Pin	Flow Range (US gpm) 13.5 - 400	Flow Range (L/min) 50 - 1500	Fluid Temperature Range 5 to 90°C, 41 to 194°F	Gross Weight 11 kg, 24 lbs	Internal Materials Aluminium, Steel, Stainless Steel	IP Rating IP66	Maximum Rated Flow 1500 L/min, 400 US gpm	Max Rated Pressure 420 bar, 6000 psi	Net Weight 10 kg, 22 lbs	Porting Main 2” #32 SAE Code 62 4-bolt flange, Top 7/16” -20UN #4 SAE ORB	Power Supply 12 – 32 V DC	Seals FKM / EPDM	Product Weight 0.99 lbs

Product Questions & Answers (2)

Question by: Carl Y on Mar 1, 2026, 8:58 AM

flow range on this unit is 50 to 1500 L/min, we're running a test circuit that peaks around 1400 and I want to make sure we're not pushing it into a bad zone. also what's the pressure ceiling?

Answer by: Customer Support on Mar 2, 2026, 3:12 PM

At 1400 L/min you're well within the rated flow range, which tops out at 1500 L/min (400 US gpm). Pressure rating is 420 bar (6000 psi), so unless your system is running unusually high, that shouldn't be a limiting factor either. Just keep an eye on fluid temperature staying between 5 and 90°C and you're in good shape for that kind of continuous demand.

Question by: Brett M on Apr 16, 2026, 10:17 AM

How do I ensure this flow meter fits in my hydraulic system?

Answer by: Customer Support on Apr 18, 2026, 7:35 AM

The CT1500-MA-F-S-6 flow meter uses a main 2” #32 SAE Code 62 4-bolt flange and a top 7/16” -20UN #4 SAE ORB for porting. Make sure your system matches these specifications for a proper fit.
