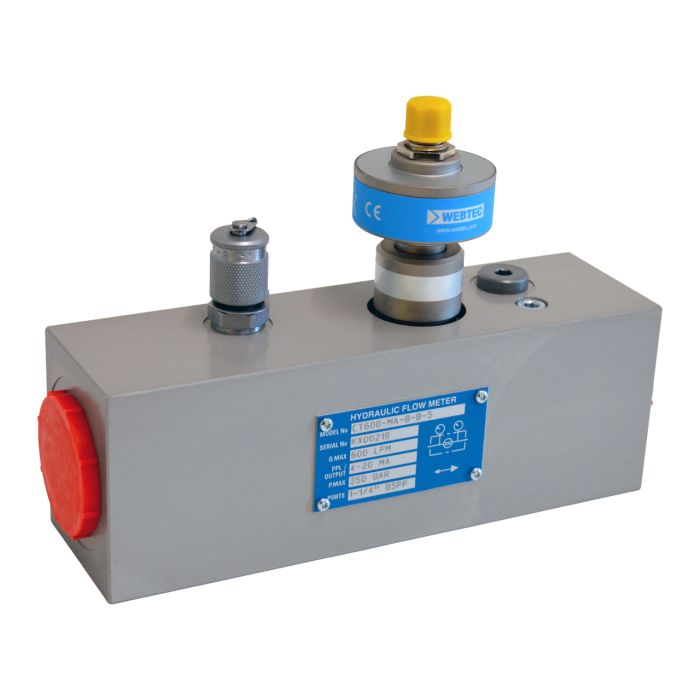

CT Series Turbine Flow Meters with Conditioned Output CT600-MA-B-B-5 | FT9718-02

Part of WEBTEC's CT Series, this conditioned-output turbine flow meter is designed for reliable measurement across a broad flow range of 15 to 600 L/min (5 to 160 US gpm), with flow accuracy of ±1% Full Scale. It is rated to 350 bar (5000 psi) and handles fluid temperatures from 5 to 90°C (41 to 194°F), making it well suited to demanding hydraulic service with mineral oils conforming to ISO 11158.

The meter features a 1-1/4" BSPP main port and 1/4" BSPP top port, with an M12 5-pin electrical connection and a wide 12 to 32 V DC power supply range. An IP66 enclosure rating provides solid protection against dust and water ingress. The aluminium body, combined with steel and stainless steel internals and FKM/EPDM seals, keeps the unit lightweight at 2.7 kg (6 lbs) while maintaining durability across its rated conditions.

SKU: FT9718-02
Supplier Part Number (MPN): CT600-MA-B-B-5
