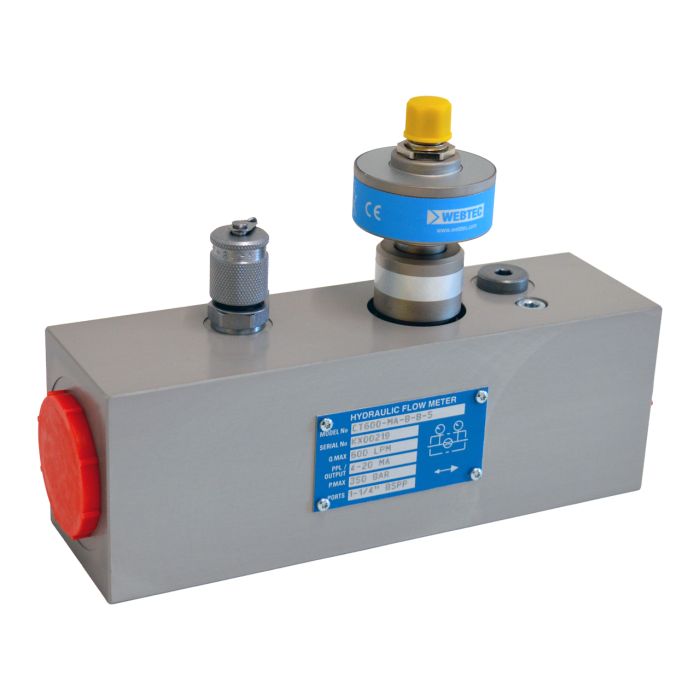

CT Series Turbine Flow Meters with Conditioned Output CT600-MA-S-S-5 | FT9718-07

Description & Features

Designed for accurate hydraulic flow measurement, the WEBTEC CT Series turbine flow meter in this configuration handles flow rates from 15 to 600 L/min (5 to 160 US gpm) at pressures up to 207 bar (3000 psi). A conditioned signal output and M12 5-pin electrical connection make integration straightforward, with a broad power supply range of 12 to 32 V DC accommodating varied system architectures.

The aluminium body keeps weight to 2.7 kg while internal components of aluminium, steel, and stainless steel provide durability in continuous hydraulic service. FKM/EPDM seals support compatibility with mineral oils to ISO 11158, and the fluid temperature range of 5 to 90°C (41 to 194°F) suits most industrial hydraulic circuits. Main porting is 1-5/16" -12UN #16 SAE ORB, with a 7/16" -20UN #4 SAE ORB top port. An IP66 rating ensures reliable performance in demanding environments.

SKU: FT9718-07
Supplier Part Number (MPN): CT600-MA-S-S-5

Specifications

Brand WEBTEC	Brand Webtec	Pack Size 1.00	UOM EA	Supplier Part Number FT9718-07	Flow Accuracy ±1% Full Scale	Ambient Temperature 5 to 40°C, 41 to 104°F	Body Materials Aluminium	Compatible Fluid Mineral oils to ISO 11158 (other fluids on request)	Connection Type M12 5-Pin	Flow Range (US gpm) 5 - 160	Flow Range (L/min) 15 - 600	Fluid Temperature Range 5 to 90°C, 41 to 194°F	Gross Weight 3 kg, 6.6 lbs	Internal Materials Aluminium, Steel, Stainless Steel	IP Rating IP66	Maximum Rated Flow 600 L/min, 160 US gpm	Max Rated Pressure 207 bar, 3000 psi	Net Weight 2.7 kg, 6 lbs	Porting Main 1-5/16” -12UN #16 SAE ORB, Top 7/16” -20UN #4 SAE ORB	Power Supply 12 – 32 V DC	Seals FKM / EPDM	Product Weight 0.99 lbs

Product Questions & Answers (2)

Question by: Scott J on Mar 13, 2026, 6:07 PM

How do I ensure proper installation of the CT600-MA-S-S-5 turbine flow meter in my hydraulic system?

Answer by: Customer Support on Mar 15, 2026, 7:07 AM

For installing the CT600-MA-S-S-5, you'll need to connect it using the 1-5/16” -12UN #16 SAE ORB main port and the 7/16” -20UN #4 SAE ORB top port. Make sure that your power supply is within 12 – 32 V DC, and use an M12 5-Pin electrical connection. Proper alignment is crucial for accurate measurements.

Question by: Wes H on Jul 23, 2025, 12:54 PM

flow range on this one goes down to 15 L/min, is that the actual bottom of the usable range or just where accuracy starts to fall off?

Answer by: Customer Support on Jul 25, 2025, 9:19 AM

For the CT600-MA-S-S-5, the rated flow range is 15 to 600 L/min (5 to 160 US gpm), and the accuracy figure of ±1% full scale applies across that range. Below 15 L/min, the meter is outside its specified operating window, so readings there wouldn't be covered by that accuracy rating. If your application regularly runs at the low end of that range, it's worth keeping in mind that 1% of full scale at 600 L/min is a fixed offset regardless of actual flow, which means at very low flows the effective percentage error relative to reading will be larger.
