CT Series Turbine Flow Meters with Conditioned Output CT600-CAN-S-S-5 | FT9718-25

Description & Features

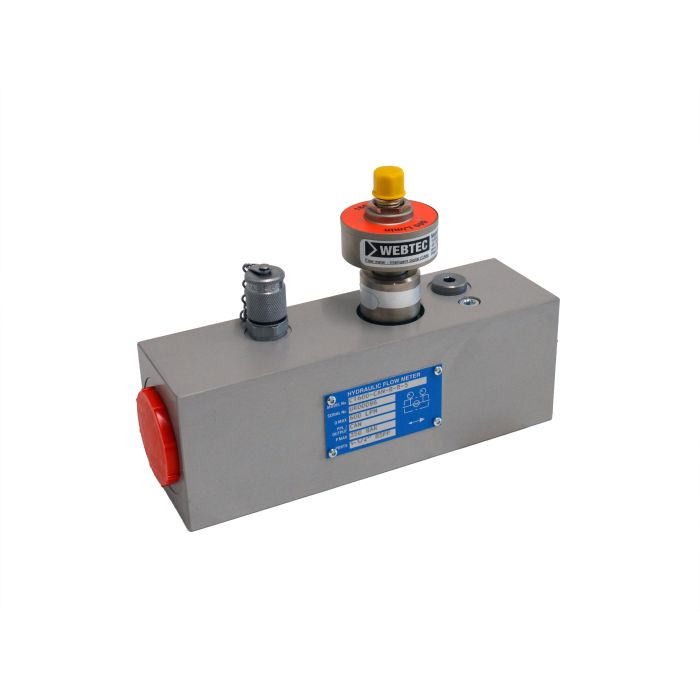

The WEBTEC CT Series turbine flow meter, model CT600-CAN-S-S-5, is designed for accurate hydraulic flow and temperature measurement in demanding industrial systems. Covering a flow range of 15 to 600 L/min (4 to 160 US gpm) and rated to 420 bar (6000 psi), it delivers ±1% full scale flow accuracy alongside temperature measurement accurate to ±2°C (±4°F) across a fluid temperature range of 5 to 90°C (41 to 194°F).

Output is provided via a CAN bus signal through an M12 5-pin connector, powered from a 12–32 V DC supply. The aluminium body with steel and stainless steel internals uses FKM/EPDM seals and is rated IP66 for use in wet or dirty environments. Main porting is 1-5/16"-12UN #16 SAE ORB, with a 7/16"-20UN #4 SAE ORB top port. Compatible with mineral oils to ISO 11158, the unit weighs 2.7 kg (6 lbs).

SKU: FT9718-25
Supplier Part Number (MPN): CT600-CAN-S-S-5

Specifications

Brand WEBTEC	Brand Webtec	Pack Size 1.00	UOM EA	Supplier Part Number FT9718-25	Flow Accuracy ±1% Full Scale	Temperature Accuracy ±2°C / ±4°F	Ambient Temperature 5 to 40°C, 41 to 104°F	Body Materials Aluminium	Compatible Fluid Mineral oils to ISO 11158 (other fluids on request)	Connection Type M12 5-Pin	Flow Range (US gpm) 4 - 160	Flow Range (L/min) 15 - 600	Fluid Temperature Range 5 to 90°C, 41 to 194°F	Gross Weight 3 kg, 6.6 lbs	Internal Materials Aluminium, Steel, Stainless Steel	IP Rating IP66	Maximum Rated Flow 600 L/min, 160 US gpm	Max Rated Pressure 420 bar, 6000 psi	Net Weight 2.7 kg, 6 lbs	Porting Main 1-5/16” -12UN #16 SAE ORB, Top 7/16” -20UN #4 SAE ORB	Power Supply 12 – 32 V DC	Seals FKM / EPDM	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Pete W on Apr 24, 2026, 9:04 AM

flow range on this one goes down to 15 L/min -- is that the actual usable minimum or just what they put on paper?

Answer by: Customer Support on Apr 26, 2026, 7:53 AM

Rated flow range runs from 15 L/min up to 600 L/min, and the accuracy figure of plus or minus 1% full scale applies across that range. At the low end, turbine meters in general start to lose linearity if you push them below their rated minimum, so 15 L/min is where Webtec draws the line for reliable measurement. Running it right at that threshold isn't ideal if you can avoid it, but anywhere comfortably above 15 L/min you should be in good shape.
