HPM110 Series Digital Pressure Gauge SR-HPM-110-UN-8700 | FT9985-8K7

Description & Features

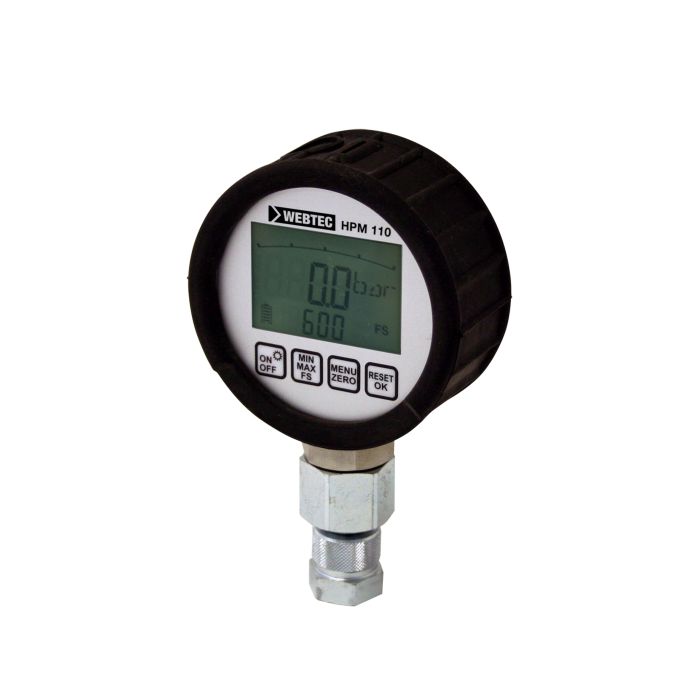

The WEBTEC HPM110 Series digital pressure gauge is a compact, battery-operated instrument designed for monitoring oil pressure in hydraulic equipment. Rated to 600 bar (8700 psi) with a pressure accuracy of plus or minus 0.5% full scale, it delivers reliable measurement across a fluid temperature range of -20 to 80 degrees C (4 to 176 degrees F) and an ambient operating range of -10 to 50 degrees C (14 to 144 degrees F).

Powered by two AA batteries with a service life of up to 1500 hours, the gauge connects via a 7/16-20UN #4 SAE ORB male port. The zinc die-cast body with TPE rubber protection cover provides IP65-rated resistance to dust and water ingress, while internal stainless steel wetted components and NBR seals ensure compatibility with oil and water-based fluids. At 0.5 kg, it is well suited to portable and field measurement use.

SKU: FT9985-8K7

Supplier Part Number (MPN): SR-HPM-110-UN-8700

Specifications

Brand WEBTEC	Brand Webtec	Pack Size 1.00	UOM EA	Supplier Part Number FT9985-8K7	Pressure Accuracy ±0.5% Full Scale	Ambient Temperature -10 to 50 °C, 14 to 144 °F	Battery Life 1500h	Body Materials Zinc die casting with TPE rubber protection cover	Compatible Fluid Oil / Water (other fluids on request)	Connection Type 7/16" -20UN #4 SAE ORB Male	Fluid Temperature Range -20 to 80 °C, 4 to 176 °F	Gross Weight 0.5 kg, 1.1 lbs	Internal Materials Stainless Steel	IP Rating IP65	Max Rated Pressure 600 bar, 8700 psi	Net Weight 0.5 kg, 1.1 lbs	Porting 7/16" -20UN #4 SAE ORB Male	Power Supply 2 x AA Battery (1.5V)	Seals NBR	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Ray C on Nov 19, 2025, 2:21 PM

How well does the HPM110 Series Digital Pressure Gauge handle extreme temperatures?

Answer by: Customer Support on Nov 20, 2025, 5:57 PM

Operating between -10 and 50 degrees Celsius ambient and -20 to 80 degrees Celsius fluid temperature, the HPM110 Series is built to withstand a range of conditions typical in hydraulic systems. Its IP65 rating further ensures protection against dust and water ingress.
