Hydraulic Punch Sets, Up To 30 Ton

Description & Features

250459 Punch/Die Set	Punch/die set for round holes. Includes one each: PD437 7/16'' punch/die, PD562 9/16'' punch/die, PD688 11/16'' punch/die, PD812 13/16'' punch/die.
Features	Punch smooth, precise holes in seconds; much faster than drilling • Fully portable for construction, maintenance and service applications, or can be mounted on a workbench for production jobs. Has carrying handle for precise locating. • Rugged, forged steel “C” frame for great strength and durability • Dual action, spring loaded stripper holds material during punching operation, strips material from punch on return. Scribe lines on stripper aid in locating the punch (HP 35 only). • Double Acting prevents binding and speeds retraction (HP20 only) • The PE172 electric/hydraulic pump is an ideal power source.
HP35SP Model	Punch set with pump. Includes HP35 punch, PE172 electric/hydraulic pump, 9756 hose, 9798 hose half coupler, 250459 punch/die set, metal case. NOTE: For 220 volt, 50 Hz. order with suffix “-220”.

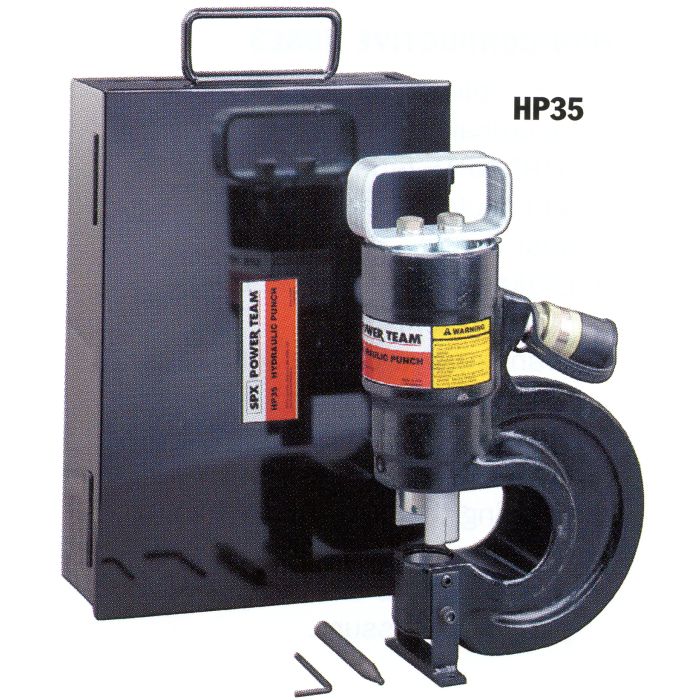

HP-35 Model	Punch only, includes metal case and die change tools.
Maximum Operating Pressure	10,000 PSI.

Model Number	Capacity (tons)	Maximum Material Thickness	Product Description	Oil Capacity	Dimensions	Price	Action
HP35S Hydraulic Punch Set	35	0.5	SPX HYDRAULIC PUNCHES AND PUNCH SETS 20		A=13.75 B=9 C=3.75 D=0.56 E=2.88
