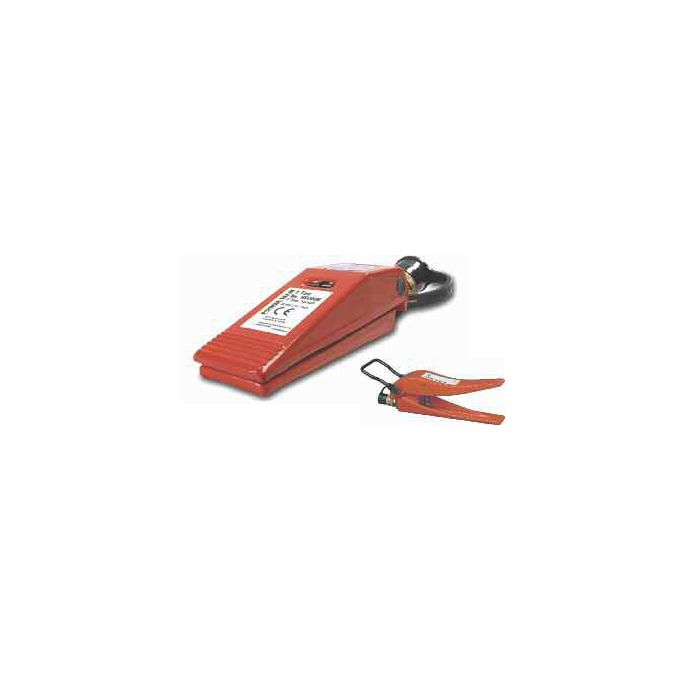

Hydraulic Spreaders, Up To 1-1/2 Ton

Description & Features

Features	Use to lift machines or as a clamp; spread concrete forms or rebar or perform straightening jobs. • Conforms to ASME B30.1 standard. • High strength alloy steel forged upper and lower jaws on HS2000. • Jaws are spring-return; retract automatically when pressure is released.
HS2000	1-ton capacity spreader. Full 2,000 lbs. capacity at 10,000 psi. with 4'' spread. Can be “dead-ended” at 4'' spread under full load. Needs only 9/16'' clearance to engage jaws.
HS3000	1-1/2-ton capacity spreader. Full 3,000 lb. capacity at 10,000 psi. with 11-1/2'' spread. Greater than competitive units. Needs only 1-1/4'' clearance to engage jaws. Can be “dead-ended” at 11-1/2'' spread at full load.

Model Number	Capacity (tons)	Collapsed Tip Clearance	Maximum Spread	Oil Capacity	Price	Action
HS2000 Hydraulic Spreader	1	0.563	4
HS3000 Hydraulic Spreader	1-1/2	1.25	11.5
