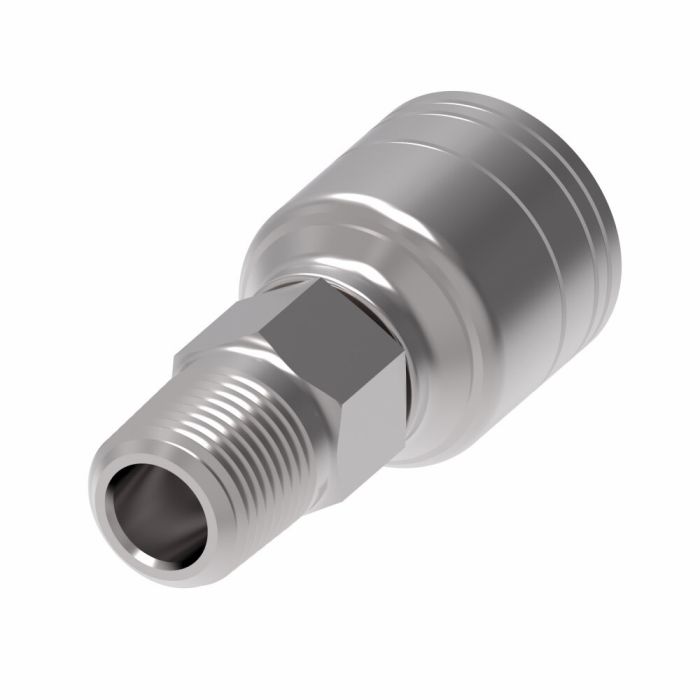

main product photo

WeatherGRIP Z series hose end

Ask A Question

Description & Features

Engineered for longevity the WeatherGRIP Z series hose end is constructed from robust carbon steel. It is designed specifically for general-purpose low and medium pressure hydraulics and is ideal for applications requiring shock hazard protection such as those using H277 or H435 hoses.

Featuring Dura-Kote plating it offers exceptional resistance to corrosion thereby extending the lifespan of your hose assemblies. The innovative engineering behind this hose end ensures peak performance and maximum uptime.

Certified to SAE J1176 standards this hose end guarantees reliability and safety. Additionally it features an NPTF male end with a 0.375 size and a line/hose/tube type connection. The hex size is measured at 0.69 with a hose dash size of -4 making it compatible with a variety of hydraulic systems.

Supplier Part Number: 04Z-106

MPN: IG04Z-106

Specifications

Application
General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
Certifications
SAE J1176
Brand
Danfoss (IGS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Size 1
0.38
End Type 1
NPTF
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
Hex Size 2
0.69
Hose Dash Size
-4
ICC
Hose Fittings
Item Type
Fitting Assembly
Language
English
Product Material
Carbon Steel
Product Width
0.88
Sub Brand
Weatherhead
Supplier Part Number
04Z-106
Product Weight
0.13 lbs

Related Documents

Product Questions & Answers (1)

Question by: Connie M on Oct 25, 2025, 3:37 PM
Got a setup running H435 hose and been having trouble with fittings rusting out on me, would this end hold up any better than what I been using?
Answer by: Customer Support on Oct 27, 2025, 6:08 AM
Corrosion has been a real problem with a lot of standard carbon steel fittings, but the Dura-Kote plating on this one puts it a step above bare or lightly coated alternatives. That plating is specifically there to fight off rust and extend the life of the whole assembly. Pair that with H435 hose and you're actually running a combination this fitting was built for. It's listed as compatible with H435 right in the application specs, so you'd be in good shape there.
