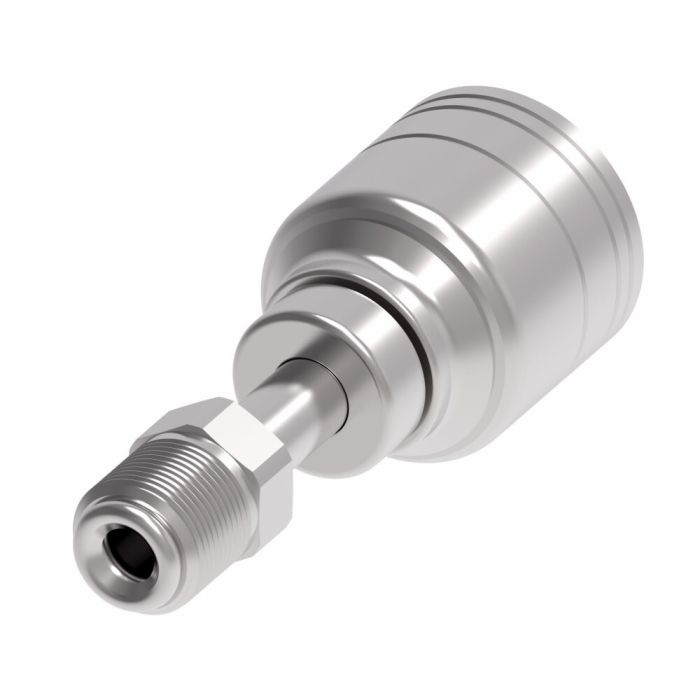

Weathergrip Z Series Hose End

Ask A Question

Description & Features

Designed for general purpose low and medium pressure hydraulics, the Weathergrip Z Series Hose End offers exceptional reliability in demanding environments. Manufactured from robust carbon steel, this fitting assembly features an inverted male swivel straight design with a 0.5-inch SAE end, making it suitable for various hydraulic applications. The innovative Dura-Kote plating provides superior corrosion resistance, extending the lifespan of hose assemblies and ensuring long-term performance.

Engineered by Eaton Aeroquip under the Weatherhead brand, the Weathergrip Z Series Hose End meets SAE J1176 certification standards, guaranteeing compliance with industry requirements. Its system-engineered design enhances durability and minimizes downtime, making it an ideal choice where shock hazards exist. For compatibility information, detailed documents are available via provided links, ensuring you select the right product for your needs.

SKU: IG04Z-B05

Supplier Part Number (MPN): 04Z-B05

Specifications

Brand
Weatherhead® by Danfoss
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
1/2 in
Connection Type
Hose, Male Inverted Swivel
Connection Type 1
Hose
Connection Type 2
Male 37 deg Inverted Swivel
Construction Style
Crimp
Cut-Off Factor
1.46 in
Dimension Standards
SAE J1176
Dimensions
2.39 in L
End Gender 1
Male
End Size 1
1/2 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
H180, H145R, H190H, H280, H881, H290H, H245L, H190, H400, H290, H421, H039, H039H, EC115, EC215, EC118 and WH004 Series Hoses
Hex Size
1/2 in
Hose Dash Size
04
Inside Diameter
0.17 in
Material
Steel
Material Construction
Carbon Steel
Series
1Z Series
Thread Sealant
Without Thread Sealant
Thread Size
1/2-20

Product Questions & Answers (2)

Question by: Bobby C on Jul 8, 2025, 9:45 PM
What kind of pressure can this handle for general use?
Answer by: Customer Support on Jul 10, 2025, 9:12 PM
This Weathergrip Z Series hose end is designed for general purpose low and medium pressure hydraulic applications.
Question by: Billy J on Oct 14, 2025, 8:38 AM
what's the coating on these fittings called, and does it actually hold up out in the field?
Answer by: Customer Support on Oct 15, 2025, 11:34 AM
Dura-Kote is the plating used on these fittings. It's engineered specifically to fight off corrosion, which matters a lot when assemblies are exposed to moisture, grime, or other rough conditions on the job. The whole point of that coating is to stretch the working life of the hose assembly so you're not pulling things apart and replacing hardware more than you need to.
