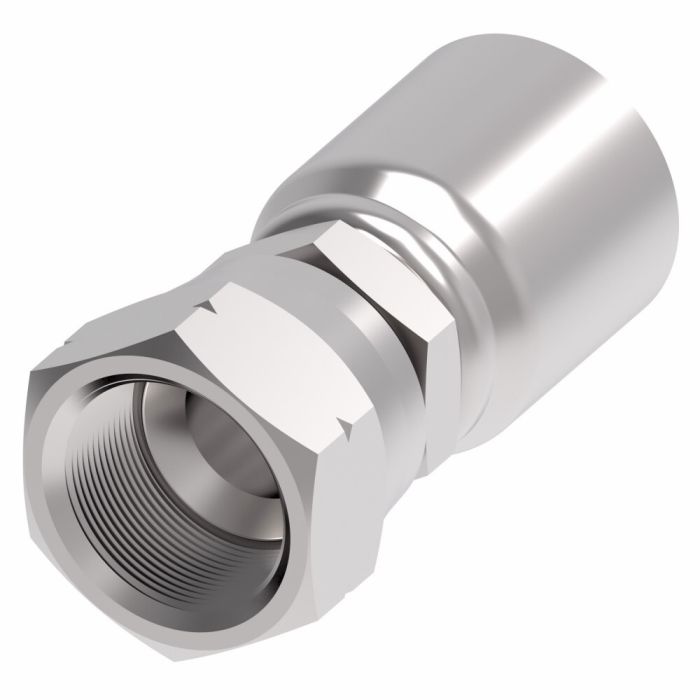

Danfoss / Eaton Hose End 069 Series

Ask A Question

Description & Features

The Danfoss / Eaton Hose End 069 Series is engineered for general purpose low and medium pressure hydraulics commonly utilized in truck and off-road vehicle applications. This hose end features Dura-Kote plating ensuring superior corrosion resistance significantly extending the life span of the assembly.

The innovative design of this hose end is focused on delivering maximum performance and uptime. Constructed from durable carbon steel it is tailored to meet the stringent demands of hydraulic operations.

The end type 1 is an SAE 45 female swivel complemented by a hose dash size of -6 and a hex size 2 of 0.56. The product width is 0.82. Its construction does not include components requiring an adjustable end end gender adjustment or specific calibration.

Supplier Part Number: 06906E-406

Specifications

Brand
Weatherhead® by Danfoss
Compatible Hose ID
0.38 in
Compatible Tube OD
0.31 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female SAE Flared Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 45 deg Swivel
Construction Style
Crimp
Cut-Off Factor
1.1 in
Dimension Standards
SAE 100R5
Dimensions
2.18 in L
End Gender 1
Female
End Size 1
16
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
H059, H069, H166, H169, H229, H239, H366 and H569 Series Hoses
Hex Size
0.56 x 0.75 in
Hose Dash Size
06
Inside Diameter
0.24 in
Material
Steel
Material Construction
Carbon Steel
Series
069E Series
Thread Sealant
Without Thread Sealant
Thread Size
5/8-18
Tube Outside Diameter 1
0.31 in

Product Questions & Answers (3)

Question by: Gene E on Apr 7, 2026, 7:28 AM
Running a -6 line on a medium pressure truck hydraulic setup. This fitting got the SAE 45 female swivel end I need?
Answer by: Customer Support on Apr 9, 2026, 6:34 AM
For a -6 hose with an SAE 45 female swivel connection, this is the right end type. The 069 Series carries a hose dash size of -6 and the end type is confirmed as SAE 45 female swivel, so it lines up with what you're describing on a truck or off-road hydraulic system.
Question by: Terry S on Jun 22, 2025, 11:48 AM
trying to match up a hose end i pulled off a truck, is this one a -6 with an SAE 45 female swivel?
Answer by: Customer Support on Jun 24, 2025, 6:23 AM
This 069 Series hose end is a -6 hose dash size with an SAE 45 female swivel on end type 1. It also lists a 0.56 hex size and a 0.82 overall width for clearance checks.
Question by: Shawn F on Jan 4, 2026, 8:28 PM
What kind of hydraulic applications does this fitting work for?
Answer by: Customer Support on Jan 6, 2026, 1:12 PM
It's made for general-purpose, low to medium pressure hydraulic systems. You'll often find it used in trucks and off-road equipment.
