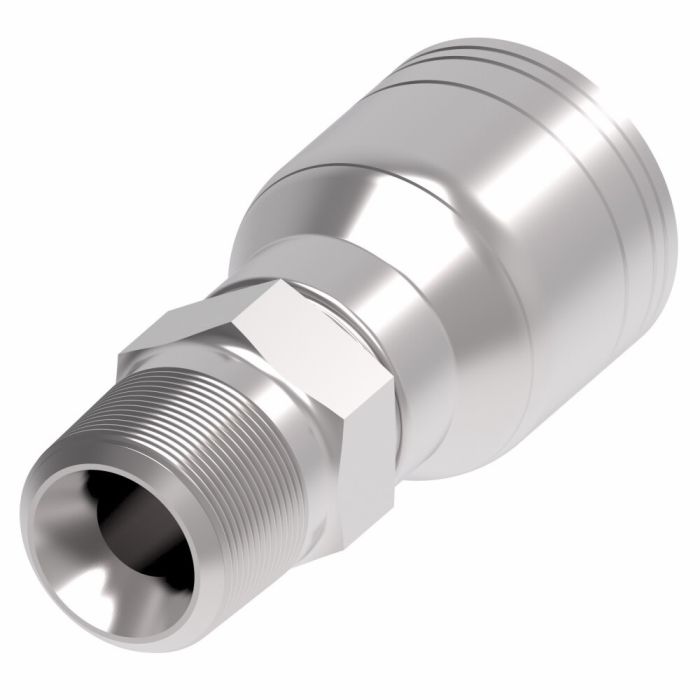

WeatherGRIP Z series hose end

Ask A Question

Description & Features

The WeatherGRIP Z series hose end is designed for general purpose low and medium pressure hydraulics offering exceptional performance where shock hazards exist. Featuring Dura-Kote plating the hose end ensures superior corrosion resistance extending the life of your hose assembly.

Crafted from carbon steel and engineered by Danfoss (IGS) this hose end adheres to SAE J1176 standards guaranteeing reliability and durability. Its innovative design promotes maximum uptime making it an essential component in various industrial applications.

End Type 1 is NPTF with a male gender and an end size of 0.375 while the hose dash size is -6 providing versatility in connections.

Supplier Part Number: 06Z-106

Specifications

Brand
Weatherhead® by Danfoss
Compatible Hose ID
0.37 in
Compatible Tube OD
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Hose, MNPT
Connection Type 1
Hose
Connection Type 2
Male NPTF
Construction Style
Crimp
Cut-Off Factor
1.27 in
Dimension Standards
SAE J1176
Dimensions
2.27 in L
End Gender 1
Male
End Size 1
3/8 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
H180, H145R, H190H, H280, H881, H290H, H245L, H190, H400, H290, H421, H039, H039H, EC115, EC215, EC118 and WH004 Series Hoses
Hex Size
11/16 in
Hose Dash Size
06
Inside Diameter
0.26 in
Material
Steel
Material Construction
Carbon Steel
Series
1Z Series
Thread Sealant
Without Thread Sealant
Thread Size
3/8-18
Tube Outside Diameter 1
3/8 in

Product Questions & Answers (3)

Question by: Ray F on Apr 11, 2025, 3:06 PM
got a -6 hose line running in a spot that sees some pretty rough vibration and shock loads, this fitting gonna hold up to that or do I need something different?
Answer by: Customer Support on Apr 13, 2025, 6:52 AM
For shock hazard environments, Eaton Weatherhead actually calls out the H277 or H435 series as the recommended option rather than the Z series. The WeatherGRIP Z is rated for general purpose low and medium pressure hydraulics, so if shock loading is a regular factor in your application, you'd want to look at those other series instead.
Question by: Roy W on May 1, 2025, 6:09 AM
got a -6 hose on the truck, is this the right end for it and what thread is it
Answer by: Customer Support on May 2, 2025, 11:04 AM
The key callouts are right in the sizing. It is a -6 hose dash size hose end with a male NPTF connection, and the end size is 0.375.
Question by: Wade S on Nov 21, 2025, 7:01 PM
Is this the right fitting for general hydraulic work on, say, a tractor?
Answer by: Customer Support on Nov 23, 2025, 6:33 AM
Yeah, this WeatherGRIP Z series hose end is made for general purpose low and medium pressure hydraulics. It's good for situations where you might have shock hazards.
