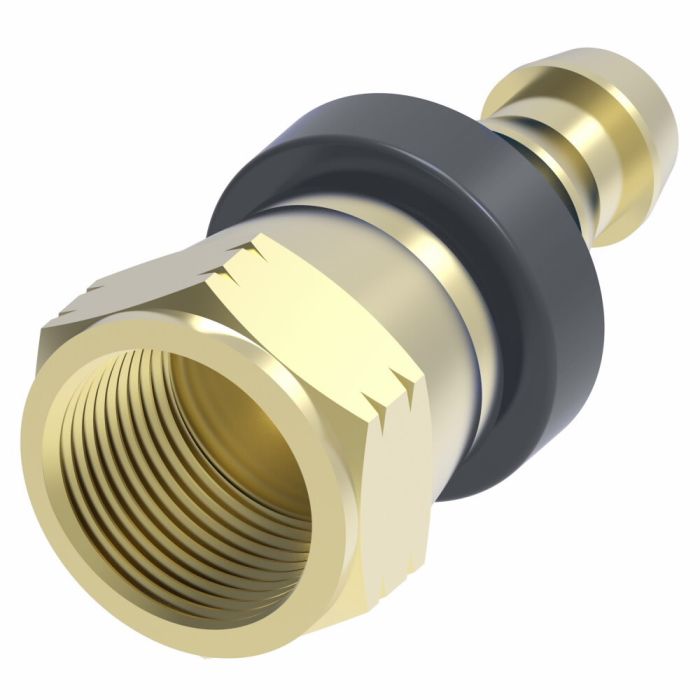

Danfoss / Eaton Hose End 100B Series

Description & Features

The Danfoss / Eaton Hose End 100B Series is engineered for low pressure shop or service air lines and is commonly utilized in low pressure lubrication and oil applications.

Constructed from durable brass this hose end offers reliable performance and longevity. The design ensures a swift and efficient assembly process thereby optimizing production efficiency. Its versatility makes it suitable for a broad spectrum of industrial applications.

Featuring a JIC 37 female swivel connector it supports hose dash size -4 ensuring a secure and robust connection. Not adjustable it is tailored for fixed applications maintaining a steadfast performance.

MPN: IG10004B-604

Supplier Part Number: 10004B-604

Specifications

Brand Weatherhead® by Danfoss	a Dimensions 1.55 in	Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female 37 deg/45 deg Universal Swivel	Construction Style Crimp	Cut-Off Factor 0.8 in	Dimensions 1.55 in L x 0.69 in W x 0.69 in H	End Gender 1 Female	End Size 1 7/16 in	Finish Zinc-Plated	Fitting Type Insert	For Use With H100, H101, H201 and H332 Series Hoses	Hose Dash Size 04	Inside Diameter 0.17 in	Material Brass	Material Construction Brass	nmfc 60	Operating Temperature -40	Series 100B Series	Thread Sealant Without Thread Sealant	Thread Size 7/16-20	Thread Type UNF

Product Questions & Answers (2)

Question by: Chad W on Jun 6, 2025, 9:14 AM

Will this fitting work for oil lines on my old tractor?

Answer by: Customer Support on Jun 7, 2025, 2:06 PM

This hose end is often used in low-pressure lubrication and oil applications, so it should be suitable for your tractor's oil lines, provided they operate at low pressure.

Question by: Rick B on Feb 9, 2026, 9:02 AM

got an air hose in the shop, low pressure stuff. is this 100B hose end meant for that kind of line?

Answer by: Customer Support on Feb 11, 2026, 8:23 AM

For low pressure shop or service air lines, the 100B Series hose end is a common fit, and it is also often used on low pressure lube and oil lines.
