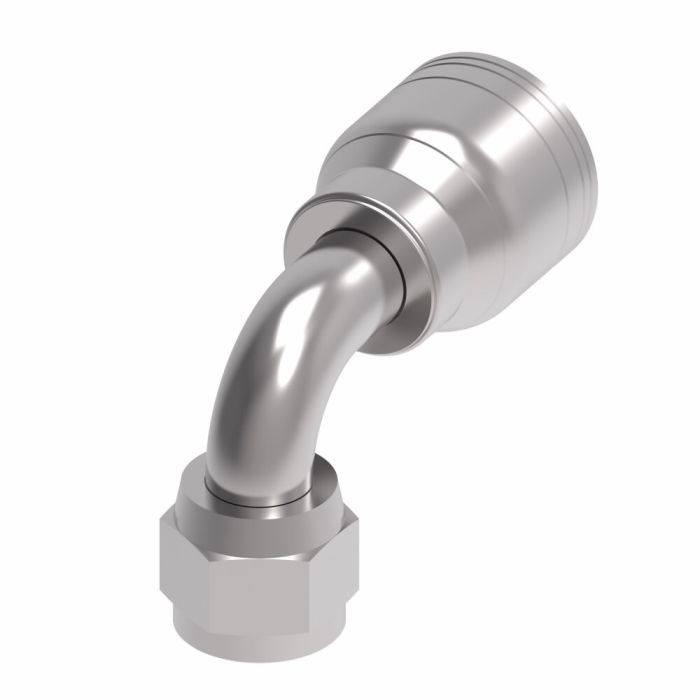

WeatherGRIP Z series hose end

Ask A Question

Description & Features

The WeatherGRIP Z series hose end by Danfoss (IGS) is engineered for general purpose low and medium pressure hydraulics specifically designed to handle shock hazards when used with H277 or H435 hoses.

The innovative design of this hose end ensures peak performance and durability significantly extending the life of hose assemblies. Its Dura-Kote plating provides enhanced corrosion resistance maintaining integrity even in demanding environments. This product complies with SAE J1176 certifications underscoring its reliability and quality.

Constructed from carbon steel this component features a 0.875 JIC 37 female end and an overall product width of 1.39 inches. The end types include a female JIC 37 and a line/hose/tube connection making it versatile for various industrial applications.

Supplier Part Number: 10Z-670

Specifications

Brand
Weatherhead® by Danfoss
Compatible Hose ID
0.63 in
Compatible Tube OD
0.63 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
1.547 in
Dimension Standards
SAE J1176
Drop Dimensions
1.19 in
End Gender 1
Female
End Size 1
7/8 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
H180, H145R, H190H, H280, H881, H290H, H245L, H190, H400, H290, H421, H039, H039H, EC115, EC215, EC118 and WH004 Series Hoses
Hex Size
1 x 1 in
Hose Dash Size
10
Inside Diameter
0.45 in
Material
Steel
Material Construction
Carbon Steel
Series
1Z Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Tube Outside Diameter 1
0.63 in

Product Questions & Answers (1)

Question by: Roy M on Jun 30, 2025, 10:52 AM
got a -10 hose in the shop, does this hose end match up with H277 or H435?
Answer by: Customer Support on Jul 1, 2025, 9:24 PM
For general purpose low and medium pressure hydraulic work where shock hazards exist, this Z series hose end is intended to be used with H277 or H435 hose in dash size -10.
